Tube - Round - INFINITubeTW - Standard Modulus - Twill - Size 1 - 0.875 x 0.935 x 72 Inch
P/N
45001
0.875" ID Carbon Fiber Tube ◾ INFINITubeTW Size 1 ◾ Fabric Finish Provides An Ideal Machining Surface
-
Quick Shipping!
We generally ship within 24 hours on business days. Expedited services are available. If you have a critical deadline, call us to verify the inventory and shipping possibilities at (801) 566-3402. -
Sales Tax
Rock West Composites collects sales tax on orders shipped to addresses/states in the United States in which we are required to do so by state guidelines. Tax is calculated according to the state’s guidelines and regulations regarding Shipping, Services, and other non-product related items. We do not collect sales tax for all states. It should not be implied that tax is not due on one’s purchase because we do not collect a tax. You may be responsible for state and local sales/use taxes when filing your returns. Please check your local sales tax laws. Please contact Customer Service to set up a reseller or otherwise tax-exempt account. -
High Volume Discounts:
If you are interested in volume discounts beyond the quantities listed on our website, please inquire with us directly at (801) 566-3402.
- 1-9 $89.99
- 10-49 $80.79
- 50-99 $76.59
- 100+ $69.39
-
Quick Shipping!
We generally ship within 24 hours on business days. Expedited services are available. If you have a critical deadline, call us to verify the inventory and shipping possibilities at (801) 566-3402. -
Sales Tax
Rock West Composites collects sales tax on orders shipped to addresses/states in the United States in which we are required to do so by state guidelines. Tax is calculated according to the state’s guidelines and regulations regarding Shipping, Services, and other non-product related items. We do not collect sales tax for all states. It should not be implied that tax is not due on one’s purchase because we do not collect a tax. You may be responsible for state and local sales/use taxes when filing your returns. Please check your local sales tax laws. Please contact Customer Service to set up a reseller or otherwise tax-exempt account. -
High Volume Discounts:
If you are interested in volume discounts beyond the quantities listed on our website, please inquire with us directly at (801) 566-3402.
Features & Benefits

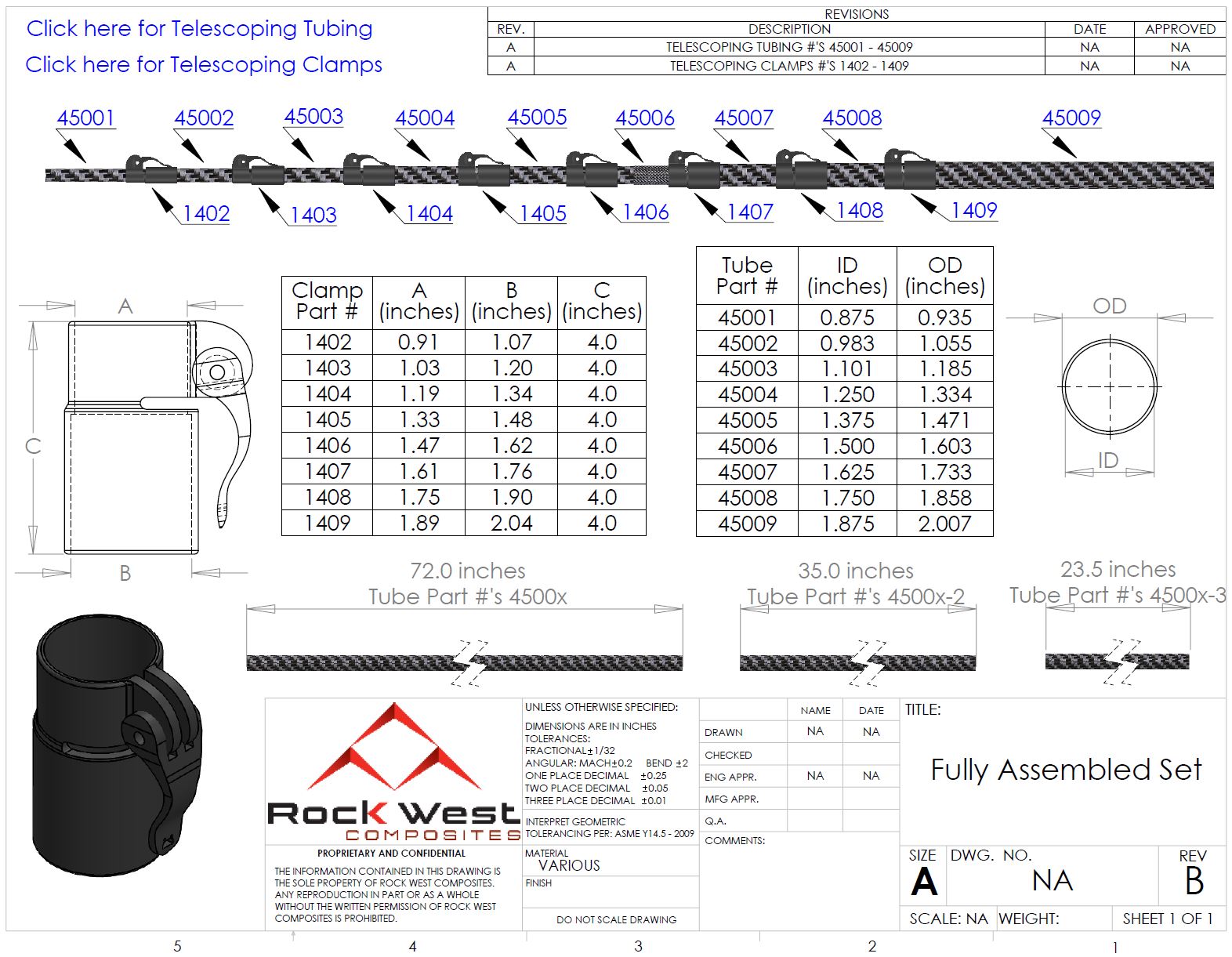

Drawing & Animated GIF of INFINITubeTW Size 1
- (A): INFINITubeTW Size 1
- (B): INFINITubeTW Size 2
- (C): One layer of low friction tape
- Clamp 1402 bonds to INFINITubeTW Size 2
- (A): INFINITubeTW Size 1
- (B): INFINITubeTW Size 2
- (C): One layer of low friction tape
- Clamp 1402 bonds to INFINITubeTW Size 2
How to Build Your Own Flip Lever Clamp System
Additional Information
| P/N | 45001 |
|---|---|
| Space Flight Ready | No |
| Traceability Included | No |
| Inside Dimension | 0.875000 |
| Outside Dimension | 0.935000 |
| Application | Telescoping |
| OD | 0.935000 |
| Wall | 0.030000 |
| Length | 72 |
| Tensile Modulus (Stiffness), msi | 12.460000 |
| WT. | 0.340000 |
| Materials | Standard Modulus Carbon |
| HTS - Harmonized Tariff Code | 6815.13.0000 |
| Telescoping Class | INFINITubeTW - Flip Lever Clamp |
| Surface Finish (exterior) | Cello Wrap Gloss |
Technical Data
|
Theoretical Data |
||
|
SKU: 45001 Rev D |
||
| Ftu-Lengthwise | 100 | ksi |
| Tension Strength | 8.3 | k-lb |
| Fcu-Lengthwise | 69 | ksi |
| Compression Strength | 5.7 | k-lb |
| Flexure Strength | 69 | ksi |
| Internal Pressure | 420 | psi |
| Tension Modulus | 11.2 | Msi |
| Compression Modulus | 75.2 | Msi |
|
As Tested Data |
||
|
SKU: 45001 Rev D |
||
| Ftu-Lengthwise | N/A | ksi |
| Tension Strength | N/A | k-lb |
| Fcu-Lengthwise | N/A | ksi |
| Compression Strength | N/A | k-lb |
| Flexure Strength | N/A | ksi |
| Internal Pressure | N/A | psi |
| Tension Modulus | N/A | Msi |
| Compression Modulus | N/A | Msi |
*ALL data in this table provided as reference only. Rock West does not guarantee values presented herein and requires that physical testing & validation be performed by purchaser prior to product assembly or use.
Layup Orientation
|
SKU's: 45001 Rev D |
||
| Ply # | Orientation | Location |
| 1 | 0 | Inside |
| 2 | 0 | ↓ |
| 3 | 90 | |
| 4 | 0/90 | Outside |
- 0° Fibers maximize bending stiffness. Consider bending the tube over your knee.
- 45° Fibers maximize torsional stiffness. Typically plied together in an opposing manner, i.e. ±45°. Consider twisting the tube like a vehicle's driveshaft.
- 90° Fibers maximize crushing stiffness and generally assist in overall tube strength. Consider laying the tube on the ground and stepping on it.
