Tube - Unidirectional - Bicycle - Tapered - Chain Stay/Seat Stay - 0.51/0.62 x 0.76/0.87 x 20 Inch
Unidirectional Carbon Fiber Tube ◾ Great for Bending & Compression
-
Quick Shipping!
We generally ship within 24 hours on business days. Expedited services are available. If you have a critical deadline, call us to verify the inventory and shipping possibilities at (801) 566-3402. -
Sales Tax
Rock West Composites collects sales tax on orders shipped to addresses/states in the United States in which we are required to do so by state guidelines. Tax is calculated according to the state’s guidelines and regulations regarding Shipping, Services, and other non-product related items. We do not collect sales tax for all states. It should not be implied that tax is not due on one’s purchase because we do not collect a tax. You may be responsible for state and local sales/use taxes when filing your returns. Please check your local sales tax laws. Please contact Customer Service to set up a reseller or otherwise tax-exempt account. -
High Volume Discounts:
If you are interested in volume discounts beyond the quantities listed on our website, please inquire with us directly at (801) 566-3402.
- 1-9 $70.99
- 10-49 $68.79
- 50-99 $59.59
- 100+ $56.25
-
Quick Shipping!
We generally ship within 24 hours on business days. Expedited services are available. If you have a critical deadline, call us to verify the inventory and shipping possibilities at (801) 566-3402. -
Sales Tax
Rock West Composites collects sales tax on orders shipped to addresses/states in the United States in which we are required to do so by state guidelines. Tax is calculated according to the state’s guidelines and regulations regarding Shipping, Services, and other non-product related items. We do not collect sales tax for all states. It should not be implied that tax is not due on one’s purchase because we do not collect a tax. You may be responsible for state and local sales/use taxes when filing your returns. Please check your local sales tax laws. Please contact Customer Service to set up a reseller or otherwise tax-exempt account. -
High Volume Discounts:
If you are interested in volume discounts beyond the quantities listed on our website, please inquire with us directly at (801) 566-3402.
Features & Benefits
Roll wrapped tubing is manufactured using multiple layers of prepreg carbon fiber (and if noted, other) materials. In general each layer is about 0.006 inches thick which means that a tube with a wall thickness of 0.060 inches will typically be composed of 9-10 individual layers of carbon fiber. The number of layers (plys) allows us to vary the orientation of the fibers throughout the thickness, creating a high performance, engineered product. Click HERE to learn more about our roll wrapping process.
*Please note, the diagram below shows an outer "0/90" ply however the product you are currently viewing does NOT have this outer twill ply.
*This diagram illustrates a "generic" layup. The SKU being viewed may not have the layup schedule shown in this diagram. To view this SKU's particular layup please check out the "LAYUP ORIENTATION" tab.
Additional Information
| P/N | 45239 |
|---|---|
| Space Flight Ready | No |
| Traceability Included | No |
| Inside Dimension | 0.510000 |
| Outside Dimension | 0.870000 |
| Thickness | 0.000000 |
| Frame Segment | Chain/Seatstay |
| Application | Bicycle |
| OD | 0.870000 |
| Wall | 0.054000 |
| Length | 20 |
| Max Operating Temp (Tg) | 238.000000 |
| WT. | 0.000000 |
| Materials | Standard Modulus Carbon |
| HTS - Harmonized Tariff Code | 6815.13.0000 |
| Surface Finish (exterior) | Sanded Smooth |

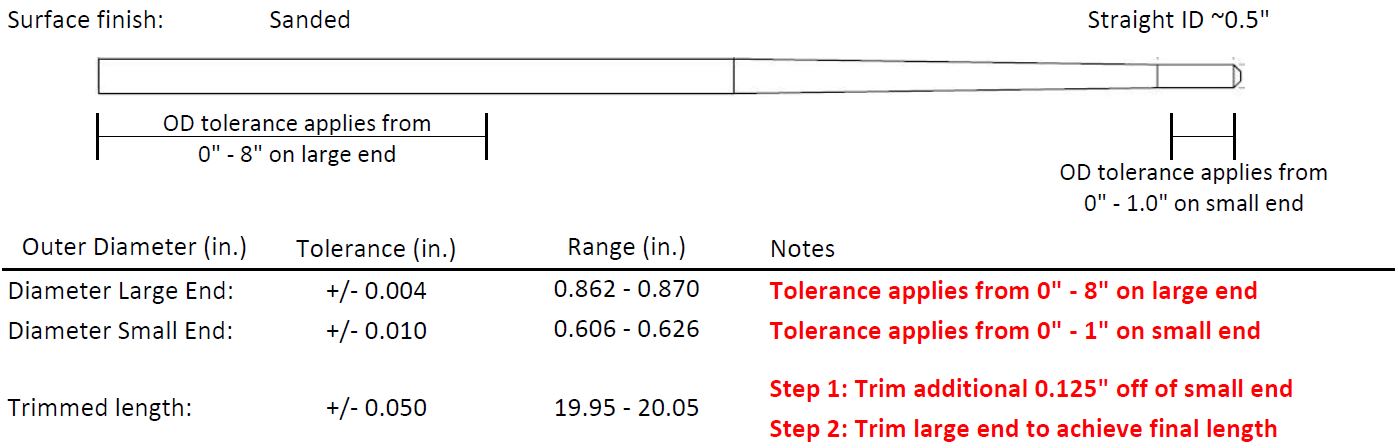

Technical Data
Layup Orientation
|
SKU: 45239 Rev B |
||
| Ply # | Orientation | Location |
| 1 | 0 | Inside |
| 2 | 0 | ↓ |
| 3 | 0 | |
| 4 | 45 | |
| 5 | -45 | |
| 6 | 45 | |
| 7 | -45 | |
| 8 | 0 | |
| 9 | 0 | |
| 10 | 0 | Outside |
- 0° Fibers maximize bending stiffness. Consider bending the tube over your knee.
- 45° Fibers maximize torsional stiffness. Typically plied together in an opposing manner, i.e. ±45°. Consider twisting the tube like a vehicle's driveshaft.
- 90° Fibers maximize crushing stiffness and generally assist in overall tube strength. Consider laying the tube on the ground and stepping on it.
