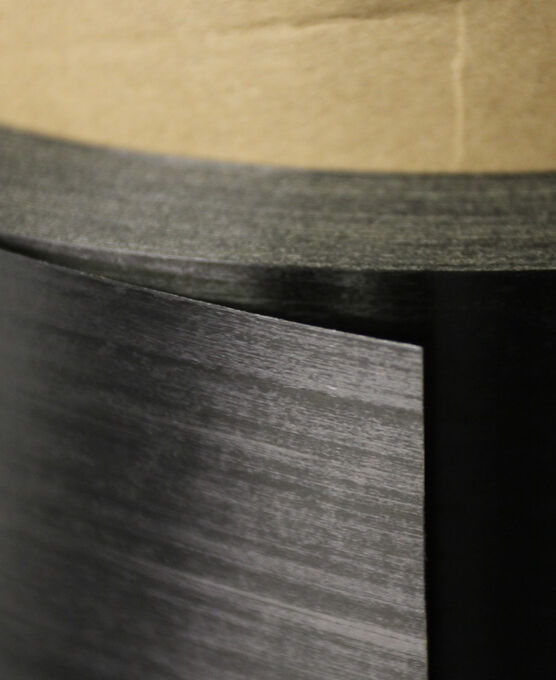

Prepreg - Carbon Fiber - 0.006" Thick - Standard Modulus - Unidirectional (227 gsm OAW) - 250F Resin - Sold by the Linear Yard

productname image number 0
productname image number 0
P/N: 14002-LYD
Available Now: 1

LYD. x Roll Width ◾ Provided In Continuous Length

P/N: 14002-LYD
Available Now: 1
1
$49.99
2 - 4
$47.79
5 - 9
$45.59
10 +
$43.39
Estimated lead time for quantities greater than what is Available Now is expected to be between 2 and 4 weeks.
If there is an Available Now quantity listed above, it indicates our quantity in stock. Orders placed today for this quantity or less are expected to ship the next business day.
Efficient, Clean & Easy to Use - Full Rolls Available
Prepreg - Carbon Fiber - 0.006" Thick - Standard Modulus - Unidirectional (227 gsm OAW) - 250F Resin - Sold by the Linear Yard

You may also need

Additional Information

P/N 14002-LYD
Brand Rock West Composites
Cure Ply Thickness (CPT) 0.006"
Exportable Yes
Fiber Areal Weight 150 GSM
Fiber Type (brand) T700 (Toray)
Materials Standard Modulus Carbon
Prepreg Overall Weight 227 GSM
Recommended Cure Temperature 250F (121C)
Resin Content 35%
Resin System Propreg 250F
Shelf Life @ 0°F / 40°F / 70°F 6 Mo / 90 Days / 21 Days
Shipping Weight per Unit (includes backing paper and or core) .75
Tensile Modulus, msi 36.0
Tensile Strength (ksi) 711.0
Weight 0.46
Width 39.37
