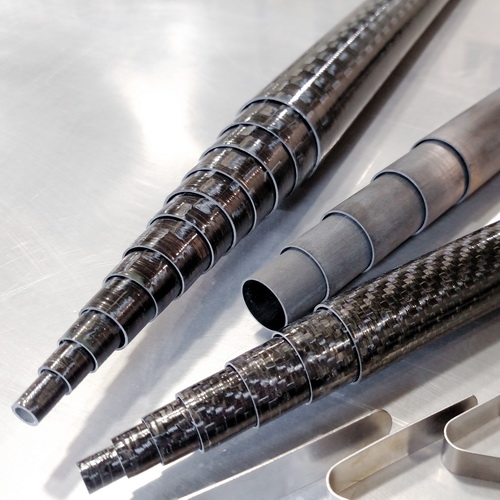

Telescoping Tubes
Rock West Composites proudly offers the most innovative system of telescoping tubing products using round carbon fiber and fiberglass tubing. You can Build Your Own using our assorted Tubes below (Telescoping Tubes) or purchase Fully Assembled Telescoping Tubes. INFINITube is available in three tubing lineups: TW (Tapered Wall); V (Versatile); and UL (Ultra Light). The INFINITube family is the ideal system for creating collapsible and open booms.
Ultralight Telescoping Tubes - Fully Assembled
P/N: ULTRALIGHT_TELESCOPING_TUBES_ASSEMBLED

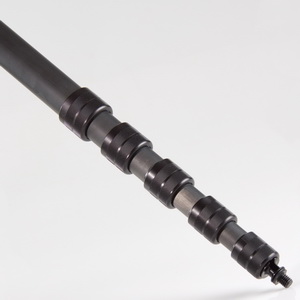

INFINITubeV Telescoping Tubes - Fully Assembled
P/N: INFINITUBEV-FULLY-ASSEMBLED
Tube - Round - INFINITubeV - Intermediate Modulus - Spread Tow - Size 00 - 0.250 X 0.35 X 62 Inch
P/N: 46400-IM Availability: 47
Tube - Round - INFINITubeV - Standard Modulus - Twill Painted Gloss - Size 00 - 0.25 (6.35mm) x 0.352 (8.94mm) x 74 Inch (1880mm) (Globally Sourced)
P/N: 46400-G-DL Availability: 126
Tube - Round - INFINITubeV - Standard Modulus - Twill - Size 00 - 0.250 X 0.352 X 62 Inch
P/N: 46400 Availability: 4
Tube - Round - INFINITubeV - Ultra High Modulus - Unidirectional - Size 00 - 0.250 X 0.355 X 62 Inch
P/N: 46400-UHM-UNI Availability: 4
Tube - Round - INFINITubeV - Standard Modulus - Twill - Size 01 - 0.375 X 0.476 X 62 Inch
P/N: 46401 Availability: 320
Tube - Round - INFINITubeV - Standard Modulus - Twill - Size 01 - 0.375 X 0.476 X 91 Inch - Globally Sourced
P/N: 46401-LONG-G-DL Availability: 181
Tube - Round - INFINITubeV - Standard Modulus - Twill Painted Gloss - Size 01 - 0.375 (9.52mm) x 0.476 (12.1mm) x 74 Inch (1880mm) (Globally Sourced)
P/N: 46401-G-DL Availability: 201
Tube - Round - INFINITubeV - High Modulus - Plain Weave - Size 01 - 0.375 X 0.476 X 62 Inch
P/N: 46401-HM Availability: 4
Tube - Round - INFINITubeV - Standard Modulus - Twill - Size 01 - 0.375 X 0.476 X 91 Inch
P/N: 46401-LONG Availability: 89
Tube - Round - INFINITubeV - Intermediate Modulus - Spread Tow - Size 01 - 0.375 X 0.476 X 62 Inch
P/N: 46401-IM Availability: 2
Tube - Round - INFINITubeV - Intermediate Modulus - Spread Tow - Size 02 - 0.500 X 0.60 X 74 Inch
P/N: 46402-IM Availability: 10
Tube - Round - INFINITubeV - Standard Modulus - Twill Painted Gloss - Size 02 - 0.50 (12.7mm) x 0.601 (15.3mm) x 74 Inch (1880mm) (Globally Sourced)
P/N: 46402-G-DL Availability: 224
Tube - Round - INFINITubeV - Standard Modulus - Twill - Size 02 - 0.500 X 0.604 X 74 Inch
P/N: 46402 Availability: 68
Tube - Round - INFINITubeV - Intermediate Modulus - Spread Tow - Size 03 - 0.625 X 0.727 X 74 Inch
P/N: 46403-IM Availability: 2
Tube - Round - INFINITubeV - Standard Modulus - Twill Painted Gloss - Size 03 - 0.625 (15.88mm) x 0.731 (18.6mm) x 74 Inch (1880mm) (Globally Sourced)
P/N: 46403-G-DL Availability: 70
Tube - Round - INFINITubeV - Standard Modulus - Twill - Size 03 - 0.625 X 0.731 X 74 Inch
P/N: 46403 Availability: 16
Tube - Round - INFINITubeV - High Modulus - Plain Weave - Size 03 - 0.625 X 0.731 X 74 Inch
P/N: 46403-HM Availability: 25
Tube - Round - INFINITubeUL - Standard Modulus - 2x2 Twill Sanded - Size 1 - 0.709 x 0.780 x 80 Inch
P/N: 45434-SM Availability: 6
Tube - Round - INFINITubeUL - Standard Modulus - Unidirectional Sanded - Size 1 - 0.709 x 0.780 x 80 Inch
P/N: 45434 Availability: 76
Tube - Round - INFINITubeUL - Standard Modulus - Unidirectional Sanded - Size 2 - 0.790 x 0.850 x 67 Inch
P/N: 45433 Availability: 102
Tube - Round - INFINITubeUL - Standard Modulus - 2x2 Twill Sanded - Size 2 - 0.790 x 0.850 x 78 Inch
P/N: 45433-SM-LONG Availability: 2
Tube - Round - INFINITubeV - Intermediate Modulus - Spread Tow - Size 04 - 0.750 X 0.85 X 74 Inch
P/N: 46404-IM Availability: 5
Tube - Round - INFINITubeV - High Modulus - Plain Weave - Size 04 - 0.750 X 0.856 X 74 Inch
P/N: 46404-HM Availability: 5
Tube - Round - INFINITubeV - Standard Modulus - Twill - Size 04 - 0.750 X 0.856 X 74 Inch
P/N: 46404 Availability: 11
Tube - Round - INFINITubeV - Standard Modulus - Twill Painted Gloss - Size 04 - 0.75 (19.05mm) x 0.856 (21.7mm) x 74 Inch (1880mm) (Globally Sourced)
P/N: 46404-G-DL Availability: 137
Tube - Filament Wound - Fiberglass - Sanded - INFINITubeV - Size 04 - 0.750 x 0.856 x 12 Inch - - Available up to 108 Inches
P/N: 46404-FWG Availability: 41
Tube - Round - INFINITubeTW - Standard Modulus - Twill - Size 1 - 0.875 x 0.935 x 72 Inch
P/N: 45001 Availability: 45
Tube - Round - INFINITubeUL - Standard Modulus - 2x2 Twill Sanded - Size 3 - 0.900 x 0.960 x 78 Inch
P/N: 45432-SM-LONG Availability: 26
Tube - Round - INFINITubeUL - Standard Modulus - Unidirectional Sanded - Size 3 - 0.900 x 0.960 x 67 Inch
P/N: 45432 Availability: 55
Tube - Round - INFINITubeV - Intermediate Modulus - Spread Tow - Size 05 - 0.875 X 0.981 X 74 Inch
P/N: 46405-IM Availability: 26
Tube - Filament Wound - Fiberglass - Sanded - INFINITubeV - Size 05 - 0.875 x 0.981 x 12 Inch - - Available up to 84 Inches
P/N: 46405-FWG Availability: 38
Tube - Round - INFINITubeV - Standard Modulus - Twill Painted Gloss - Size 05 - 0.875 (22.23mm) x 0.981 (24.9mm) x 74 Inch (1880mm) (Globally Sourced)
P/N: 46405-G-DL Availability: 142
Tube - Round - INFINITubeV - High Modulus - Plain Weave - Size 05 - 0.875 X 0.981 X 74 Inch
P/N: 46405-HM Availability: 23
Tube - Round - INFINITubeV - Standard Modulus - Twill - Size 05 - 0.875 X 0.981 X 74 Inch
P/N: 46405 Availability: 56
Tube - Round - INFINITubeTW - Ultra High Modulus - 1k Plain Weave - Size 02 - 0.983 x 1.052 X 72.0 IN
P/N: 45002-UHM Availability: 1
Tube - Round - INFINITubeTW - Standard Modulus - Twill - Size 2 - 0.983 x 1.055 x 72 Inch
P/N: 45002 Availability: 42
Tube - Round - INFINITubeUL - Standard Modulus - 2x2 Twill Sanded - Size 4 - 1.010 x 1.070 x 78 Inch
P/N: 45431-SM-LONG Availability: 4
Tube - Round - INFINITubeV - Intermediate Modulus - Spread Tow- Size 06 - 1.000 X 1.097 X 74 Inch
P/N: 46406-IM Availability: 42
Tube - Round - INFINITubeV - Standard Modulus - Twill - Size 06 - 1.000 X 1.106 X 74 Inch
P/N: 46406 Availability: 183
Tube - Round - INFINITubeV - Standard Modulus - Twill Painted Gloss - Size 06 - 1.000 (25.4mm) x 1.102 (28mm) x 74 Inch (1880mm) (Globally Sourced)
P/N: 46406-G-DL Availability: 91
Tube - Round - INFINITubeV - High Modulus - Plain Weave - Size 06 - 1.000 X 1.106 X 74 Inch
P/N: 46406-HM Availability: 69
Tube - Filament Wound - Standard Modulus - Sanded - INFINITubeV - 1.00 x 1.106 x 12 Inch - - Available up to 120 Inches
P/N: 46406-FWC Availability: 27
Tube - Filament Wound - Fiberglass - Sanded - INFINITubeV - 1.00 x 1.106 x 12 Inch - - Available up to 120 Inches
P/N: 46406-FWG Availability: 46
Tube - Round - INFINITubeUL - Standard Modulus - Unidirectional Sanded - Size 5 - 1.120 x 1.180 x 67 Inch
P/N: 45430 Availability: 21
Tube - Round - INFINITubeUL - Standard Modulus - 2x2 Twill Sanded - Size 5 - 1.120 x 1.180 x 78 Inch
P/N: 45430-SM-LONG Availability: 37
Tube - Round - INFINITubeTW - Standard Modulus - Twill - Size 3 - 1.101 x 1.185 x 72 Inch
P/N: 45003 Availability: 13
Tube - Round - INFINITubeV - Intermediate Modulus - Spread Tow - Size 07 - 1.125 X 1.22 X 74 Inch
P/N: 46407-IM Availability: 7
Tube - Filament Wound - Standard Modulus - Sanded - INFINITubeV - 1.125 x 1.231 x 12 Inch - - Available up to 150 Inches
P/N: 46407-FWC Availability: 301
