Filament Wound Carbon Fiber Tubes

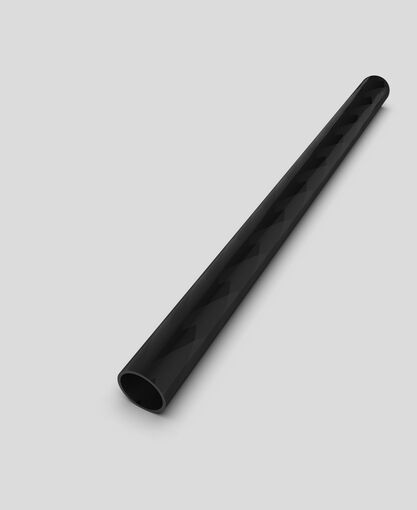

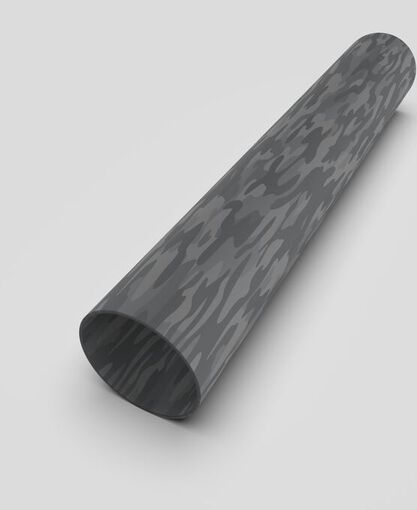

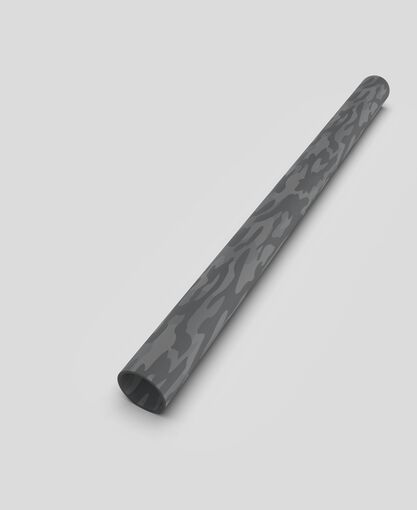

Filament wound tubes have very long continuous fibers, which add to the strength and stiffness of the structure. The manufacturing process allows for longer-length carbon fiber tubes than our standard roll-wrapping process. If you are looking for a higher temperature Tg, we can build almost all of these tubes with a different resin system that is good for up to 400F. Contact us for a quote! The angles used in the winding process make the final product an excellent choice for torsion applications. And for high volume orders, it can be a very economical solution. Available in a gloss finish, a sanded matte finish, or with a twill-over wrap.

169 item(s)
Tube Shape
Inside Dimension
Min ID
Max ID
Outside Dimension
Min
Max
Materials
Wall
Pattern
Tensile Modulus Msi
Max Operating Temp (Tg)
Finish
Space Flight Ready
Traceability Included
Clearance
View:
169 item(s)
Sort By:
P/N
Inside Dimension
Outside Dimension
Wall Thickness
Length (max continuous)
Pattern
Materials
Price
35135-S
0.486
0.558
0.036
72.000
Filament Wound - Sanded
Standard Modulus Carbon
$24.99 - $149.94
30067-IM-S
0.490
0.560
0.040
72.000
Filament Wound - Sanded
Intermediate Modulus Carbon
$34.99 - $209.94
30067-IM-U
0.490
0.590
0.050
72.000
Filament Wound - Unsanded
Intermediate Modulus Carbon
$32.99 - $197.94
35135-U
0.490
0.600
0.060
72.000
Filament Wound - Unsanded
Standard Modulus Carbon
$23.99 - $143.94
35137-S
0.500
0.620
0.060
96.000
Filament Wound - Sanded
Standard Modulus Carbon
$25.99 - $207.92
35137-U
0.500
0.670
0.090
96.000
Filament Wound - Unsanded
Standard Modulus Carbon
$24.99 - $199.92
30066-IM-S
0.600
0.670
0.050
84.000
Filament Wound - Sanded
Intermediate Modulus Carbon
$43.99 - $307.93
35134-S
0.600
0.700
0.050
84.000
Filament Wound - Sanded
Standard Modulus Carbon
$27.99 - $195.93
30066-IM-U
0.600
0.700
0.050
84.000
Filament Wound - Unsanded
Intermediate Modulus Carbon
$39.99 - $279.93
35134-U
0.600
0.710
0.050
84.000
Filament Wound - Unsanded
Standard Modulus Carbon
$25.99 - $181.93
35044-S
0.620
0.750
0.060
108.000
Filament Wound - Sanded
Standard Modulus Carbon
$29.99 - $269.91
35400-S
0.600
0.750
0.070
84.000
Filament Wound - Sanded
Standard Modulus Carbon
$37.99 - $265.93
35044-S-L11.14-BLOWOUT
0.625
0.750
0.060
11.140
Filament Wound - Sanded
Standard Modulus Carbon
$9.99
35142-S
0.500
0.750
0.120
96.000
Filament Wound - Sanded
Standard Modulus Carbon
$46.99 - $375.92
35400-U
0.600
0.770
0.080
84.000
Filament Wound - Unsanded
Standard Modulus Carbon
$35.99 - $251.93
35142-U
0.500
0.780
0.150
96.000
Filament Wound - Unsanded
Standard Modulus Carbon
$44.99 - $359.92
35044-U
0.625
0.810
0.092
108.000
Filament Wound - Unsanded
Standard Modulus Carbon
$27.99 - $251.91
35045-S
0.620
0.880
0.120
108.000
Filament Wound - Sanded
Standard Modulus Carbon
$49.99 - $449.91
35046-S
0.750
0.880
0.060
120.000
Filament Wound - Sanded
Standard Modulus Carbon
$32.99 - $329.90
35045-U
0.620
0.910
0.140
108.000
Filament Wound - Unsanded
Standard Modulus Carbon
$46.99 - $422.91
35046-U
0.750
0.910
0.080
120.000
Filament Wound - Unsanded
Standard Modulus Carbon
$29.99 - $299.90
35024-HM-U
0.750
0.950
0.100
96.000
Filament Wound - Unsanded
High Modulus Carbon
$90.99 - $727.92
35175-S
0.880
0.960
0.040
84.000
Filament Wound - Sanded
Standard Modulus Carbon
$23.99 - $167.93
35023-HM-U
0.620
0.960
0.170
108.000
Filament Wound - Unsanded
High Modulus Carbon
$122.99 - $1,106.91
35175-U
0.880
1.000
0.060
84.000
Filament Wound - Unsanded
Standard Modulus Carbon
$24.99 - $174.93
35138-S
0.880
1.000
0.060
84.000
Filament Wound - Sanded
Standard Modulus Carbon
$42.99 - $300.93
35047-S
0.750
1.000
0.120
120.000
Filament Wound - Sanded
Standard Modulus Carbon
$51.99 - $519.90
35138-U
0.880
1.040
0.080
84.000
Filament Wound - Unsanded
Standard Modulus Carbon
$38.99 - $272.93
35047-U
0.750
1.050
0.150
120.000
Filament Wound - Unsanded
Standard Modulus Carbon
$49.99 - $499.90
35163-S
0.880
1.070
0.100
84.000
Filament Wound - Sanded
Standard Modulus Carbon
$51.99 - $363.93
35022-HM-U
0.940
1.100
0.080
96.000
Filament Wound - Unsanded
High Modulus Carbon
$80.99 - $647.92
35163-U
0.880
1.100
0.110
84.000
Filament Wound - Unsanded
Standard Modulus Carbon
$46.99 - $328.93
35041-S
0.940
1.100
0.100
84.000
Filament Wound - Sanded
Standard Modulus Carbon
$64.99 - $454.93
46406-FWC
1.000
1.110
0.050
120.000
Filament Wound - Sanded
Standard Modulus Carbon
$42.99 - $429.90
35048-S
1.000
1.120
0.060
120.000
Filament Wound - Sanded
Standard Modulus Carbon
$42.99 - $429.90
35143-S
0.880
1.120
0.120
84.000
Filament Wound - Sanded
Standard Modulus Carbon
$54.99 - $384.93
35041-U
0.940
1.120
0.100
84.000
Filament Wound - Unsanded
Standard Modulus Carbon
$62.99 - $440.93
35048-OW
1.000
1.140
0.070
120.000
3k 2X2 Twill Weave
Standard Modulus Carbon
$67.99 - $679.90
35020-IM-S
1.070
1.150
0.040
72.000
Filament Wound - Sanded
Intermediate Modulus Carbon
$46.99 - $281.94
35020-IM-U
1.075
1.155
0.040
72.000
Filament Wound - Unsanded
Intermediate Modulus Carbon
$44.99 - $269.94
35021-S
1.070
1.160
0.040
84.000
Filament Wound - Sanded
Standard Modulus Carbon
$35.99 - $251.93
35143-U
0.880
1.160
0.150
84.000
Filament Wound - Unsanded
Standard Modulus Carbon
$51.99 - $363.93
35161-U
0.500
1.160
0.330
96.000
Filament Wound - Unsanded
Standard Modulus Carbon
$132.99 - $1,063.92
35048-U
1.000
1.170
0.090
120.000
Filament Wound - Unsanded
Standard Modulus Carbon
$38.99 - $389.90
35032-S
1.070
1.180
0.060
108.000
Filament Wound - Sanded
Standard Modulus Carbon
$38.99 - $311.92
35032-OW
1.070
1.180
0.050
96.000
3k 2X2 Twill Weave
Standard Modulus Carbon
$62.99 - $503.92
35021-U
1.070
1.190
0.060
84.000
Filament Wound - Unsanded
Standard Modulus Carbon
$33.99 - $237.93
35032-U
1.070
1.220
0.070
108.000
Filament Wound - Unsanded
Standard Modulus Carbon
$36.99 - $295.92
46407-FWC
1.120
1.230
0.050
150.000
Filament Wound - Sanded
Standard Modulus Carbon
$46.99 - $563.88
35139-S
1.120
1.250
0.060
96.000
Filament Wound - Sanded
Standard Modulus Carbon
$50.99 - $407.92
35049-S
1.000
1.250
0.120
120.000
Filament Wound - Sanded
Standard Modulus Carbon
$62.99 - $629.90
35132-S
1.150
1.260
0.060
132.000
Filament Wound - Sanded
Standard Modulus Carbon
$49.99 - $549.89
35139-U
1.120
1.270
0.070
96.000
Filament Wound - Unsanded
Standard Modulus Carbon
$48.99 - $391.92
30065-S
1.180
1.270
0.060
132.000
Filament Wound - Sanded
Standard Modulus Carbon
$35.99 - $395.89
35049-U
1.000
1.280
0.140
120.000
Filament Wound - Unsanded
Standard Modulus Carbon
$57.99 - $579.90
30064-IM-S
1.150
1.280
0.070
132.000
Filament Wound - Sanded
Intermediate Modulus Carbon
$52.99 - $582.89
35133-IM-S
1.180
1.300
0.060
132.000
Filament Wound - Sanded
Intermediate Modulus Carbon
$48.99 - $538.89
30065-U
1.180
1.300
0.060
132.000
Filament Wound - Unsanded
Standard Modulus Carbon
$34.99 - $384.89
35132-U
1.150
1.300
0.070
132.000
Filament Wound - Unsanded
Standard Modulus Carbon
$46.99 - $516.89
30064-IM-U
1.150
1.310
0.080
132.000
Filament Wound - Unsanded
Intermediate Modulus Carbon
$50.99 - $560.89
