Push Button Ratchet Joints

Simplify your design and add versatility by using push button ratchet joints. They are easy to use, with a positive engagement lock from 0 degrees to a positive 198 or 216 degrees in 18 degree increments. They are also made of durable and impact resistant plastic and are capable of holding a surprising amount of weight. Featuring a thru-hole (0.20") on each leg for added security or quick release from tubing if needed. Various sizes available to fit tubing ranging from 0.625" to 1.00" in outer diameters. We recommend you bond the tube of choice using any of the adhesives listed on our website.
8 item(s)
Outside Dimension
Min
Max
Complete Panel Thickness
Min
Max
Tensile Modulus Msi
Min
Max
View:
8 item(s)
Sort By:

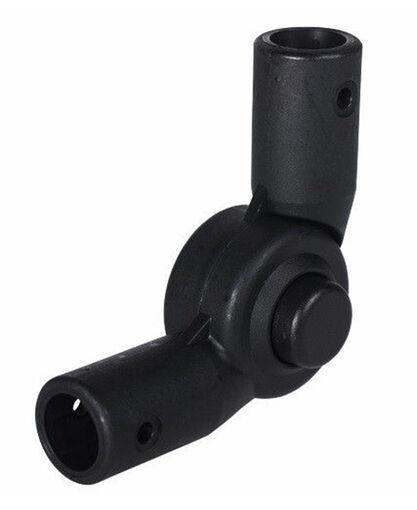

Push Button Ratchet Joint - 198 degrees / 18 deg increment - 0.75 inch Tube

Push Button Ratchet Joint - 198 degrees / 18 deg increment - 0.75 inch Tube

P/N: 464090 Availability: 482

$19.13
Push Button Ratchet Joint - 216 degrees / 18 deg increment - 0.63 inch Tube

Push Button Ratchet Joint - 216 degrees / 18 deg increment - 0.63 inch Tube

P/N: 463090 Availability: 57

$19.13

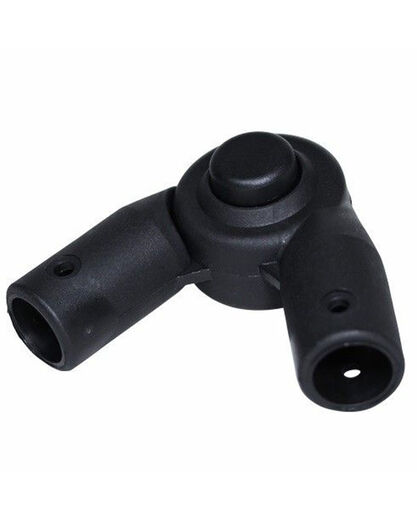

Push Button Ratchet Joint - 198 degrees / 18 deg increment - 0.80 inch Tube

Push Button Ratchet Joint - 198 degrees / 18 deg increment - 0.80 inch Tube

P/N: 465090 Availability: 308

$19.99

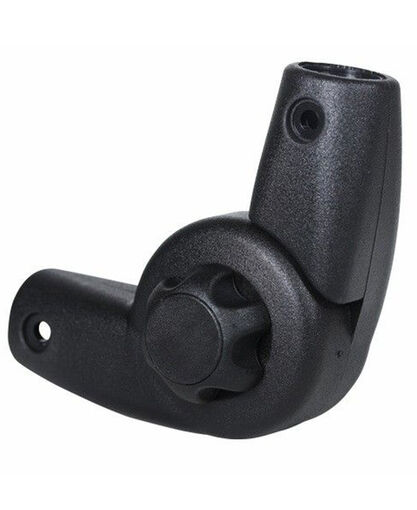

Twist Button Ratchet Joint - 216 degrees / 18 deg increment - 0.80 inch tube

Twist Button Ratchet Joint - 216 degrees / 18 deg increment - 0.80 inch tube

P/N: 424090 Availability: 382

$24.83

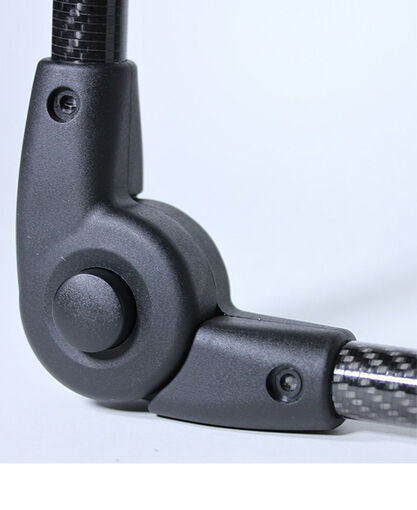

Push Button Ratchet Joint - 216 degrees / 18 deg increment - 0.88 inch Tube

Push Button Ratchet Joint - 216 degrees / 18 deg increment - 0.88 inch Tube

P/N: 859090 Availability: 2286

$25.16

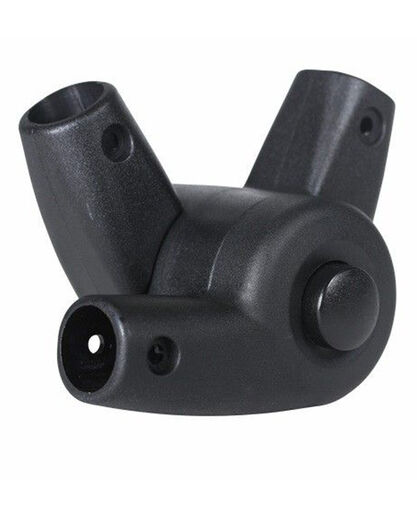

Push Button Ratchet Joint - 3-Way - 215 degrees / 18 deg increment - 0.88 inch OD tube

Push Button Ratchet Joint - 3-Way - 215 degrees / 18 deg increment - 0.88 inch OD tube

P/N: G191090 Availability: 173

$31.72

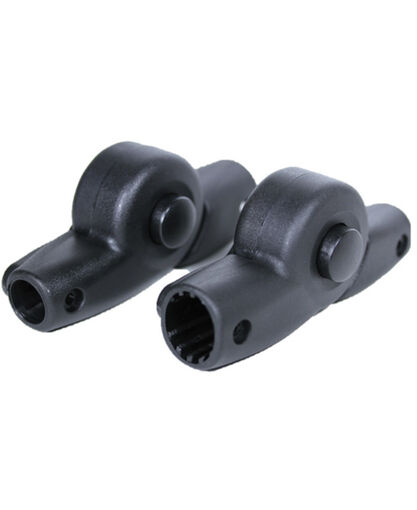

Push Button Ratchet Joint - Opposing Pair - 216 degrees / 18 deg increment - 0.995 / 0.80 inch Tube

Push Button Ratchet Joint - Opposing Pair - 216 degrees / 18 deg increment - 0.995 / 0.80 inch Tube

P/N: 555090 Availability: 641

$32.00
Bonding - Rock West Labor Only Bonding of Tube Ferrule - One Side Bonding - Includes Adhesive Does Not Include Hole Drilling (1-2 week lead time)

Bonding - Rock West Labor Only Bonding of Tube Ferrule - One Side Bonding - Includes Adhesive Does Not Include Hole Drilling (1-2 week lead time)

P/N: BONDING-TUBE-FERRULE

$44.99
