Foam Core Sandwich Panels

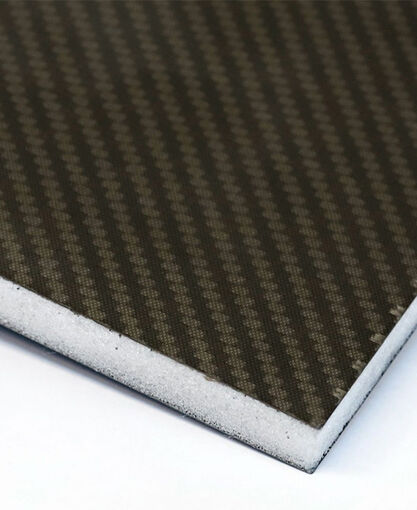

When weight savings are critical, strength is a requirement, and quick delivery a must, these foam core sandwich panels offer huge advantages over solid composite plates. They are constructed of thin composite laminates, also referred to as "skins," and a closed-cell rigid polymethacrylimide (PMI) core bonded between the two skins. Sandwich core composites offer higher strength-to-weight ratios than solid composite laminates alone.
46 item(s)
Materials
Plate Thickness
Min
Max
Pattern
Plate/Panel Size
Tensile Modulus Msi
Skin Thickness
Core Thickness
Complete Panel Thickness
Plate Finish
Tensile Strength (Ksi)
Core Material
Skin Material
View:
46 item(s)
Sort By:
P/N
Plate/Panel Thickness
Plate/Panel Size
Core Thickness
Skin thickness
Materials
Price
1107-3302-24
0.125
24" x 48" / 609.6mm x 1219.2mm
0.085
0.020
Carbon Fiber Skins / Foam Core
$926.99
1107-3302-50100
0.125
50" x 100" / 1270mm x 2540mm
0.085
0.020
Carbon Fiber Skins / Foam Core
$3,051.99
1107-3302-sample
0.125
~2" x ~6" / Sample
0.085
0.020
Carbon Fiber Skins / Foam Core
$15.99
1107-3302-22
0.125
24" x 24" / 609.6mm x 609.6mm
0.085
0.020
Carbon Fiber Skins / Foam Core
$506.99
1107-3302-44
0.125
48" x 48" / 1219.2mm x 1219.2mm
0.085
0.020
Carbon Fiber Skins / Foam Core
$1,689.99
1107-3302-11
0.125
12" x 12" / 304.8mm x 304.8 mm
0.090
0.020
Carbon Fiber Skins / Foam Core
$138.99
CFTFS5-MG-DL
0.197 inch / 5mm - (1.0mm skins)
15.748" x 19.685" / 400mm x 500mm
0.118
0.039
Foam
$109.99
1117-3302-11
0.250
12" x 12" / 304.8mm x 304.8 mm
0.210
0.020
Carbon Fiber Skins / Foam Core
$138.99
1117-3302-SAMPLE
0.250
~2" x ~6" / Sample
0.210
0.020
Carbon Fiber Skins / Foam Core
$15.99
1117-3302-24
0.250
24" x 48" / 609.6mm x 1219.2mm
0.210
0.020
Carbon Fiber Skins / Foam Core
$929.99
1117-3302-22
0.250
24" x 24" / 609.6mm x 609.6mm
0.210
0.020
Carbon Fiber Skins / Foam Core
$507.99
1117-3302-50100
0.250
50" x 100" / 1270mm x 2540mm
0.210
0.020
Carbon Fiber Skins / Foam Core
$3,062.99
1117-3302-44
0.250
48" x 48" / 1219.2mm x 1219.2mm
0.210
0.020
Carbon Fiber Skins / Foam Core
$1,695.99
CFTFS10-MG-DL
0.394 inch / 10mm - (1.0mm skins)
15.748" x 19.685" / 400mm x 500mm
0.315
0.039
Foam
$109.99
CFTFS10-FULL-MG-DL
0.394 inch / 10mm - (1.0mm skins)
39" x 59" / 1000mm x 1500mm
0.315
0.039
Foam
$818.99
1137-3302-22
0.375
24" x 24" / 609.6mm x 609.6mm
0.335
0.020
Carbon Fiber Skins / Foam Core
$530.99
1137-3302-24
0.375
24" x 48" / 609.6mm x 1219.2mm
0.335
0.020
Carbon Fiber Skins / Foam Core
$971.99
1137-3302-50100
0.375
50" x 100" / 1270mm x 2540mm
0.335
0.020
Carbon Fiber Skins / Foam Core
$3,202.99
1137-3302-SAMPLE
0.375
~2" x ~6" / Sample
0.335
0.020
Carbon Fiber Skins / Foam Core
$15.99
1137-3302-44
0.375
48" x 48" / 1219.2mm x 1219.2mm
0.335
0.020
Carbon Fiber Skins / Foam Core
$1,772.99
1137-3302-11
0.375
12" x 12" / 304.8mm x 304.8 mm
0.335
0.020
Carbon Fiber Skins / Foam Core
$144.99
74039-4896
0.500
48" x 96" / 1219.2mm x 2438.4mm
0.430
0.035
Fiberglass & Polyester Foam
$369.99
1147-3302-22
0.500
24" x 24" / 609.6mm x 609.6mm
0.460
0.020
Carbon Fiber Skins / Foam Core
$543.99
1147-3302-44
0.500
48" x 48" / 1219.2mm x 1219.2mm
0.460
0.020
Carbon Fiber Skins / Foam Core
$1,816.99
1147-3302-sample
0.500
~2" x ~6" / Sample
0.460
0.020
Carbon Fiber Skins / Foam Core
$15.99
1147-3302-11
0.500
12" x 12" / 304.8mm x 304.8 mm
0.460
0.020
Carbon Fiber Skins / Foam Core
$148.99
1147-3302-24
0.500
24" x 48" / 609.6mm x 1219.2mm
0.460
0.020
Carbon Fiber Skins / Foam Core
$995.99
1147-3302-50100
0.500
50" x 100" / 1270mm x 2540mm
0.460
0.020
Carbon Fiber Skins / Foam Core
$3,282.99
74040-4896
0.750
48" x 96" / 1219.2mm x 2438.4mm
0.680
0.035
Fiberglass & Polyester Foam
$379.99
1167-3302-24
0.750
24" x 48" / 609.6mm x 1219.2mm
0.710
0.020
Carbon Fiber Skins / Foam Core
$1,108.99
1167-3302-22
0.750
24" x 24" / 609.6mm x 609.6mm
0.710
0.020
Carbon Fiber Skins / Foam Core
$604.99
1167-3302-50100
0.750
50" x 100" / 1270mm x 2540mm
0.710
0.020
Carbon Fiber Skins / Foam Core
$3,657.99
1167-3302-11
0.750
12" x 12" / 304.8mm x 304.8 mm
0.710
0.020
Carbon Fiber Skins / Foam Core
$164.99
1167-3302-11-BLEM
0.750
12" x 12" / 304.8mm x 304.8 mm
0.710
0.020
Carbon Fiber Skins / Foam Core
$442.99
1167-3302-44-BLEM
0.750
48" x 48" / 1219.2mm x 1219.2mm
0.710
0.020
Carbon Fiber Skins / Foam Core
$1,654.99
1167-3302-sample
0.750
~2" x ~6" / Sample
0.710
0.020
Carbon Fiber Skins / Foam Core
$15.99
1167-3302-44
0.750
48" x 48" / 1219.2mm x 1219.2mm
0.710
0.020
Carbon Fiber Skins / Foam Core
$2,023.99
1187-3302-sample
1.000
~2" x ~6" / Sample
0.960
0.020
Carbon Fiber Skins / Foam Core
$15.99
1187-3302-22
1.000
24" x 24" / 609.6mm x 609.6mm
0.960
0.020
Carbon Fiber Skins / Foam Core
$658.99
1187-3302-50100
1.000
50" x 100" / 1270mm x 2540mm
0.960
0.020
Carbon Fiber Skins / Foam Core
$3,991.99
1187-3302-11
1.000
12" x 12" / 304.8mm x 304.8 mm
0.960
0.020
Carbon Fiber Skins / Foam Core
$179.99
1187-3302-44
1.000
48" x 48" / 1219.2mm x 1219.2mm
0.960
0.020
Carbon Fiber Skins / Foam Core
$2,206.99
1187-3302-24
1.000
24" x 48" / 609.6mm x 1219.2mm
0.960
0.020
Carbon Fiber Skins / Foam Core
$1,208.99
74042-4896
1.500
48" x 96" / 1219.2mm x 2438.4mm
1.430
0.035
Fiberglass & Polyester Foam
$449.99
1167-3302-43-BLEMISHED
-
-
-
null
1167-3302-12-BLEMISHED
-
-
-
null
