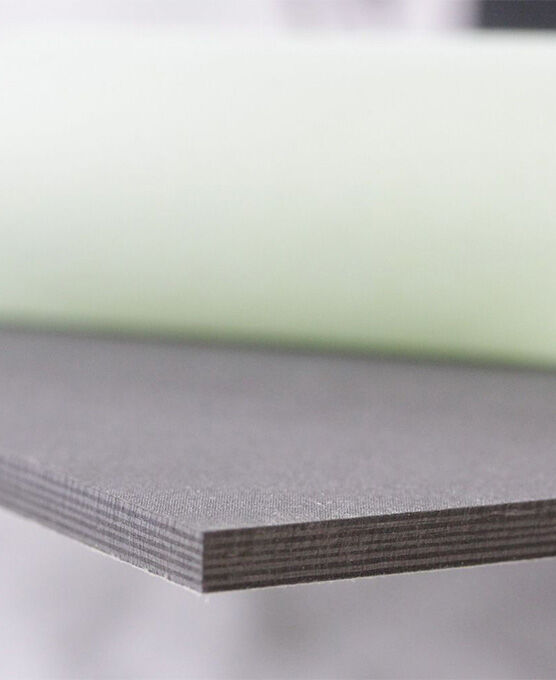

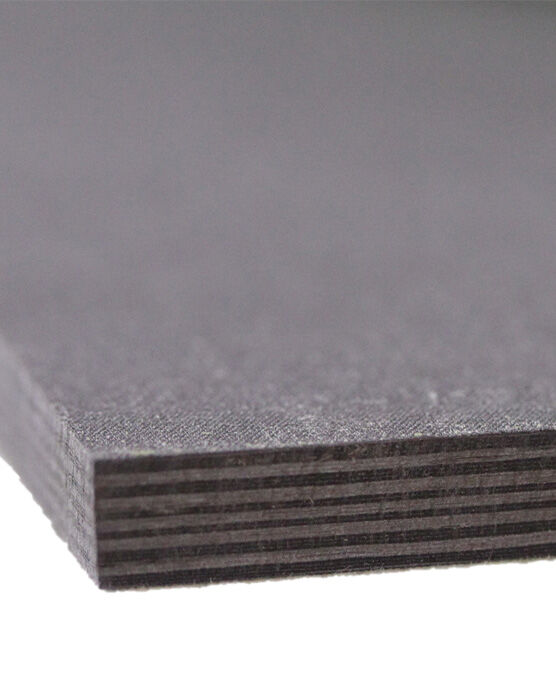

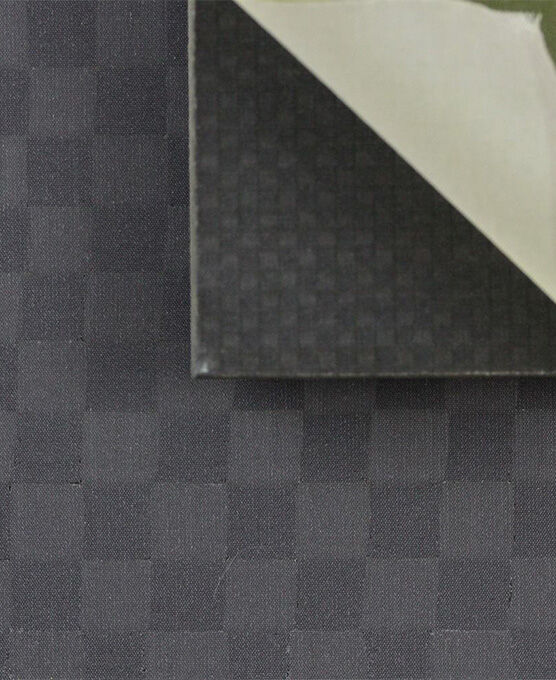

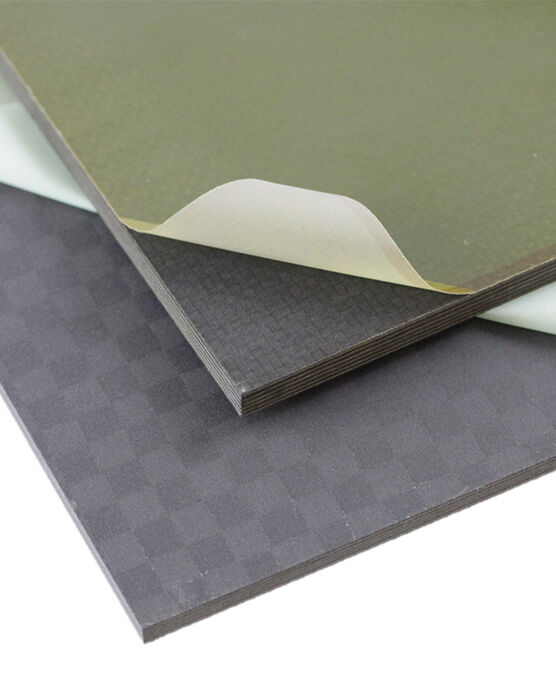

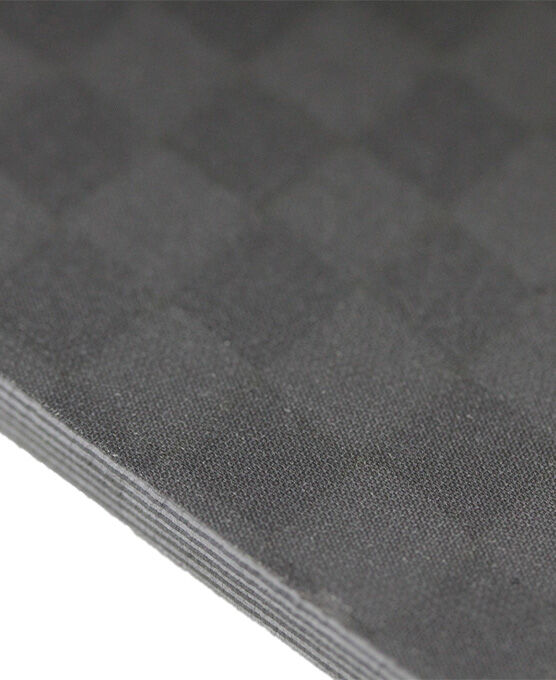

PLATE - CARBON FIBER - HIGH TEMP (402F Tg) BALANCED - PEEL PLY / PEEL PLY - 6 X 6 X 0.25 INCH (*Note length & width tolerance of +/-0.375" due to blade kerf)
0.25" x 6" x 6"
1
-
10
$53.99
11
-
49
$45.79
50
+
$41.59
Estimated lead time for quantities greater than what is Available Now is expected to be between 2 and 4 weeks.
If there is an Available Now quantity listed above, it indicates our quantity in stock. Orders placed today for this quantity or less are expected to ship the next business day.
PLATE - CARBON FIBER - HIGH TEMP (402F Tg) BALANCED - PEEL PLY / PEEL PLY - 6 X 6 X 0.25 INCH
PLATE - CARBON FIBER - HIGH TEMP (402F Tg) BALANCED - PEEL PLY / PEEL PLY - 6 X 6 X 0.25 INCH
Additional Information
| Materials | High Temperature Carbon |
|---|---|
| Pattern | 3k Plain Weave |
| Color | Black |
| Finish | Matte / Matte |
| Panel Thickness | 0.250000 |
| Plate / Panel Size | 6" x 6" / 152.4mm x 152.4mm |
| Width | 6.0 |
| Thickness | 0.25 |
| Length | 6 |
| Weight | 0.54 |
| Max Operating Temp- (Tg) | 350F+ |
| HTS - Harmonized Tariff Code | 6815.13.0000 |
Technical Specifications
Standard Modulus carbon fiber and epoxy laminate with a 0/90 orientation throughout. and a plain weave on the outside.
- Glass Transition Temp (Tg): 402 F
- Coefficient of thermal expansion, X-Y: 2.34 to 2.91
Structural Properties
- @ Room Temperature
- Flexural Strength: 121.9 ksi
- Flexural Modulus: 8.9 Msi
- @ 350 F
- Flexural Strength: 49.8 ksi
- Flexural Modulus: 7.4 Msi
Structural Properties after 100 cycles
- @ Room Temperature
- Flexural Strength: 122.8 ksi
- Flexural Modulus: 9.1 Msi
- @ 350 F
- Flexural Strength: 58.7 ksi
- Flexural Modulus: 8.1 Msi
*No warranty of fitness for a particular purpose are made. Values supplied here should be validated by testing in your specific application.
