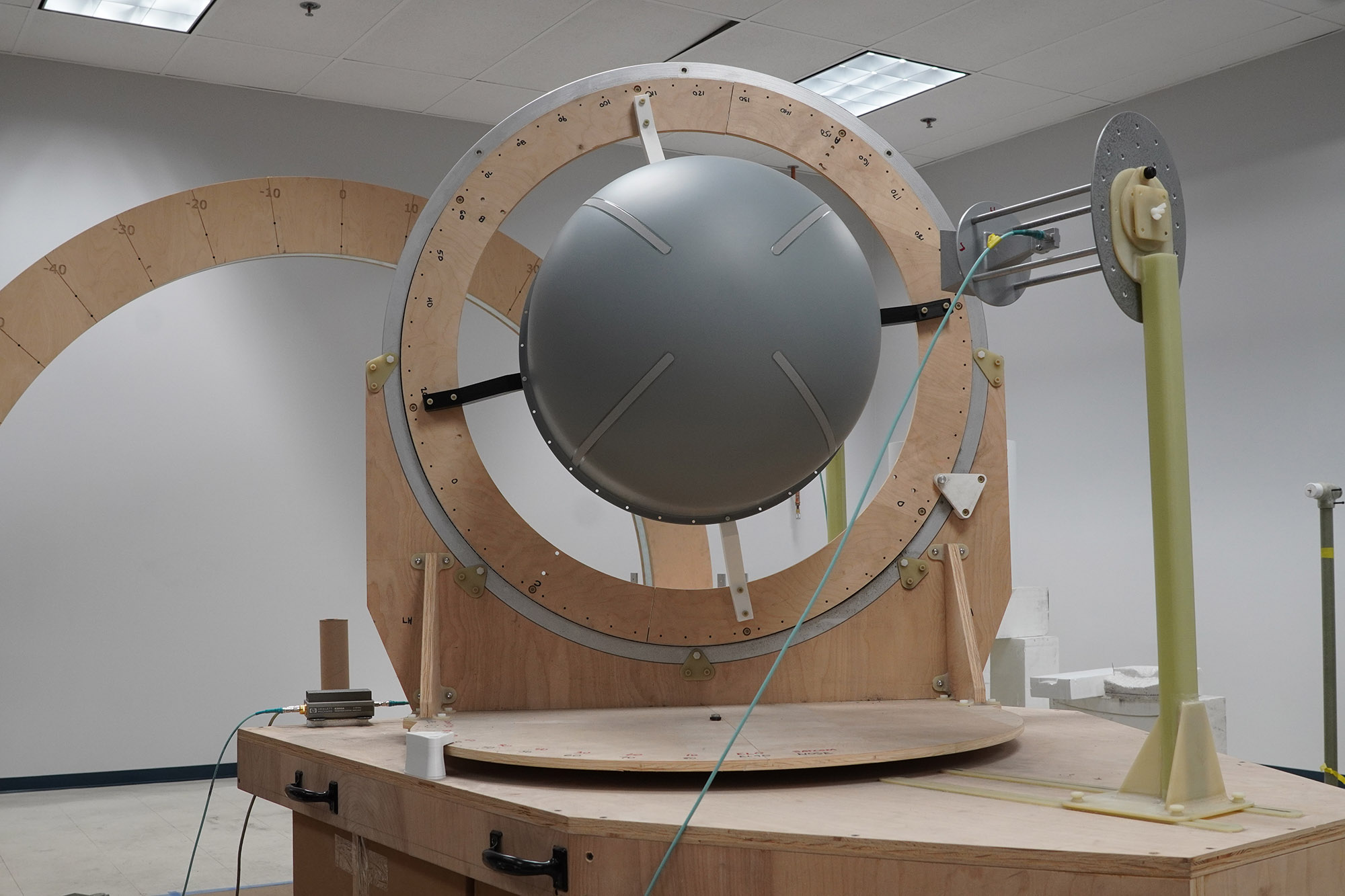

Radome in RF Test

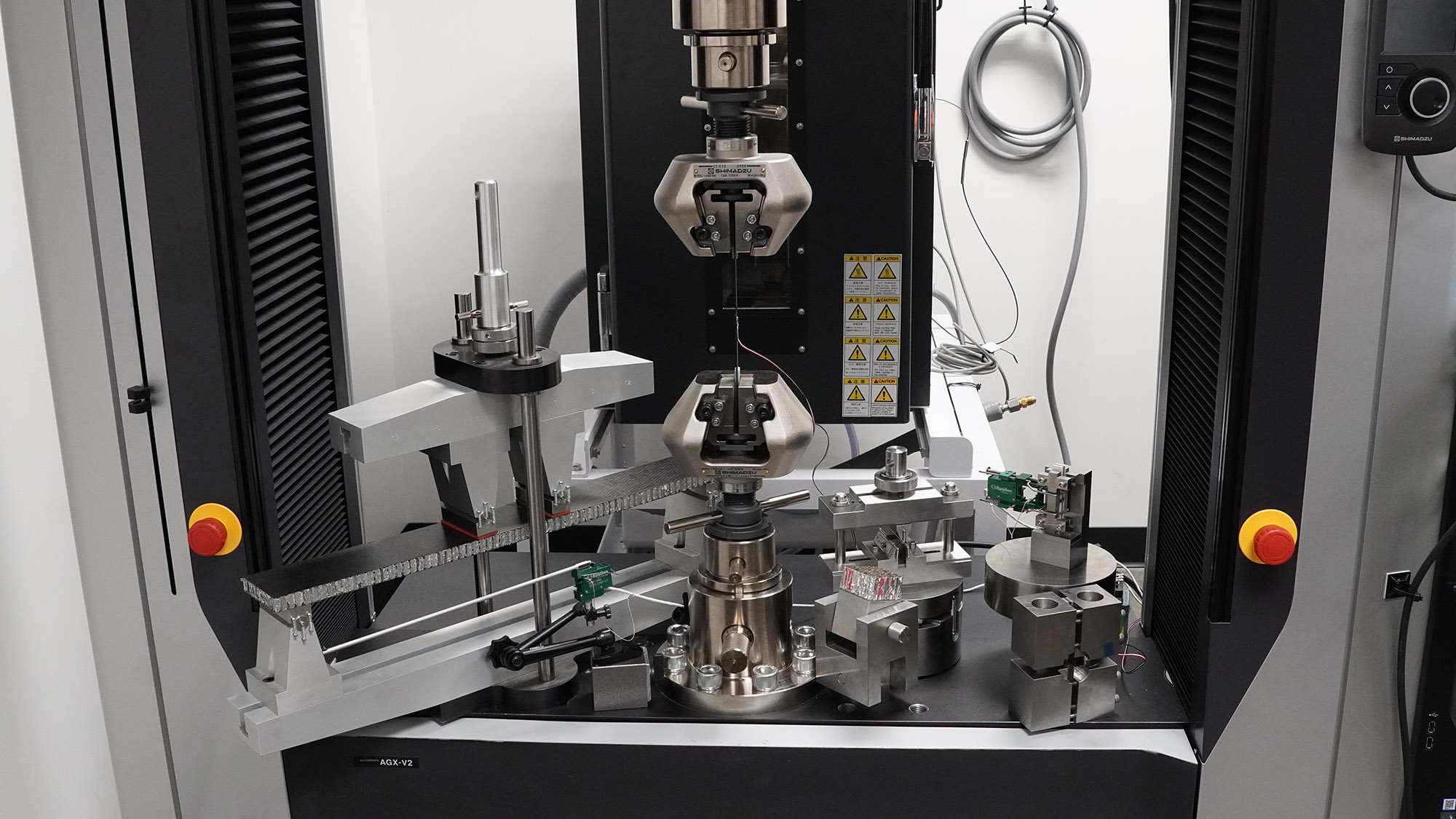

Structural Testing

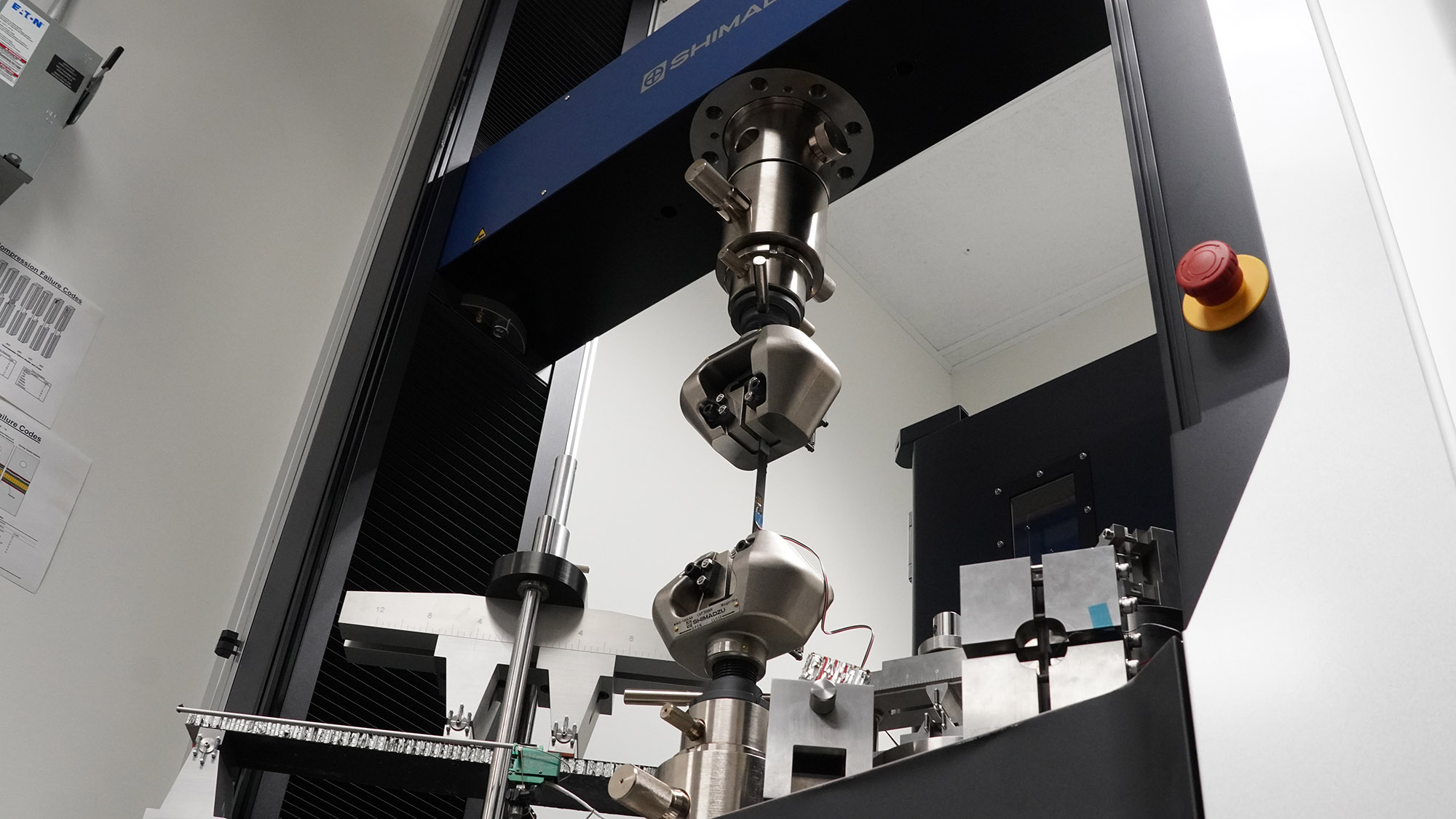

Test Equipment
Setting up radome for RF test

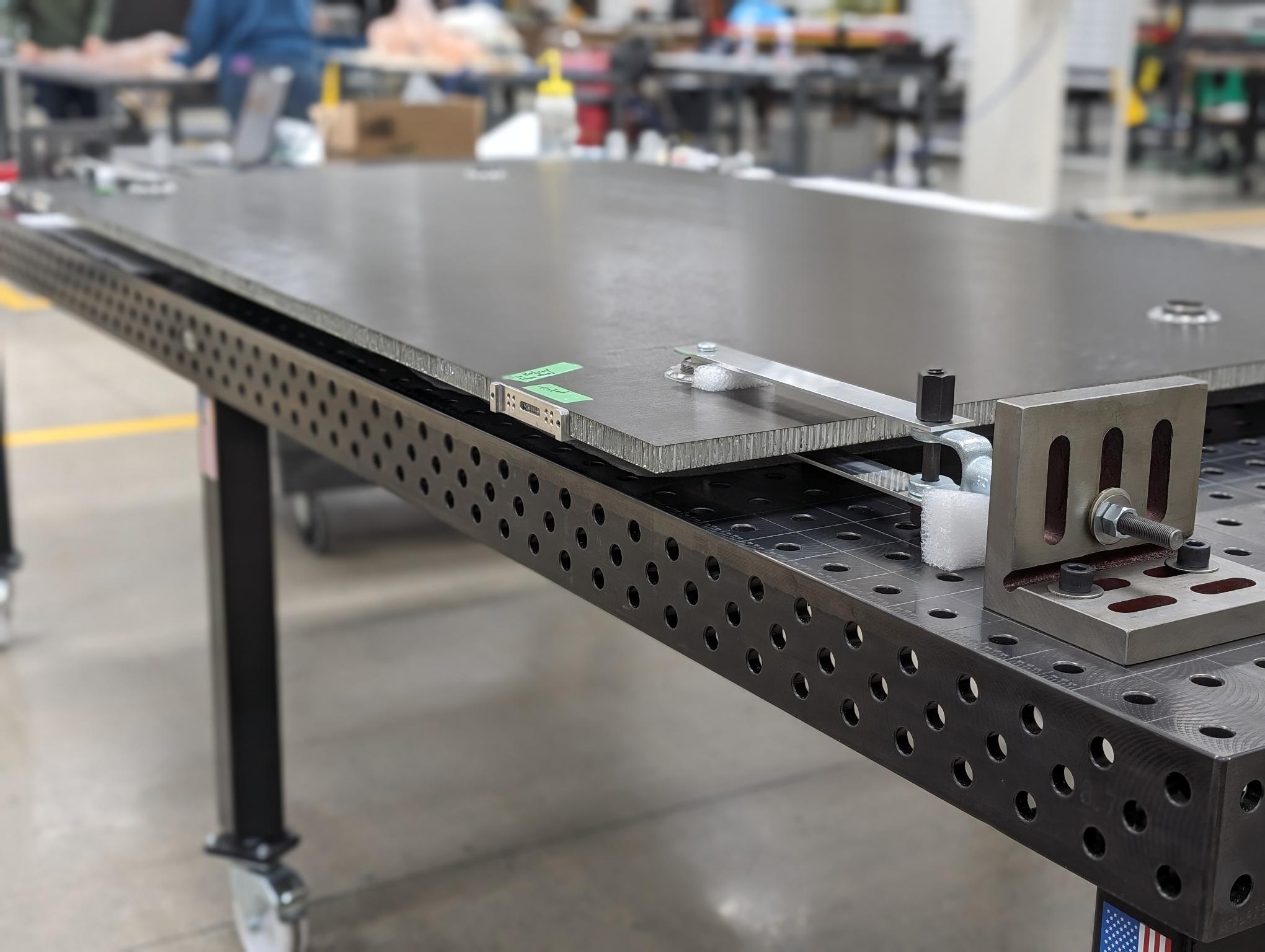

Panel in Structural Test

Testing Equipment

Structural Testing


  • 1 ea. – 3 Point Bend/Load Testing Fixture
  • 1 ea. – Hydrotest Equipment 15’000 psi @250°F
  • 1 ea. – Instron Tensile/Compression Tester
  • 1 ea. – Tri-Axis CTE Laser Measurement Lab. Length, Bend & Twist
  • 1 ea. – 300kN AGX-V2 Shimadzu load frame
  • 1 ea. – TCE Shimadzi Environmental Chamber
  • 1 ea. – 123C Test Equity Temperature Chamber
  • 1 ea. – Epsilon Extensometer
  • 1 ea. – Epsilon Deflectometer
  • 6 ea. – New Port Optical Precision and Vibration Control Assembly Stations
  • 1 ea. – United Tensile/Compression Tester
  • 1 ea. – United Load Cell 10K lbs.
  • 1 ea. – Carver Press


Test Fixtures


  • 1 ea. of the following Wyoming Test Fixtures:
  •       Long Beam Flex fixture (ASTM D7249)
  •       Short Beam Shear Fixture (ASTM D2344)
  •       Flexural Test Fixture (ASTM D790)
  •       Combined Load Compression Fixture (ASTM D6641)
  •       End Loading Compression Fixture (ASTM D695)
  • 2. ea. – Wedge Action Tensile Grips
  • 2. ea. – Compression Platens
  • 1 ea. of the following Test Fixtures:
  •       United 1” Extensometer
  •       United 2” Extensometer
  •       Shimadzu 20kN Grips
  •       United 10K lbs. Grips
  •       ASTM D695 Compression Fixture
  •       ASTM D1781 Climbing Drum Peel Fixture
  •       ASTM C297 Flatwise Tension Fixture
  •       Sandwich Flexure Fixture, 28” Span with LVDT


RF Test Equipment


  • 2 ea. – 1-18 GHz Horn
  • 2 ea. – 18-40 GHz Horn
  • 1 ea. – 7-14.5 GHz Horn
  • 1 ea. – 12.4-18 GHz Horn
  • 1 ea. – 2-50 GHz Amplifier, 21dB
  • 1 ea. – 96" diameter NRL Arch
  • 1 ea. – 1-40 GHz Waveguide Kit (Short/Open/Load/Waveguide/Etc)
  • 1 ea. – 2-port VNA, 50 MHz - 40 GHz, Agilent
  • 1 ea. – Turntable, DC-40 GHz
  • 1 ea. – Starlink Terminal
  • 1 ea. – Starlink Mini
  • Absorbing foam
  • Fixtures and stands
