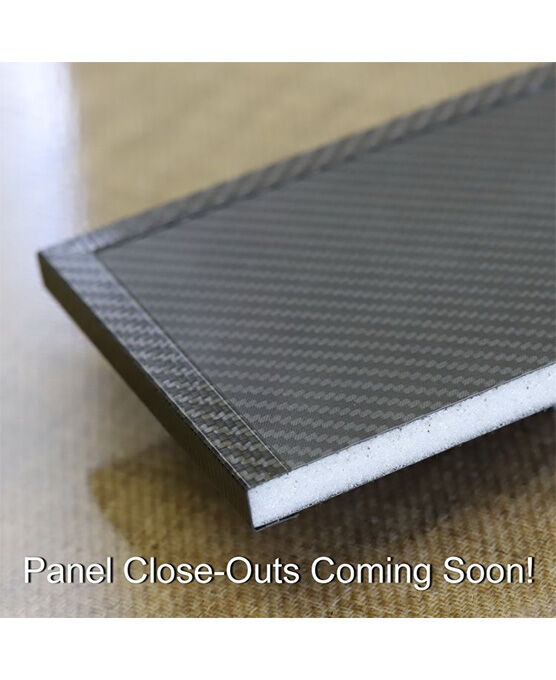

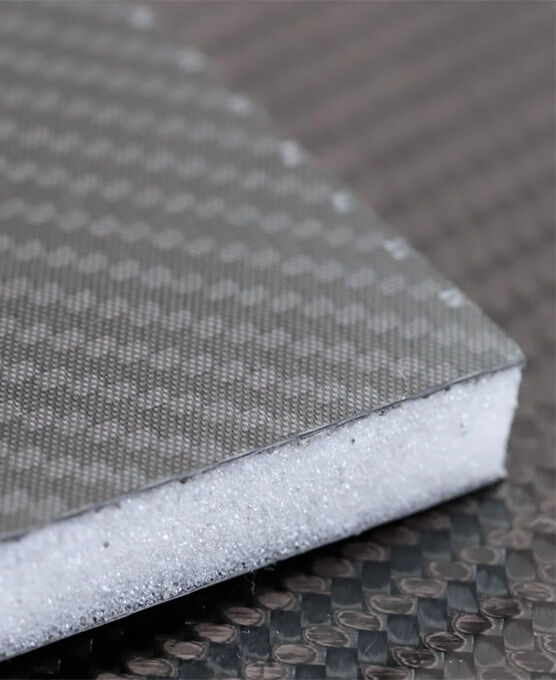

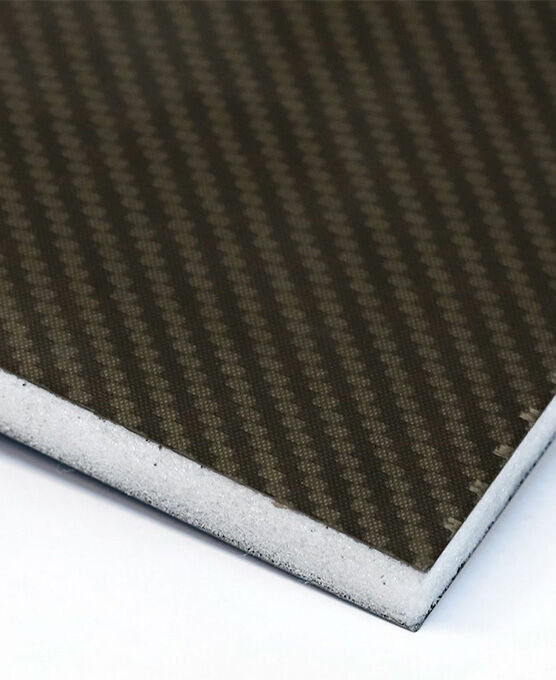

Sandwich Panel - Rohacell IGF31 Core (0.085") - Carbon Twill Skins (0.02") - Matte/Matte - 50 x 100 x 0.125 inch (Untrimmed)

P/N: 1107-3302-50100

0.125" x ~49" x ~98" ◾ Untrimmed

P/N: 1107-3302-50100
1
$3,051.99
2 +
$2,890.79
Estimated lead time for quantities greater than what is Available Now is expected to be between 2 and 4 weeks.
Sandwich Panel - Rohacell IGF31 Core (0.085") - Carbon Twill Skins (0.02") - Matte/Matte - 50 x 100 x 0.125 inch

Additional Information

Application General Purpose
Materials Carbon Fiber Skins / Foam Core
Pattern 3k 2X2 Twill Weave
Finish Matte / Matte
Panel Thickness 0.125
Skin Thickness 0.02
Skin Material Standard Modulus Carbon
Core Material Rohacell Foam
Core Thickness 0.085
Plate / Panel Size 50" x 100" / 1270mm x 2540mm
Length 0
Weight 12.79

Tolerances

STOCK TOLERANCE SHEET

Download PDF

Contact Info
Sandwich Panel - Rohacell IGF31 Core (0.085") - Carbon Twill Skins (0.02") - Matte/Matte - 50 x 100 x 0.125 inch (Untrimmed)
P/N 1107-3302-50100
