Button Clip - Stainless Steel - Fits Inside Tube Diameters - 0.50" to 0.85" - Button Diameter 0.25 inch

productname image number 0
productname image number 1
productname image number 2
productname image number 0
productname image number 1
productname image number 2
P/N: 1139-SS
Availability: 807

Fits Tubes with ID: 0.50" - 0.85"

P/N: 1139-SS
Availability: 807
1 - 49
$1.41
50 - 249
$1.09
250 - 999
$0.92
1,000 +
$0.82
Contact Info
Project Details
Quantity must be greater than 1.
or
Please select a valid length.
Precision of Measurement
Please select a tolerance option.
    • ~0.005 reduction on outer diameter (OD)."
    • This removes the outer cello wrap gloss finish.
    • Sand outer diameter to specified thickness.
    • Patterns will likely distort in appearance
    Please select a value within the allowed range.
    Sanding Tolerance Options:
    Please select a tolerance option.

If you are requesting bulk discounts, cutting, or standard sanding services only, we will send you a cart with your product selections. You may enter your shipping information and purchase directly at that time. Please note, the cart will not allow edits to the quote. Any changes will have to be completed by our team. If we do not have enough information to complete your quote we will reach out to you directly. If you are requesting additional services or custom sanding, a team member will reach out to you to finalize a quote.

If you request a custom length you will be charged for a full length item (or items if more than 1 is needed to meet your request) plus a cutting fee. You will then be shipped the item sized to your specification and any remaining length of the orginal item (drops). Sanding also incurs a fee which will be included in the quote. All items that have been sanded or cut may not be returned.

The Available Quantity listed above is what we have in inventory for this item. Provided there has not been a prior sale, you can expect an order placed today, for this quantity or less, to ship the next business day. For quantities over the number available:
Generally available to ship in two to four weeks.
Button Diameter 0.25 inch - Button Height 0.28 inch - Clip Length 1.44 inch

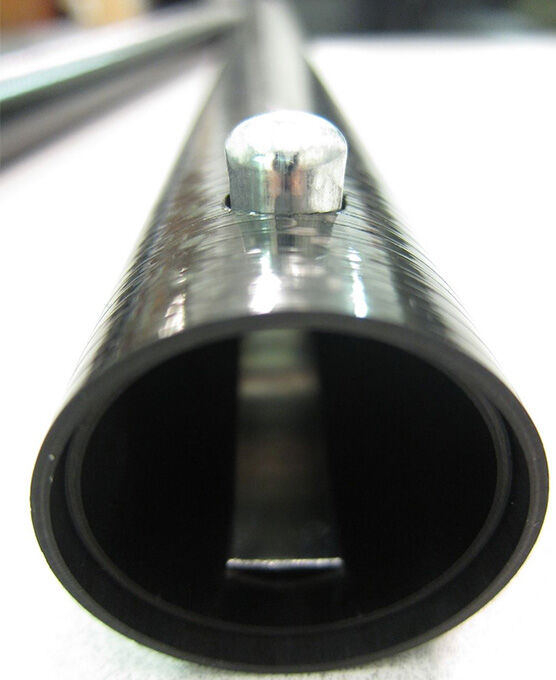

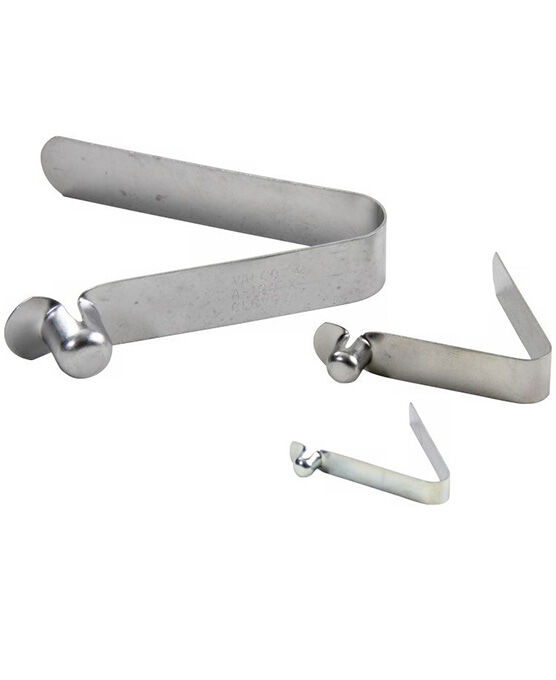

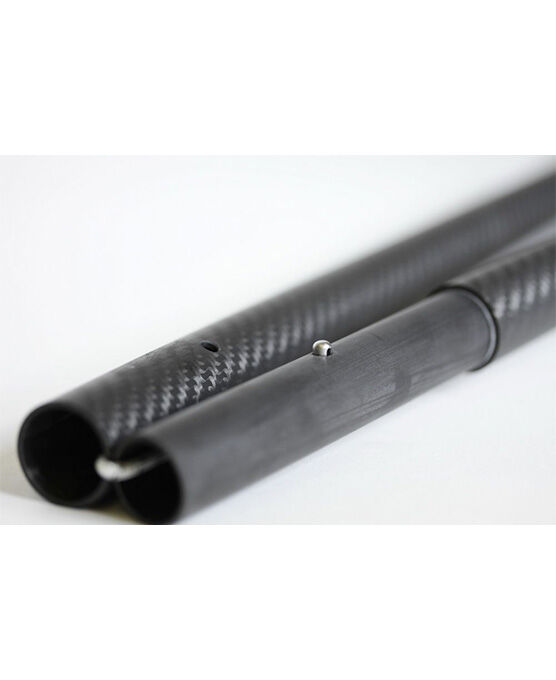

Standard single end button clips (snap buttons) are 410 stainless steel with bright heat treat. This group shows pricing for single button clips and full case prices. The button clips in this group work with round tubing that has 0.50" to 0.85" inside diameter (ID).

The button clips are sold individually, However, we can offer better pricing when more are ordered. View our full case pricing above.

Rock West Composites will NOT return or refund button clips.
NOTE* Small button height > If using in 0.062" wall tubes, large fingers may have difficult time depressing button!

You may also need

Additional Information

P/N 1139-SS
Brand Rock West Composites
Length 1.44
Panel Thickness 0.250000
Weight 0.005

Tolerances

General Stock Tube Tolerances

Contact Info
Button Clip - Stainless Steel - Fits Inside Tube Diameters - 0.50" to 0.85" - Button Diameter 0.25 inch
P/N 1139-SS
