Dry Woven Fabric - Carbon Fiber - Qiso "Heavy" Triaxial Balanced - 532 gsm 48" Wide

productname image number 0
productname image number 1
productname image number 2
productname image number 3
productname image number 4
productname image number 5
productname image number 0
productname image number 1
productname image number 2
productname image number 3
productname image number 4
productname image number 5
Sold by the Yard
P/N: 13012-D
1
$98.99
2 - 4
$95.79
5 - 9
$89.59
10 +
$85.39
~50 LYD Roll (48" x 1800")
P/N: 13012-D-FULLROLL
1
$3,524.99
2 - 3
$3,389.79
4 +
$3,242.59
Estimated lead time for quantities greater than what is Available Now is expected to be between 2 and 4 weeks.
QISO Carbon Fiber Fabric

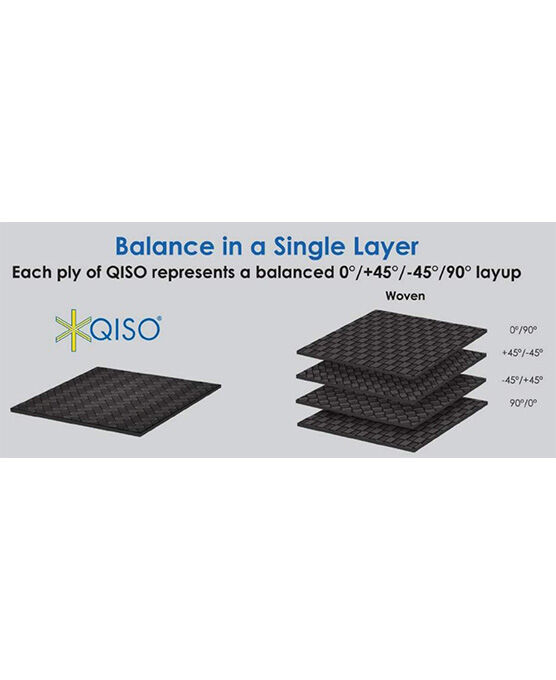

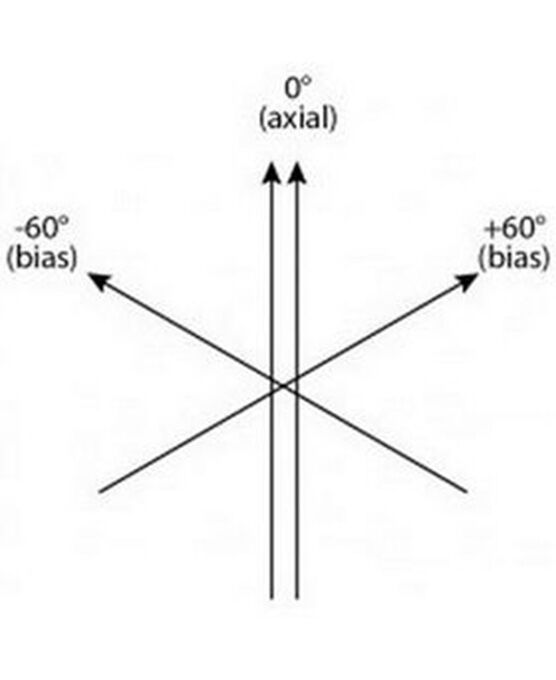

QISOquasi-isotropic fabric is balanced in a single layer of braid with fibers running 0°, + 60° and -60°. In this configuration, a layup will exhibit similar properties in all directions of the laminate with each ply of QISO without having to add multiple layers of fabric at different orientations. Stronger, lighter and more efficient, QISOenables significant cost savings and superior performance.

You may also need

Additional Information

P/N 13012-D 13012-D-FULLROLL
Materials Standard Modulus Carbon Standard Modulus Carbon
Pattern Braided Braided
Color Black Black
Thickness 0.03 0.03
Length 0 0
Weight 1.75 50.0

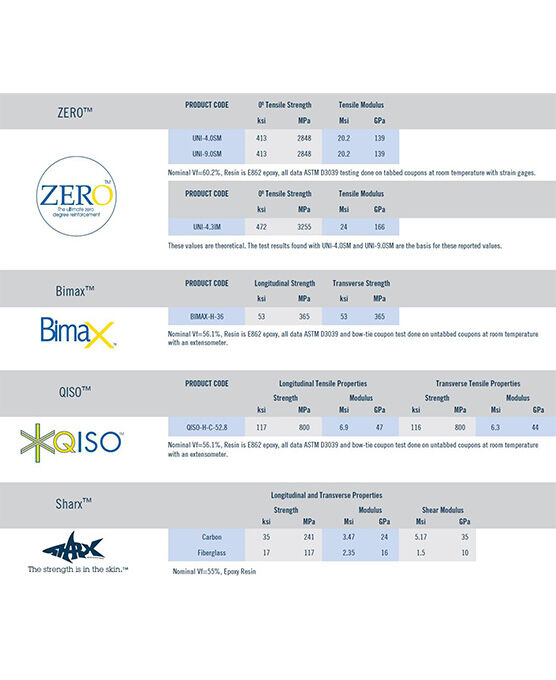

Technical Specifications

Download PDF

Contact Info
Dry Woven Fabric - Carbon Fiber - Qiso "Heavy" Triaxial Balanced - 532 gsm 48" Wide
P/N 13012-D-GROUP
