Dry Woven Fabric - Carbon Fiber (T300) - 42" Wide - 1k Plain Weave - 0.0075" Ply Thickness - 127 GSM - Various Sizes Available
Pricing Listed Is Per Yard - Sold In Continuous Format
1
$176.99
2
-
4
$169.79
5
-
9
$159.59
10
+
$152.39
100 LYD Roll (42" wide x 3600" long)
1
-
3
$14,770.99
4
+
$13,289.59
Estimated lead time for quantities greater than what is Available Now is expected to be between 2 and 4 weeks.

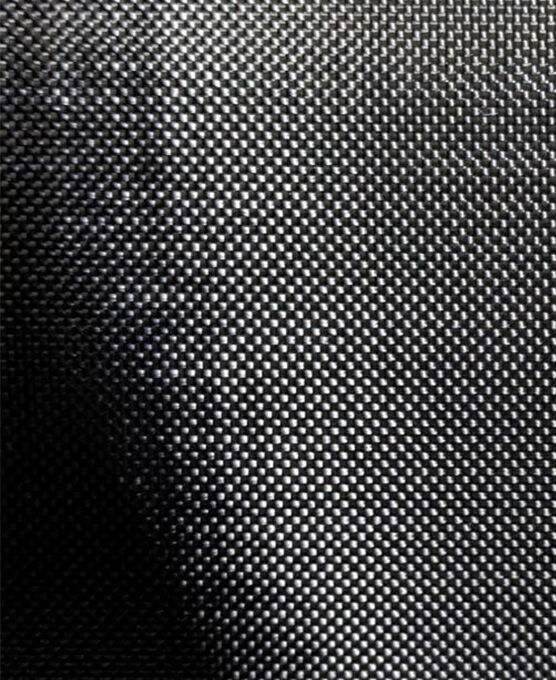

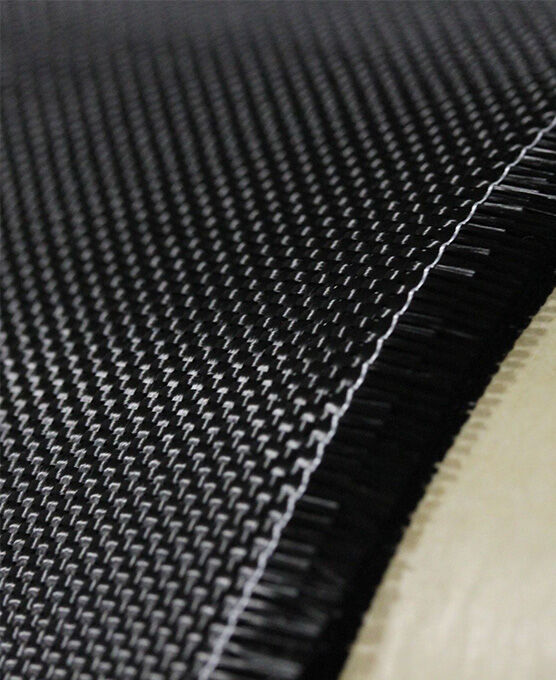

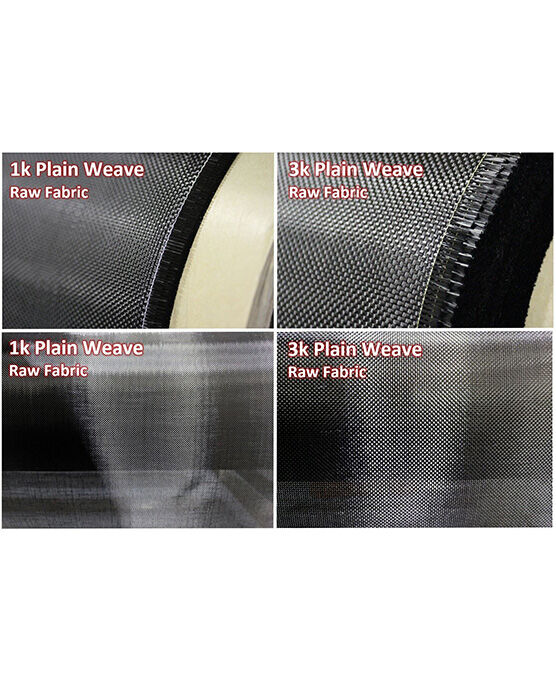

1K 2x2 Plain Weave Dry Carbon Fiber Fabric
This dry 1K plain weave fabric is not only a good looking cosmetic fabric but also serves very well as structural support for composite structures and designs. Because of its amazing features this material is more costly than a normal 3K or 12K material but its added features justify the added cost! it is much thinner than our part # 13000-D and is one of the most common carbon fiber materials in the world.
Common Conversions
| Per Linear Yard (1 lyd =) |
| 0.27 lbs |
| 10.5 ft2 |
| 0.98 m2 |
| Per Full Roll (1 =) |
| 100 lyds |
| 91.44 m |
| 27.3 lbs |
| 1050 ft2 |
| 97.6 m2 |
You may also need
Additional Information
| P/N | 13016-D | 13016-D-FULLROLL |
|---|---|---|
| Application | ||
| Brand | Rock West Composites | Rock West Composites |
| Clearance | ||
| Color | ||
| ECCN | ||
| Exportable | No | No |
| Fiber Areal Weight | ||
| Fiber Type (brand) | ||
| Finish | ||
| Height | ||
| HTS - Harmonized Tariff Code | ||
| Major ID | ||
| Major OD | ||
| Materials | Standard Modulus Carbon | Standard Modulus Carbon |
| Minor ID | ||
| Minor OD | ||
| REACH | ||
| RoHS | ||
| Shipping Weight per Unit (includes backing paper and or core) | ||
| Tensile Modulus, msi | ||
| Tensile Strength (ksi) | ||
| Thickness | ||
| USMCA Criterion | ||
| Weight | 1.75 | 100.0 |
| Width |
