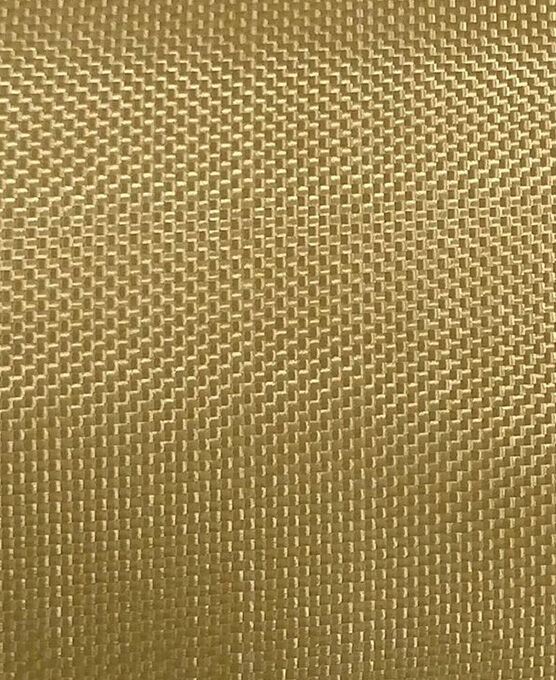

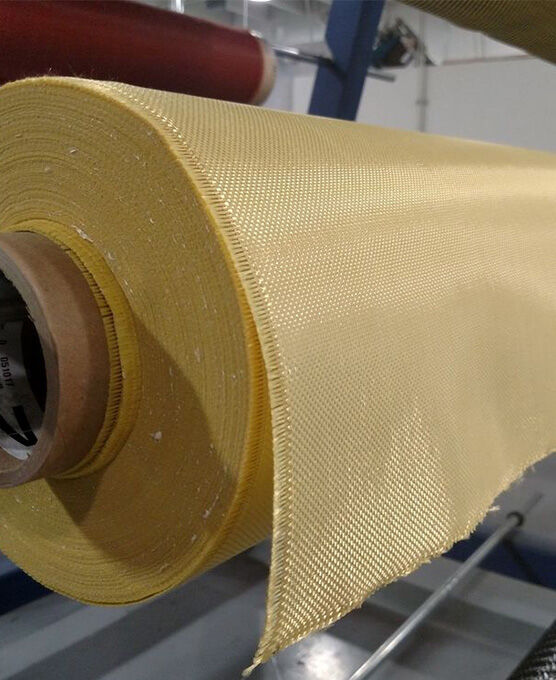

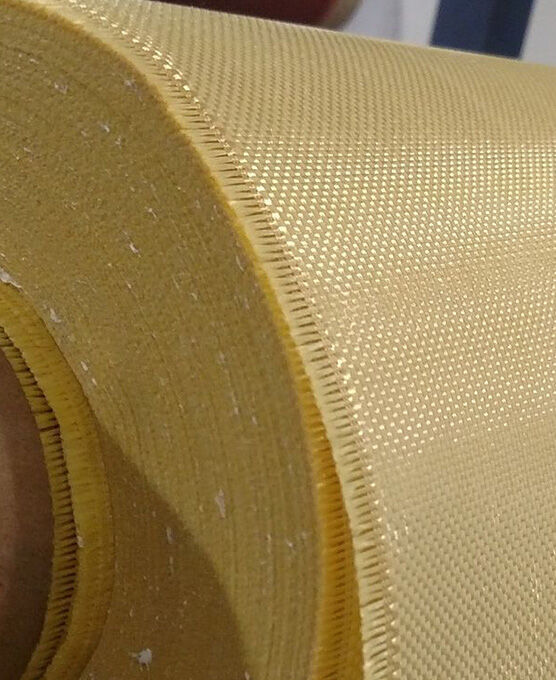

Dry Woven - 1140 Denier Kevlar® 49 - Plain Weave - 50" Wide - 5.3 oz - Various Sizes Available
Pricing Listed Is Per Yard - Sold In Continuous Format
1
$73.99
2
-
4
$70.79
5
-
9
$66.59
10
+
$63.39
100 LYD (50" wide x 3600" Long)
1
$4,485.99
2
-
3
$4,313.79
4
$4,127.59
5
+
$4,067.39
Kevlar Plain Weave Dry Carbon Fiber Fabric
Description
Kevlar® 49 material is rated primarily for industrial applications including sporting goods, boats and as reinforcements in other composite structures. It is important to note that this is not Kevlar® 29, which is built for ballistic applications and is far less common. The density of both Kevlar® 29 and 49 is 1.44 g/cm^3 or 0.052 lb/in^3. For comparison, carbon fiber has a density of 1.76 g/cm^3 or 0.064 lbs/in^3 respectively.
Although Kevlar is less dense than carbon fiber, it is far less stiff. Tensile modulus is ~16msi vs. 33msi for standard modulus carbon. Additionally, Kevlar® 49 sees 2.4% fiber elongation at break. This product is about 0.01" thick.
You may also need
Additional Information
| P/N | 13026-D | 13026-D-FULLROLL |
|---|---|---|
| Application | ||
| Brand | Rock West Composites | Rock West Composites |
| Clearance | ||
| Color | ||
| ECCN | ||
| Exportable | No | No |
| Fiber Areal Weight | ||
| Fiber Type (brand) | ||
| Finish | ||
| Height | ||
| HTS - Harmonized Tariff Code | ||
| Major ID | ||
| Major OD | ||
| Materials | Kevlar | Kevlar |
| Minor ID | ||
| Minor OD | ||
| REACH | ||
| RoHS | ||
| Shipping Weight per Unit (includes backing paper and or core) | ||
| Tensile Modulus, msi | ||
| Tensile Strength (ksi) | ||
| Thickness | 0.01 | 0.01 |
| USMCA Criterion | ||
| Weight | 1.75 | 100.0 |
| Width | 50.0 |
Technical Data
For more detailed information from Dupont® please view their full data sheet here.
