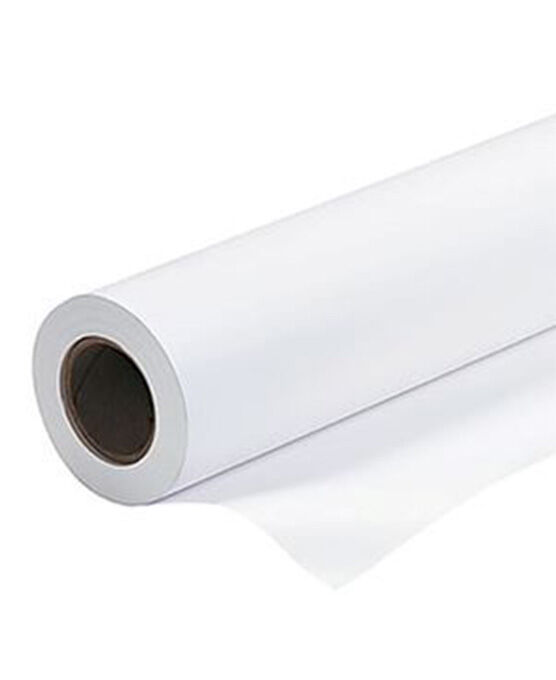

Film Adhesive - Supported General Purpose (Bondex Film Adhesive) - 0.006" Thick - 40" (1M) Wide - 137 Gsm OAW - 250F Adhesive

Film Adhesive - Supported General Purpose (Bondex Film Adhesive) - 0.006" Thick - 40" (1M) Wide - 137 Gsm OAW - 250F Adhesive image number 0
Film Adhesive - Supported General Purpose (Bondex Film Adhesive) - 0.006" Thick - 40" (1M) Wide - 137 Gsm OAW - 250F Adhesive image number 0
Sold By The Yard ◾ Provided In Continuous Length ◾ 50" Wide
P/N: 14081-LYD
1
$45.99
2 - 4
$43.79
5 - 9
$41.59
10 +
$39.39
6" x 6" Swatch ◾ Ships Insulated & Frozen
P/N: 14081-SAMPLE
$28.99
This product is currently out of stock. Lead time is approximately 8 weeks. Order today and your product will ship when back in stock.

You may also need

Features & Benefits

The Bondex film adhesive features the Bondex epoxy resin system and is slightly supported with a non-woven polyester mat. It is suited for general purpose bonding applications in aerospace, sporting goods, marine, wind energy, and industrial manufacturing. The resin system is co-curable with most 250F prepregs/resins. It's a great film adhesive that is simple to use and works like most other adhesives. Please call us for exact quantity on hand.



Adhesive films and prepregs have special policies related to returns and shipping. Please review them here prior to order.

Product Specifications

Common Conversions:

Per Linear Yard (1 lyd =) 0.28 lbs (w/out backing paper)
10.0 ft2
0.93 m2



Per Full Roll (1 =) 109 lyds
100 m
31 lbs (w/out backing paper)
1094 ft2
102 m2



Additional Information

P/N 14081-LYD 14081-SAMPLE
Application Adhesive Epoxies Adhesive Epoxies
Brand Rock West Composites Rock West Composites
Clearance
Color
Cure Ply Thickness (CPT) 0.006"
Exportable Yes No
Fiber Areal Weight
Fiber Type (brand) Polyester Mesh
Finish
Glass Transition (Tg, DMA)
Height
Major ID
Major OD
Materials Supported Film Adhesive Supported Film Adhesive
Minor ID
Minor OD
Prepreg Overall Weight 137 GSM
Recommended Cure Temperature 250F (121C)
Resin Content
Resin System
Shelf Life @ 0°F / 40°F / 70°F 6 Mo / 90 Days / 21 Days
Shipping Weight per Unit (includes backing paper and or core)
Tensile Modulus, msi
Tensile Strength (ksi)
Weight 0.3 0.007
Width 40.0

Technical Data

Newport 102 - Resin System Data Sheet

Download PDF
