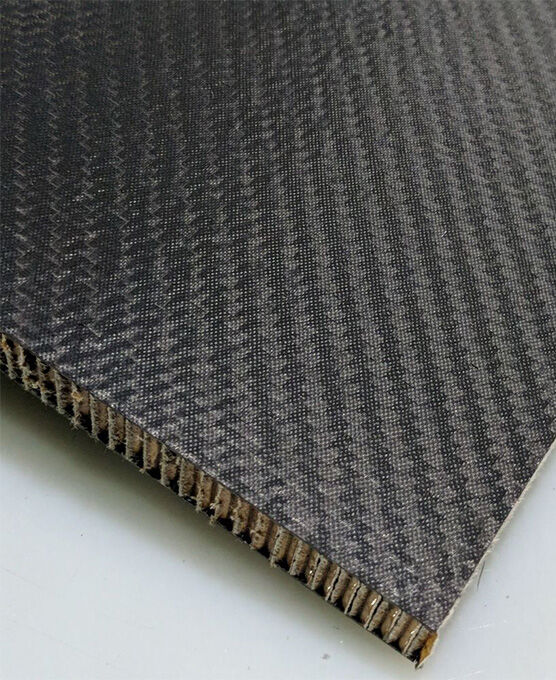

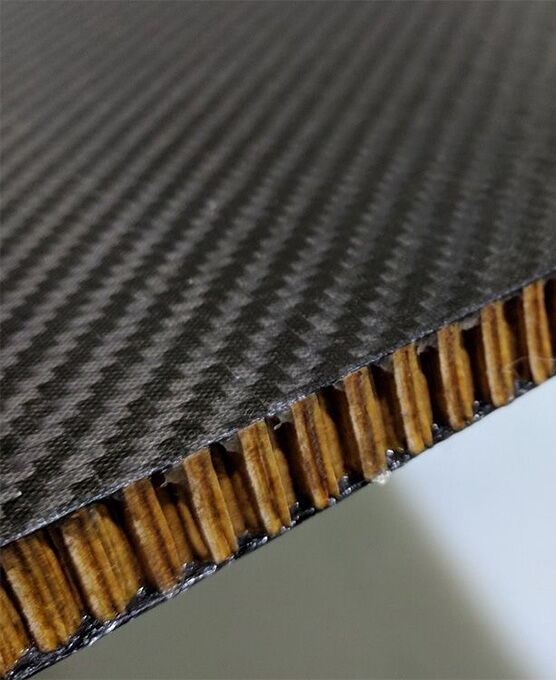

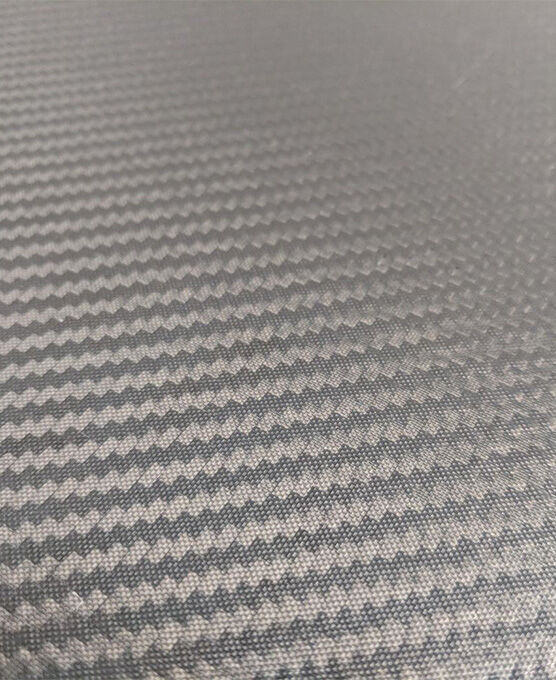

Sandwich Panel - Aramid 3 Cubic ft Honeycomb Core (0.210") - Twill Carbon Fiber Skins (0.02") - Matte/Matte - 48 x 48 x 0.250 inch (Requires Shipping Crate + Freight)

Carbon fiber and honeycomb sandwich panels offer incredible weight reduction while maintaining structural stiffness. We use an aramid 3lb density honeycomb hexagonal core. These panels can be cut and assembled to create three dimensional shapes, such as boxes or storage compartments, and can be used as bulkheads in aerospace and marine applications.

Curious how much your sandwich panel will bend? We are working on testing each and every variation. In the interim, we tested a 1/2" thick, 0.020" skin thickness aramid core sandwich @ a 24" x 24" size with it supported along two opposing sides. We then loaded it in the middle by standing on it. Creating a span of 21" and applying a semi-distributed load of 150lbs. At the non-supported edge the panel deflected ~0.125".

Learn More About Sandwich Panels In Our Composites Classroom

If we do not have the exact sandwich panel you're looking for then please call or send an email to info@rockwestcomposites.com.
