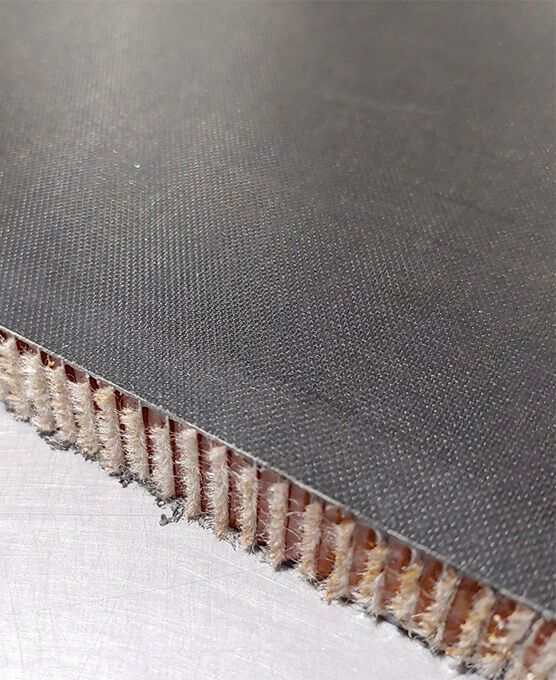

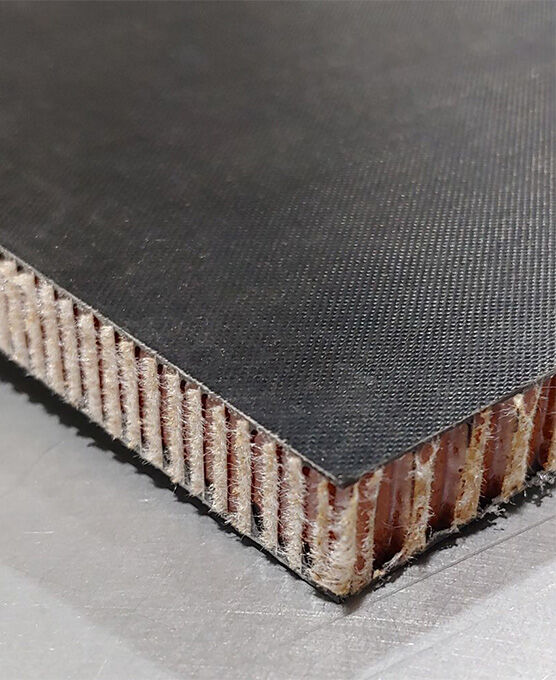

Sandwich Panel - Aramid 3 Cubic ft Honeycomb Core (0.460") - Black Dyed Glass Fiber Skins (0.02") - Matte/Matte - 24 x 24 x 0.500 inch
1/2" Thick ◾ 24" x 24" / 609mm x 609mm
1
-
19
$472.99
20
+
$447.79
Estimated lead time for quantities greater than what is Available Now is expected to be between 2 and 4 weeks.
If there is an Available Now quantity listed above, it indicates our quantity in stock. Orders placed today for this quantity or less are expected to ship the next business day.
Our glass fiber and honeycomb sandwich panels are intended for applications requiring very lightweight yet lower cost structural support. These panels can be cut and assembled to create three dimensional shapes, such as boxes or storage compartments, and can be used as bulkheads in aerospace and marine applications. In addition to being lightweight, our glass fiber skin aramid honeycomb core panels are also radio transparent thereby allowing radio waves to transmit through.
Quick Facts for our aramid Honeycomb Core Sandwich Panel
- Stiff & lightweight
- Wide range of sizes available
- Great for any application, ideally used in: home and building construction, boat building, aircraft, aerospace craft, windmills, automobiles
Features & Benefits
Quick Facts for our aramid Honeycomb Core Sandwich Panel
- Stiff & lightweight
- Wide range of sizes available
- Great for any application, ideally used in: home and building construction, boat building, aircraft, aerospace craft, windmills, automobiles
Additional Information
| Application | General Purpose |
|---|---|
| Materials | Fiberglass & Honeycomb Core |
| Pattern | No Pattern |
| Color | Black |
| Finish | Matte / Matte |
| Panel Thickness | 0.500 |
| Skin Thickness | 0.02 |
| Skin Material | Fiberglass |
| Core Material | Aramid Honeycomb |
| Core Thickness | 0.46 |
| Plate / Panel Size | 24" x 24" / 609.6mm x 609.6mm |
| Length | 0 |
| Weight | 2.49 |
