Dry Non Woven - Carbon Fiber (PAN) - Tissue/Veil - 35.5" Wide - Thickness: 0.0025" - 0.3 Oz. Per Yard - Various Sizes Available
Description

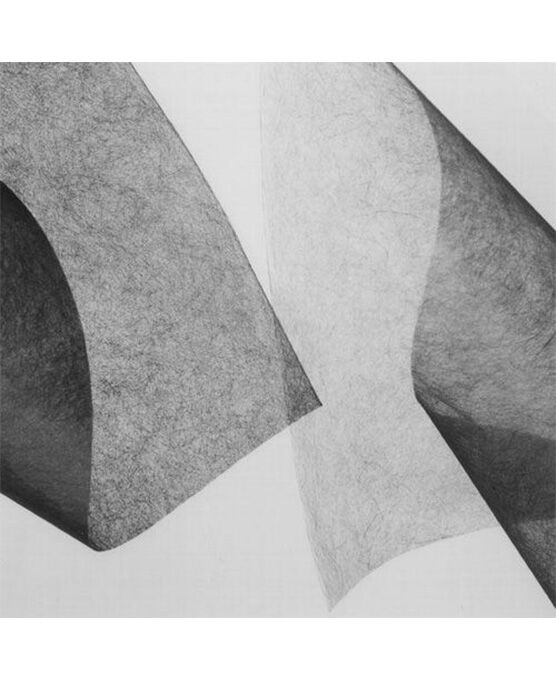

Carbon tissue / veil is a lightweight, non-woven carbon fiber veil incorporating 100% carbon fibers, approximately 1" in length, bonded together in a random fiber matrix. The non-woven construction allows a resin-rich surface that increases chemical stability and reduces the risk of micro-cracks forming in the composite surface. It has excellent formability, draping and wets out evenly. Cosmetically, you should not expect to see awesome woven carbon fiber when using veil on the surface as the veil will hide the patterns you cover. It can be used to provide a smooth covering for composite structures or to add stiffness with minimal weight gain and thickness. It is compatible with polyester, vinyl-ester and epoxy resins and is suitable for use in wet layup, vacuum bagging and resin infusion manufacturing.
Carbon fiber offers great RF properties but woven fibers tend to distort the frequencies in the direction of the fibers (0/90, etc). Because of the random direction of this veil, it will create a better surface for sending and receiving RF signals (still not as strong as nickel coated veil and aluminum for Ka band but still good for Ku and X band)
Carbon Fiber Tissue/Veil Quick Facts:
Sold in linear yard (LYD) increment (with minimums) OR as pre-made rolls. Break down below:- Per LYD with with 10 LYD minimum. Material will be provided in continuous format (Example: Qty. 10 in shopping cart yields 360" length x 35.5" width)
- 1 LYD Pre-made Roll (36" length x 35.5" width)
- 3.3 LYD Pre-made Roll (120" length x 35.5" width)
- 6.6 LYD Pre-made Roll (240" length x 35.5" width)
- Full Roll 100 LYD (3600" length x 35.5" width)
Rock West Composites will NOT return or refund raw material orders.
You may also need
Additional Information
| P/N | 3002-D | 3002-D-FULLROLL |
|---|---|---|
| Abrasive Pad Finish | ||
| Application | ||
| Brand | Rock West Composites | Rock West Composites |
| Clearance | ||
| Color | ||
| Core Thickness | ||
| ECCN | ||
| Exportable | No | No |
| Finish | ||
| Height | ||
| Holesaw Size | ||
| HTS - Harmonized Tariff Code | ||
| Major ID | ||
| Major OD | ||
| Materials | Carbon Fiber | Carbon Fiber |
| Minor ID | ||
| Minor OD | ||
| Plate / Panel Size | ||
| REACH | ||
| RoHS | ||
| Router Bit Size | ||
| Saw Blade Arbor | ||
| Saw Blade Blade Type | ||
| Schedule B | ||
| USMCA Criterion | ||
| Weight | 0.5 | 50.0 |
| Width |
