Flow Media - Red Mesh for Infusion - 60" wide

Linear Yard x Roll Width Increments ◾ Provided In Continuous Length
P/N: 3006-D
Available Now: 2
1
$39.99
2 - 4
$37.79
5 - 9
$34.59
10 +
$32.39
Full Roll ◾ 116 LYD ◾ 60" wide x 4176" long
P/N: 3006-D-FULLROLL
$799.99
Estimated lead time for quantities greater than what is Available Now is expected to be between 2 and 4 weeks.

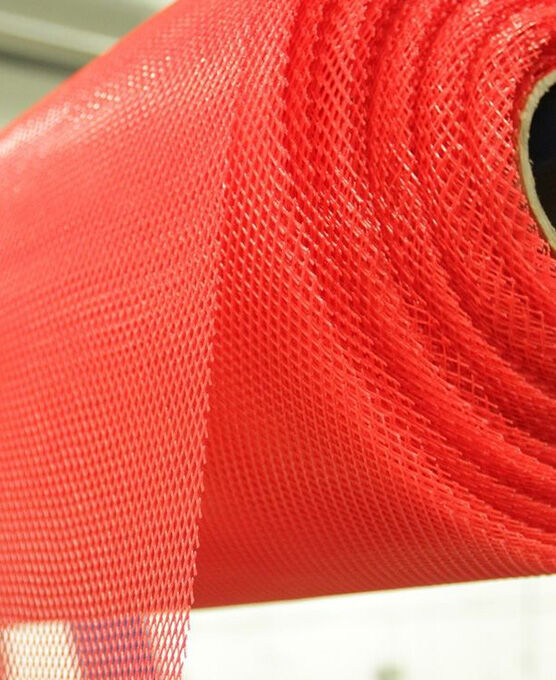

Red Flow Media 60" Roll Width

Our red mesh flow media is made of low-density polyethylene (LDPE) and has been designed for resin infusion processing. The open diamond mesh allows for easy flow of resin to ensure complete substrate saturation during the infusion process. The mesh is compatible with most infusion resins and it will not fray when cut. This mesh is pliable and will lay flat on tooling and part surfaces.

Red Flow Media Quick Facts:

Sold in linear yard (LYD) increment (with minimums) OR as pre-made rolls. Break down below:
  • Per LYD with with 10 LYD minimum. Material will be provided in continuous format (Example: Qty. 10 in shopping cart yields 360" length x 60" width)
  • 1 LYD Pre-made Roll (36" length x 60" width)
  • 3.6 LYD Pre-made Roll (129" length x 60" width)
  • 7.2 LYD Pre-made Roll (258" length x 60" width)
  • Full Roll 116 LYD (4200" length x 60" width)

Rock West Composites will NOT return or refund raw material orders.

Additional Information

P/N 3006-D 3006-D-FULLROLL
Materials Nylon Mesh Nylon Mesh
Pattern Diamond Weave Diamond Weave
Color Red Red
Length 0 0
Weight 1.5 150.0

Technical Specifications

MESH FLOW MEDIA DATA SHEET

Download PDF
