Click to view and choose plate sizes available

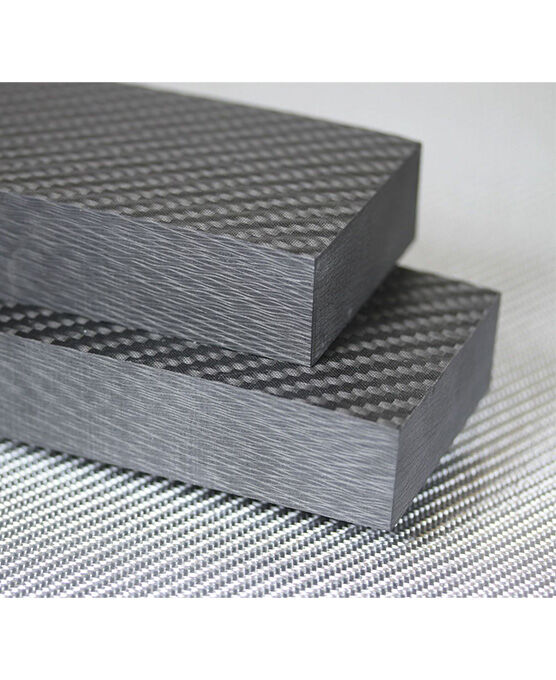

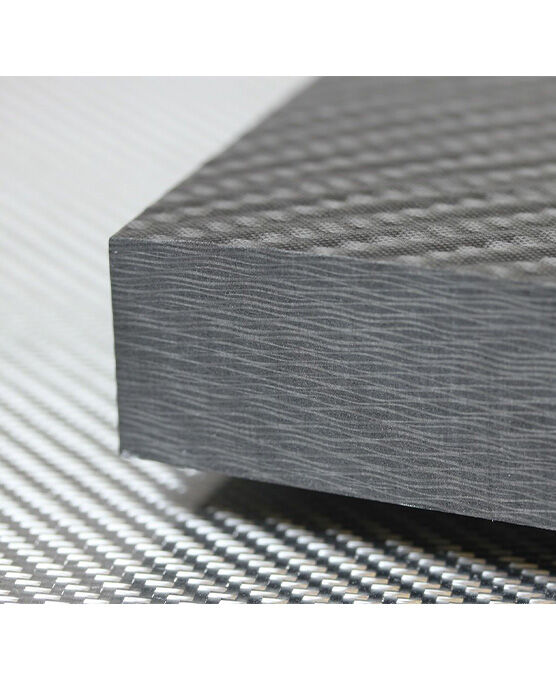

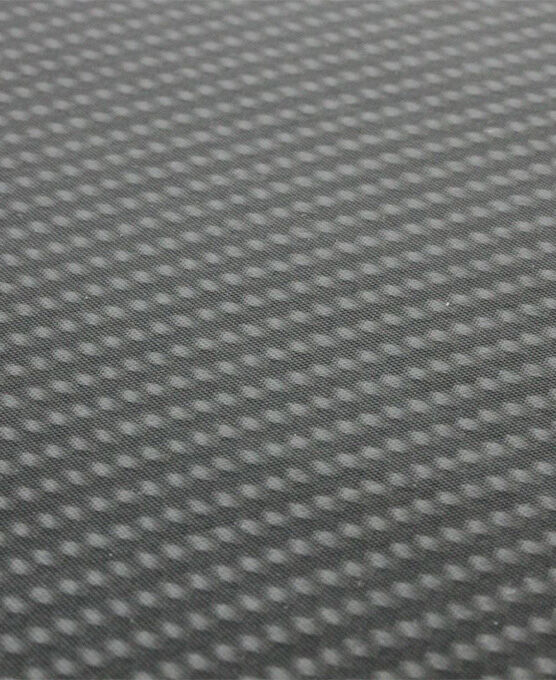

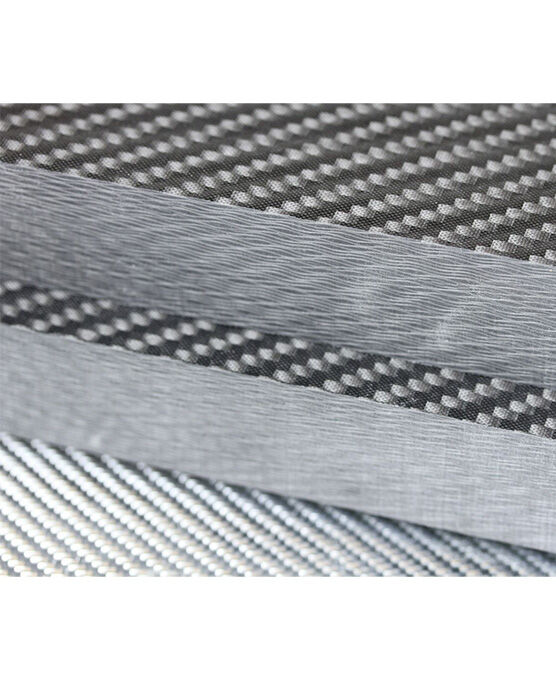

This plate is fabricated via resin infusion and deploys a T700 (or equivalent) carbon fiber. In addition to being stiffer than aluminum carbon fiber plate this thicker version can be machined quite easily and shaped to yield a very interesting aesthetic often seen in knife handles or other products. Other manufacturers have dubbed this plate or ones similar "Artisan". Both sides have a peel ply finish which is matte / textured by default and with a quick cleaning can be bond ready.
| Application | Machining Billet |
|---|---|
| Materials | Standard Modulus Carbon |
| Pattern | 3k 2X2 Twill Weave |
| Color | Black |
| Finish | Matte / Matte |
| Panel Thickness | 0.88 inch / 22.352 mm |
| Plate / Panel Size | 5" x 11" / 127mm x 279.4mm |
| Width | 5.0 |
| Thickness | 0.88 |
| Length | 11 |
| Weight | 2.52 |
| HTS - Harmonized Tariff Code | 6815.13.0000 |
