Tube - Ferrule - 0.75 X 0.99 X 5.5 IN

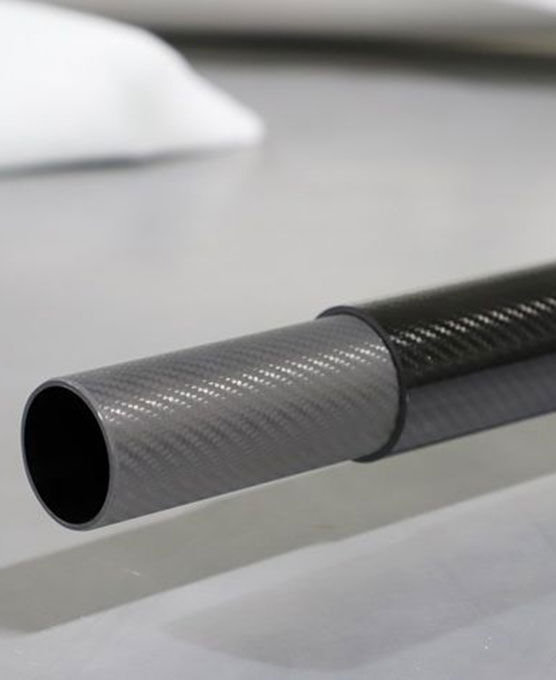

Tube - Ferrule - 0.75 X 0.99 X 5.5 IN image number 0

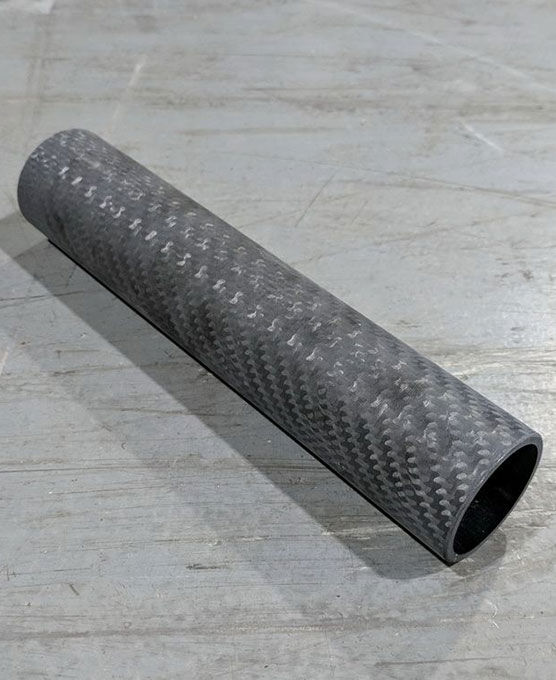

Tube - Ferrule - 0.75 X 0.99 X 5.5 IN image number 1

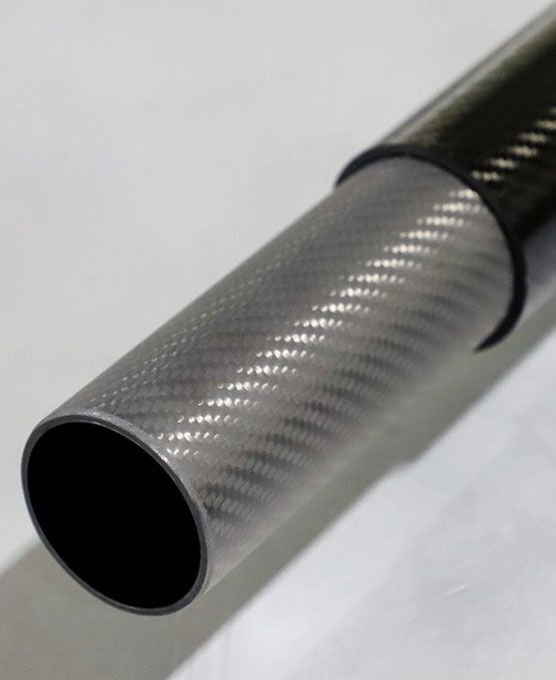

Tube - Ferrule - 0.75 X 0.99 X 5.5 IN image number 2
Tube - Ferrule - 0.75 X 0.99 X 5.5 IN image number 0
Tube - Ferrule - 0.75 X 0.99 X 5.5 IN image number 1
Tube - Ferrule - 0.75 X 0.99 X 5.5 IN image number 2
P/N: 45402-F5.5

P/N: 45402-F5.5
1 - 9
$27.99
10 - 49
$23.79
50 +
$22.59
Contact Info
Project Details
Quantity must be greater than 1.
or
Please select a valid length.
Precision of Measurement
Please select a tolerance option.
    • ~0.005 reduction on outer diameter (OD)."
    • This removes the outer cello wrap gloss finish.
    • Sand outer diameter to specified thickness.
    • Patterns will likely distort in appearance
    Please select a value within the allowed range.
    Sanding Tolerance Options:
    Please select a tolerance option.

If you are requesting bulk discounts, cutting, or standard sanding services only, we will send you a cart with your product selections. You may enter your shipping information and purchase directly at that time. Please note, the cart will not allow edits to the quote. Any changes will have to be completed by our team. If we do not have enough information to complete your quote we will reach out to you directly. If you are requesting additional services or custom sanding, a team member will reach out to you to finalize a quote.

If you request a custom length you will be charged for a full length item (or items if more than 1 is needed to meet your request) plus a cutting fee. You will then be shipped the item sized to your specification and any remaining length of the orginal item (drops). Sanding also incurs a fee which will be included in the quote. All items that have been sanded or cut may not be returned.

Description

When selecting a ferrule for your project you will want to select a ferrule that is 0.010" smaller on the outer diameter than the inner diameter measurement of the tubes you are joining. You will also want to verify that the ferrule wall thickness is equal to or greater than the tubes you are joining.

DETAILED COMPOSITE BONDING INSTRUCTIONS - COMPOSITE BOND PREP WHITE PAPER or VIDEO INSTRUCTION

Additional Information

P/N 45402-F5.5
Application Joining Tubes
Finish Sanded Smooth
HTS - Harmonized Tariff Code 6815.13.0000
Inside Dimension 0.75
Length 5.5
Materials Standard Modulus Carbon
Temperature Rating (F) 238.0
OD 0.99
Outside Dimension 0.99
Tensile Modulus, msi 11.21
Thickness 0.12
Weight 0.14

Tolerances

STOCK TOLERANCE SHEET

Download PDF

Layup Orientation



SKU: 45402 Rev B
Ply # Orientation Location
1 0 Inside
2 0 ↓
3 0
4 90
5 90
6 90
7 45
8 -45
9 0
10 0
11 0
12 45
13 -45
14 90
15 90
16 90
17 0
18 0
19 0
20 0/90 0Outside

  • 0° Fibers maximize bending stiffness. Consider bending the tube over your knee.
  • 45° Fibers maximize torsional stiffness. Typically plied together in an opposing manner, i.e. ±45°. Consider twisting the tube like a vehicle's driveshaft.
  • 90° Fibers maximize crushing stiffness and generally assist in overall tube strength. Consider laying the tube on the ground and stepping on it.
