P/N: 46401-HM
Availability: 30

62” ◾ 1575mm

P/N: 46401-HM
Availability: 30
1 - 9
$135.99
10 - 49
$120.79
50 - 99
$112.59
100 +
$105.39
Contact Info
Project Details
Quantity must be greater than 1.
or
Please select a valid length.
Precision of Measurement
Please select a tolerance option.
    • ~0.005 reduction on outer diameter (OD)."
    • This removes the outer cello wrap gloss finish.
    • Sand outer diameter to specified thickness.
    • Patterns will likely distort in appearance
    Please select a value within the allowed range.
    Sanding Tolerance Options:
    Please select a tolerance option.

If you are requesting bulk discounts, cutting, or standard sanding services only, we will send you a cart with your product selections. You may enter your shipping information and purchase directly at that time. Please note, the cart will not allow edits to the quote. Any changes will have to be completed by our team. If we do not have enough information to complete your quote we will reach out to you directly. If you are requesting additional services or custom sanding, a team member will reach out to you to finalize a quote.

If you request a custom length you will be charged for a full length item (or items if more than 1 is needed to meet your request) plus a cutting fee. You will then be shipped the item sized to your specification and any remaining length of the orginal item (drops). Sanding also incurs a fee which will be included in the quote. All items that have been sanded or cut may not be returned.

Description

The higher the number the better, right? Unless you're golfing that's probably true. Composite materials offer incredible benefits when compared to metals but don't forget, there is a time and a place for each. So let us help you decide! Our high modulus carbon fiber tube is 50% stiffer than standard carbon fiber tubes. High modulus carbon fiber provides excellent thermal conductivity and stability. Our high modulus tubes typically employ 0° & 90° plies throughout the ply sequence / laminate orientation.


For more info on how to design your telescoping setup review our How to Build Your Own INFINITubeV System instrcutions.

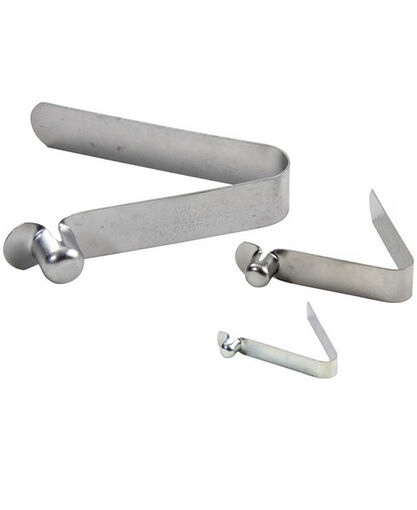

INFINITubeV high modulus tubing is manufactured for use with compression ring clamps, button clips, push button ball lock pins, or you can design your own.


INFINITubeV High Modulus Tubing Quick Facts

  • Very stiff - Good thermal conductivity / stability.
  • Gloss finish, can be sanded to remove gloss. Option available in customization box.
  • Huge diameter range so you can hop on or off anywhere in the spectrum.
  • Use UHMW low friction tape to maintain snug fit.
  • UHMW tape can be used to prevent tubes from pulling apart at full extension
  • All INFINITubeV tubes (part #'s 464xx) have an ultra thin woven fiberglass inner layer to maintain superior machine-ability for hole drilling (if using button clips or locking pins) or slot cutting
  • Great for machining - Fabric inner and outer plies minimize "breakout" typically associated with drilling into composites

Learn about our Roll Wrapping Process.

You may also need

Features & Benefits

Example of INFINITubeV

  • (A): INFINITubeV Size 01
  • (B): INFINITubeV Size 02
  • (C): Low friction tape

Low Friction Tape and Infinitube line

How to Build Your Own Telescoping System

INFINITubeV Specs

Additional Information

P/N 46401-HM
Finish Cello Wrap Gloss
HTS - Harmonized Tariff Code 6815.13.0000
Inside Dimension 0.375
Length 62
Materials High Modulus Carbon
OD 0.476
Outside Dimension 0.476
Tensile Modulus, msi 18.94
Thickness 0.051
Weight 0.25

Tolerances

STOCK TOLERANCE SHEET

Download PDF

Layup Orientation



SKU : 46401-HM Rev NC
  Ply #                Orientation                     Location
1  0/90 Inside
2 90 ↓
3 90
4 0
5 0
6 0
7 0
8 90
9 90
10 0
11 0
12 0
13 0/90 Outside

  • 0° Fibers maximize bending stiffness. Consider bending the tube over your knee.
  • 45° Fibers maximize torsional stiffness. Typically plied together in an opposing manner, i.e. ±45°. Consider twisting the tube like a vehicle's driveshaft.
  • 90° Fibers maximize crushing stiffness and generally assist in overall tube strength. Consider laying the tube on the ground and stepping on it.
