Tube - Round - INFINITubeV - Standard Modulus Carbon + EKOA - Size 02 - 0.500 X 0.601 X 74 Inch- BLOWOUT

0.500" ID INFINITubeV Size 02 ◾ Gloss Finish ◾ Twill Weave ◾ Standard Modulus ◾ 34 MSI

Beautiful natural aesthetics while maintaining and sometimes enhancing the performance of a traditional 100% carbon fiber tubing. This particular carbon fiber fabric tube has an internal diameter (ID) of 0.500" and an outer diameter (OD) of 0.601". EKOA and carbon fiber tubes offers stiff, lightweight and somewhat dampening properties while giving you a natural wood aesthetic.

For this particular set up you can review our  "How to Build Your Own INFINITubeV System

INFINITubeV 0.500" ID EKOA / carbon tubing is manufactured for use with button clips, push button ball lock pins or you can design your own. Specially designed clamps (size 2) are now available. Additional sizes coming soon!

INFINITubeV 0.500" ID EKOA / Carbon Fiber Tubing Quick Facts

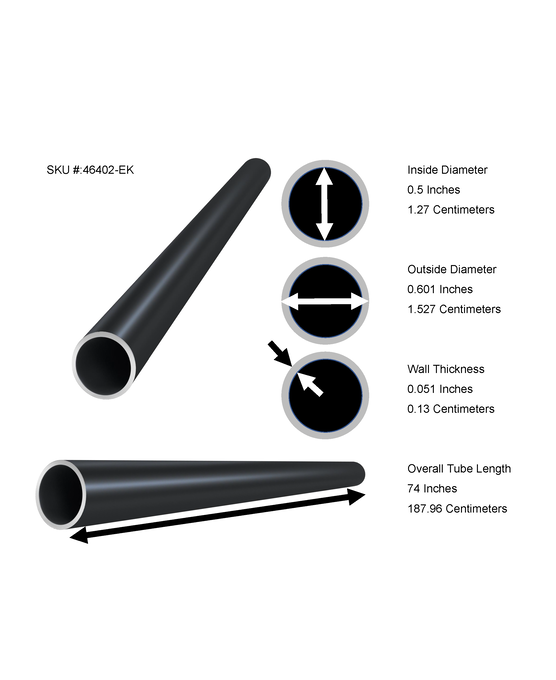

• 0.500" ID x 0.601" OD x Various Lengths
• Gloss finish
• Huge diameter range - 0.25" to 2.625" so you can hop on or off anywhere in the spectrum
• Use UHMW low friction tape to maintain snug fit & a cello wrap gloss finish
• Use the same tape above to prevent tubes from pulling apart at full extension
• All tubes (part #'s 464xx) in INFINITubeV have an ultra thin woven fiberglass inner layer to maintain superior machine-ability for hole drilling (if using button clips or locking pins) or slot cutting
• Great for machining - Fabric inner and outer plies minimize "breakout" typically associated with drilling into composites
• Learn about our Roll Wrapping Process
