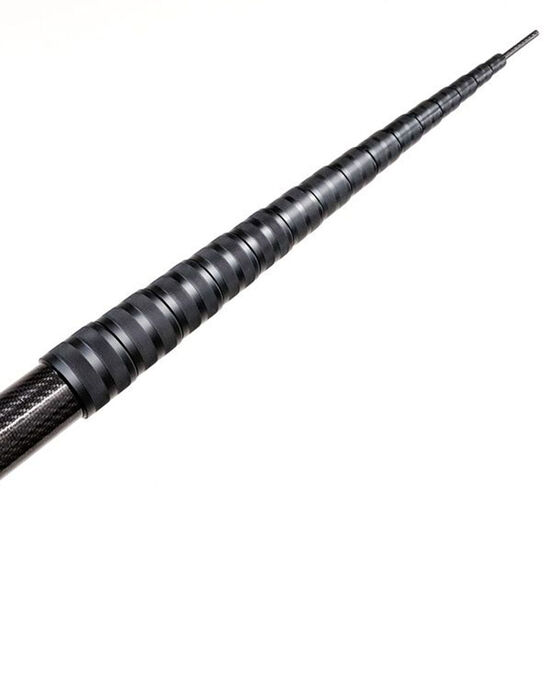

INFINITubeV - SM - 5pc (46402 through 46406) Fully Assembled - Smallest Tube ID 0.50" Biggest Tube ID 1.00"- 4.5' Collapsed to 20' Extended

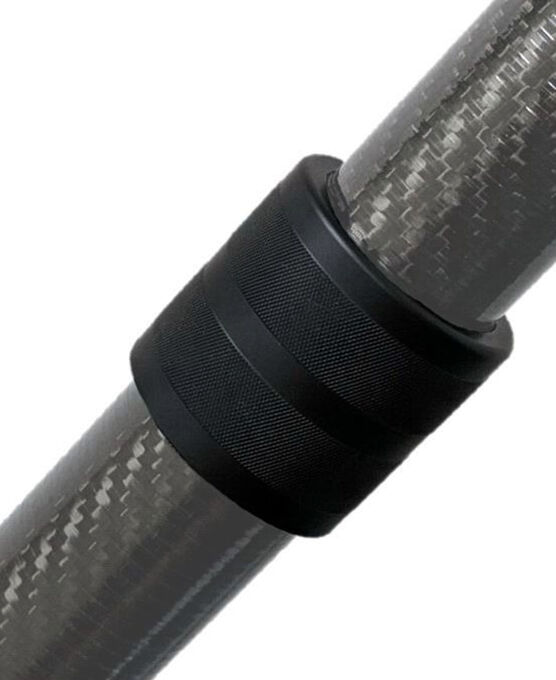

Compression Ring Clamps ◾5 section telescoping◾ 240" Expansion ◾54" Contracted
1
$1,167.99
2
-
4
$964.79
5
-
9
$942.59
10
+
$876.39
Generally available to ship in two to four weeks.

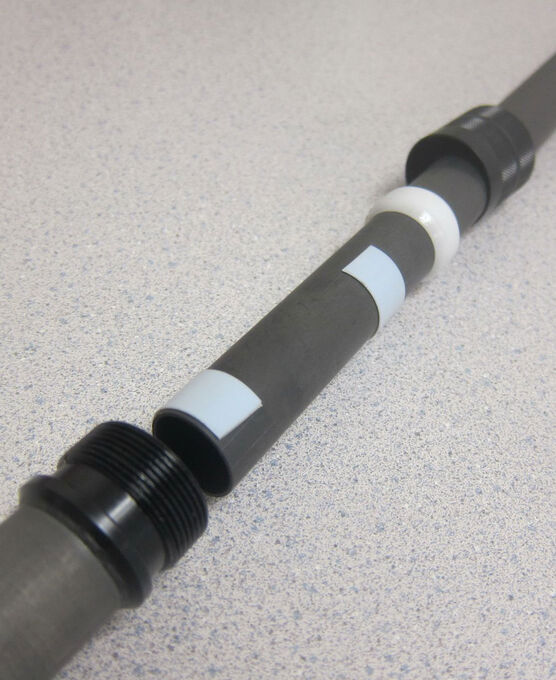

The benefits of the INFINITubeV series telescoping tubing include a huge diameter range—0.25" to 4.000"—so you can hop on or off anywhere in the spectrum. It's compatible for use with 7mil thick UHMW low friction tape to maintain snug fit and ensure long life by reducing friction. You can use the same tape above to limit tubes from pulling apart at full extension and to prescribe max extension. Plus they come with a glass scrim liner.
Additional Information
| P/N | 46639-SM |
|---|---|
| Built To Order | Yes |
| Collapsed Length (Telescoping Tubing) | 54 |
| Extended Length (Telescoping Tubing) | 240 |
| Finish | Cello Wrap Gloss |
| Inside Dimension | 0.5 |
| Length | 54 |
| Major ID | 1.0 |
| Materials | Standard Modulus Carbon |
| Temperature Rating (F) | 180.0 |
| Minor ID | 0.5 |
| Outside Dimension | 1.106 |
| Thickness | 0.05 |
| Weight | 1.0 |
