Rod - Pultruded Unidirectional - 0.019" x 48 Inches

productname image number 0
productname image number 1
productname image number 0
productname image number 1
P/N: 47305-L48
Available Now: 4

P/N: 47305-L48
Available Now: 4
1 - 20
$9.99
21 - 119
$7.79
120 +
$6.59
Contact Info
Project Details
Quantity must be greater than 1.
or
Please select a valid length.
Precision of Measurement
Please select a tolerance option.
    • ~0.005 reduction on outer diameter (OD)."
    • This removes the outer cello wrap gloss finish.
    • Sand outer diameter to specified thickness.
    • Patterns will likely distort in appearance
    Please select a value within the allowed range.
    Sanding Tolerance Options:
    Please select a tolerance option.

If you are requesting bulk discounts, cutting, or standard sanding services only, we will send you a cart with your product selections. You may enter your shipping information and purchase directly at that time. Please note, the cart will not allow edits to the quote. Any changes will have to be completed by our team. If we do not have enough information to complete your quote we will reach out to you directly. If you are requesting additional services or custom sanding, a team member will reach out to you to finalize a quote.

If you request a custom length you will be charged for a full length item (or items if more than 1 is needed to meet your request) plus a cutting fee. You will then be shipped the item sized to your specification and any remaining length of the orginal item (drops). Sanding also incurs a fee which will be included in the quote. All items that have been sanded or cut may not be returned.

Create a Rock West Composites account to build your own customizations.
Estimated lead time for quantities greater than what is Available Now is expected to be at least 4 weeks.
If there is an Available Now quantity listed above, it indicates our quantity in stock. Orders placed today for this quantity or less are expected to ship the next business day.
This rod provides strength and rigidity along the long axis. This pultruded rod is great for reinforcing structures. The pultrusion process guarantees an accurate design and measurement control, perfectly aligned fibers and a smooth surface. Carbon fiber pultrusion is similar to the extrusion of aluminum and thermoplastics. However, instead of injection molding the plastic material, the pultrusion process continuously pulls fibers from rolls, which are then wetted with a matrix material (usually a thermosetting resin like epoxy resin). Subsequently, they are pulled through a heated die, which determines the shape of the profile. Polymerisation of the resin takes place in the die, forming a rigid profile with a diameter corresponding to that of the die and a length that is endless, in theory. Quick Facts For Pultruded Unidirectional Rods Values provided here may vary slightly: Resin: <40% High performance bisphenol A epoxy resin. Fiber: >60% Torayca T700 or equivalent Standard Tg: 248 °F Tensile strength (virgin fiber): 4900 Mpa Tensile modulus (virgin fiber): 230 Gpa Ultimate elongation: 2 %

Additional Information

Application Bending / Tension
Shape Round Rod
Materials Standard Modulus Carbon
Pattern Unidirectional
Color Black
Finish Pultruded

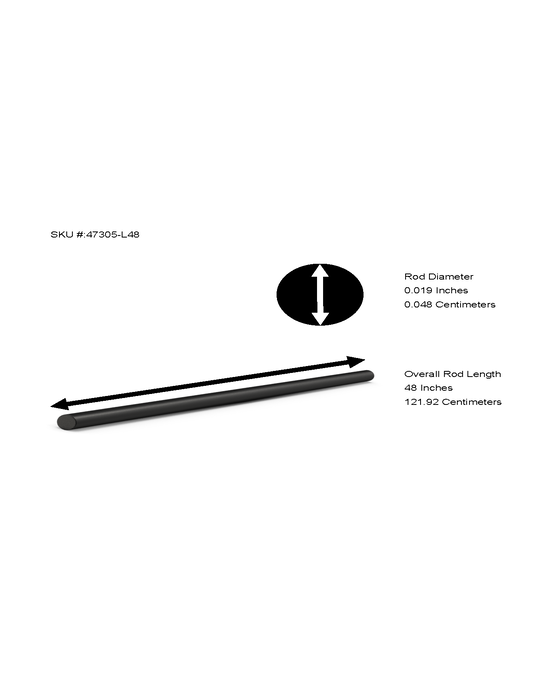

Outside Diameter 0.019
Length 48
Length (max continuous) 48.0
Linear Density 2.0E-4
Volumetric Density 0.055
Weight 7.0E-4
Primary Fiber Toray T700S
Primary Resin / Hardener Bisphenol-F

Technical Data



Minimum Properties Carbon Rods < .156″
     Standard Modulus
Tensile Strength 320 ksi / 2.34 GPa
Tensile Modulus 19.5 msi / 134 GPa
Compressive Strength 270 ksi / 1.90 GPa
Compressive Modulus 19.0 msi / 131 GPa
Fiber Volume 65%
Ultimate Tensile Strain 1.30%
Diameter Tolerance +/-5%
Glass Transition Temperature 100° C
Matrix Material Bis F Epoxy
Weight 0.002 lb. per ft.

Tolerances

Diameter Tolerance: +/- 0.007"
