Rod - Pultruded Carbon Fiber - 0.375 x 10.250 Inch

P/N: 47311-L10.250

$14.99

Quantity

Estimated lead time for quantities greater than what is Available Now is expected to be between 2 and 4 weeks.

Carbon Fiber Rod

This rod provides strength and rigidity along the long axis. This pultruded rod is great for reinforcing structures. The pultrusion process guarantees an accurate design and measurement control, perfectly aligned fibers and a smooth surface. Carbon fiber pultrusion is similar to the extrusion of aluminum and thermoplastics. However, instead of injection molding the plastic material, the pultrusion process continuously pulls fibers from rolls, which are then wetted with a matrix material (usually a thermosetting resin like epoxy resin). Subsequently, they are pulled through a heated die, which determines the shape of the profile. Polymerisation of the resin takes place in the die, forming a rigid profile with a diameter corresponding to that of the die and a length that is endless, in theory. Quick Facts For Pultruded Unidirectional Rods Values provided here may vary slightly: Resin: <40% High performance bisphenol A epoxy resin. Fiber: >60% Torayca T700 or equivalent Standard Tg: 248 °F Tensile strength (virgin fiber): 4900 Mpa Tensile modulus (virgin fiber): 230 Gpa Ultimate elongation: 2 %

Additional Information

Units:

Application	Bending / Tension
Shape	Round Rod
Materials	Standard Modulus Carbon
Pattern	Unidirectional

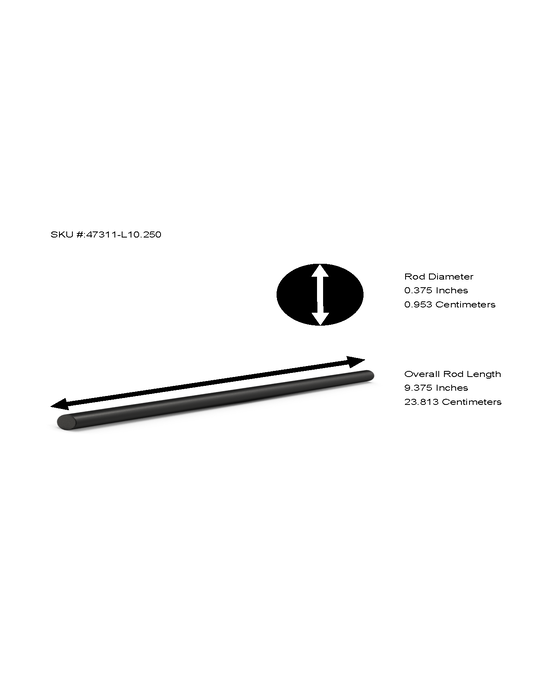

Outside Diameter	0.375
Length	9.375
Length (max continuous)	9.375
Weight	0.07

Calculators

All laminate properties and mechanical calculations are based on Classical Lamination Theory and should be used as a reference only. Rock West Composites does not guarantee these properties or calculations.

Units:

Deflection & Failure of Round Cantilevers

Inputs

Notes:

A green highlight indicates a valid input.
A red box indicates an invalid input.
Part weight is taken into account for all calculations

Label	Value	Units
Point Load	Positive value for downwards force. Negative value for upwards force.	Pounds
Distributed Load (total)	Positive value for downwards force. Negative value for upwards force.	Pounds
Outer Diameter		Inches
Inner Diameter		Inches
Location of Point Load	Number between 0 and the value for Length This is a required field.	Inches
Length	Value up to	Inches

Outputs

Notes:

A green highlight indicates that a sample is unlikely to fail in this manner.
A red highlight indicates that a sample is likely to fail in this manner.

Label	Result	Units
Max Shear Stress		PSI
Max Bending Stress		PSI
Deflection at Point Load		Inches
Max Deflection Location		Inches
Max Deflection		Inches
Deflection at Free End		Inches
Part Weight		Pounds

Deflection & Failure of Simply Supported Round Beams

Inputs

Notes:

A green highlight indicates a valid input.
A red box indicates an invalid input.
Part weight is taken into account for all calculations

Label	Value	Units
Point Load	Positive value for downwards force. Negative value for upwards force.	Pounds
Distributed Load (total)	Positive value for downwards force. Negative value for upwards force.	Pounds
Outer Diameter		Inches
Inner Diameter		Inches
Location of Point Load	Number between 0 and the value for Length This is a required field.	Inches
Length	Value up to	Inches

Outputs

Notes:

A green highlight indicates that a sample is unlikely to fail in this manner.
A red highlight indicates that a sample is likely to fail in this manner.

Label	Result	Units
Max Shear Stress		PSI
Max Bending Stress		PSI
Deflection at Point Load		Inches
Max Deflection Location		Inches
Max Deflection		Inches
Part Weight		Pounds

Round Tubes and Rods - Axial Tension and Compression

Notes

Tension uses positive notation and compression uses negative notation.
End conditions are critical when considering buckling:
- Fixed = constrained in both translation and rotation.
- Pinned = constrained only in translation (ie. bolted joints).
- Free = not constrained (similar to a cantilevered end).
Long, skinny parts in compression are more succeptible to fail in buckling
Only parts in compression can fail in buckling

Inputs

Notes:

A green highlight indicates a valid input.
A red box indicates an invalid input.

Label	Value	Units
Load	Positive value indicates tension. Negative value indicates compression.	Pounds
Outer Diameter		Inches
Inner Diameter		Inches
Length	Value up to	Inches
End Conditions		N/A

Outputs

Notes:

A green highlight indicates that a sample is unlikely to fail in this manner.
A red highlight indicates that a sample is likely to fail in this manner.

Label	Result	Units
Max Axial Stress		PSI
1st Order Buckling Critical Load		Pounds
Change in Length		Inches (linear elastic only)
Part Weight		Pounds

Round Tubes and Rods - Critical Speed and Torque

Inputs

Notes:

A green highlight indicates a valid input.
A red box indicates an invalid input.

Label	Value	Units
Outer Diameter		Inches
Inner Diameter		Inches
Length	Value up to	Inches
Applied Torque		Foot-Pounds
Configuration		N/A

Outputs

Notes:

A green highlight indicates that a sample is unlikely to fail in this manner.
A red highlight indicates that a sample is likely to fail in this manner.

Label	Result	Units
Max Allowable Torque		Foot-Pounds
Twist Angle at Specified Torque		Degrees
Critical Speed _{(no factor of safety)}		RPM
Part Weight		Pounds

Technical Specifications

Minimum Properties:

Tensile Strength: 250 ksi | 1.72 GPa
Tensile Modulus: 20 msi | 138 GPa
Ultimate Shear Strength: 6.0 ksi | 41.3 Mpa
Ultimate Tensile Strain: 1.5%
Flexural Strength: 265 ksi | 1.83GPa
Flexural Modulus: 19 msi | 131 GPa
Coefficient of Thermal Expansion: -0.1 ppm/ºF | -0.2ppm/ ºC
Density: 0.054lbs/in³ | 1.5g/cm³
Fiber Volume: 62%
Glass Transition Temperature: 100ºC
Matrix Material: Bisphenol Epoxy Vinyl Ester

Tolerances

Diameter Tolerance: +/- 0.007"
