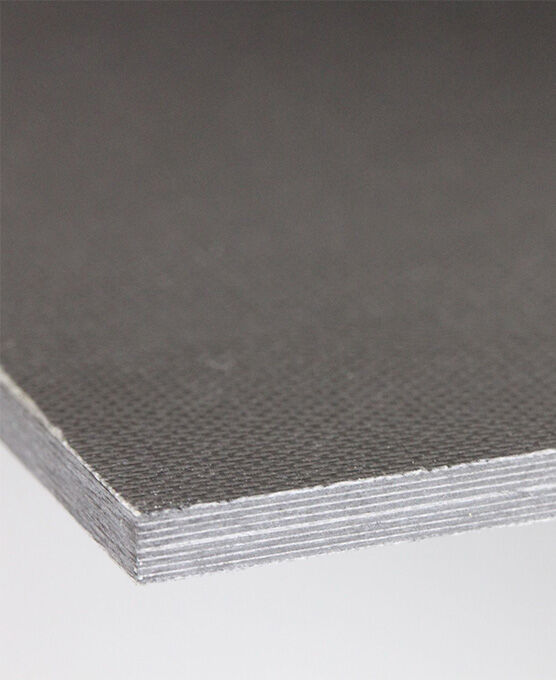

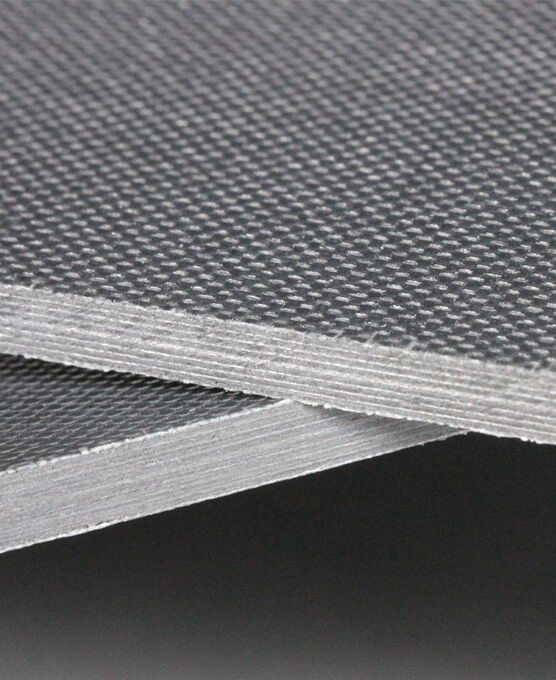

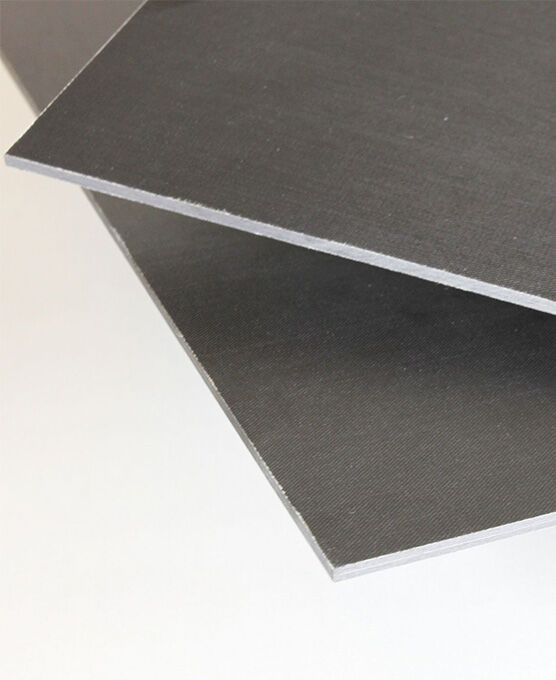

High Modulus (HR40) with Woven Glass Skins - 38" wide x 0.119" Thick - Peel Ply Both Sides (Various Sizes Available)
Carbon Fiber Plate - High Modulus - Peel Ply - 60" x 38" x 1/8"
$3,599.99
Carbon Fiber Plate - High Modulus - Peel Ply - 120" x 38" x 1/8"
$6,500.00
Estimated lead time for quantities greater than what is Available Now is expected to be between 2 and 4 weeks.
High Performance & Quasi Isotropic - Woven Fiberglass Top & Bottom
High Performance ♦ Quasi Isotropic ♦ Woven Fiberglass Top & Bottom
You may also need
Additional Information
| P/N | 47631-HM-HALF | 47631-HM |
|---|---|---|
| Materials | High Modulus Carbon | High Modulus Carbon |
| Pattern | Fiberglass Scrim | Fiberglass Scrim |
| Color | Black | Black |
| Finish | Matte / Matte | Matte / Matte |
| Panel Thickness | 0.119000 | 0.119000 |
| Width | 38.0 | 38.0 |
| Thickness | 0.12 | 0.12 |
| Length | 60 | 120 |
| Weight | 25.0 | 50.0 |
Layup Orientation
47631-HM-GROUP
| Ply # | Orientation (degrees) | Location |
|---|
- 0° fibers maximize bending stiffness and run along the length of the part. Consider bending a tube over your knee.
- 45° fibers maximize torsional stiffness and are typically plied together in an opposing manner, i.e. ±45°. Consider twisting a tube like a vehicle's driveshaft.
- 90° (or "hoop") fibers maximize crushing stiffness and generally assist in overall durability. Consider laying a tube on the ground and stepping on it.
