Angle - 90 Degree w/radius - 3.0" legs x ~0.13" Thick x 36 inch

productname image number 0
productname image number 1
productname image number 2
productname image number 3
productname image number 4
productname image number 5
productname image number 0
productname image number 1
productname image number 2
productname image number 3
productname image number 4
productname image number 5
P/N: 704-33-36

36 Inch Long Piece - 3" Legs - 0.13" Thick

P/N: 704-33-36
1 - 11
$473.99
12 +
$450.79
Contact Info
Project Details
Quantity must be greater than 1.
or
Please select a valid length.
Precision of Measurement
Please select a tolerance option.
    • ~0.005 reduction on outer diameter (OD)."
    • This removes the outer cello wrap gloss finish.
    • Sand outer diameter to specified thickness.
    • Patterns will likely distort in appearance
    Please select a value within the allowed range.
    Sanding Tolerance Options:
    Please select a tolerance option.

If you are requesting bulk discounts, cutting, or standard sanding services only, we will send you a cart with your product selections. You may enter your shipping information and purchase directly at that time. Please note, the cart will not allow edits to the quote. Any changes will have to be completed by our team. If we do not have enough information to complete your quote we will reach out to you directly. If you are requesting additional services or custom sanding, a team member will reach out to you to finalize a quote.

If you request a custom length you will be charged for a full length item (or items if more than 1 is needed to meet your request) plus a cutting fee. You will then be shipped the item sized to your specification and any remaining length of the orginal item (drops). Sanding also incurs a fee which will be included in the quote. All items that have been sanded or cut may not be returned.

Create a Rock West Composites account to build your own customizations.
Estimated lead time for quantities greater than what is Available Now is expected to be at least 4 weeks.
3" Legs x ~0.13" Thick x 36" Long

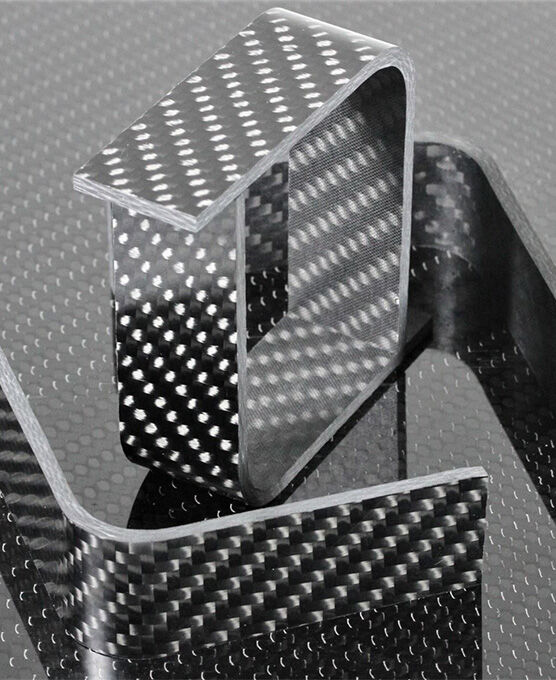

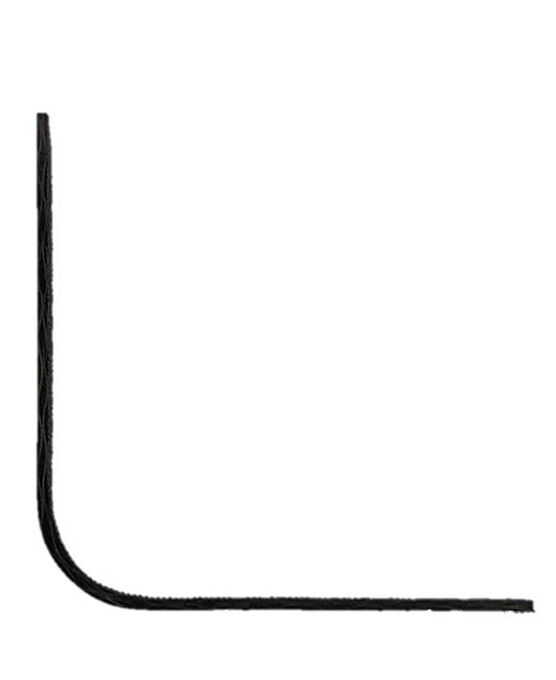

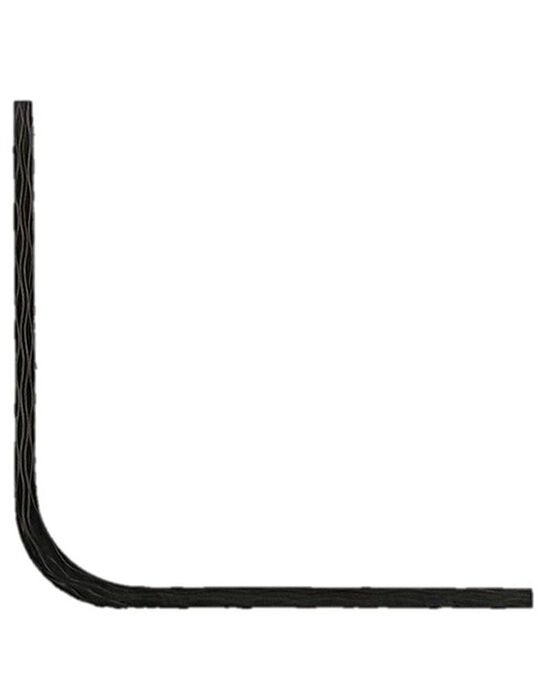

Our Carbon Fiber all Fabric 90° with ~0.5" internal radius angle makes for very lightweight mounting brackets or other hardware. We make the angles in house using the resin infusion process. The layup consists of 4 plies of 12K twill part # 13000-D which is a fabric (2x2 Twill Weave). The epoxy resin system used in the infusion process is our Rhino 1411 / 4111.

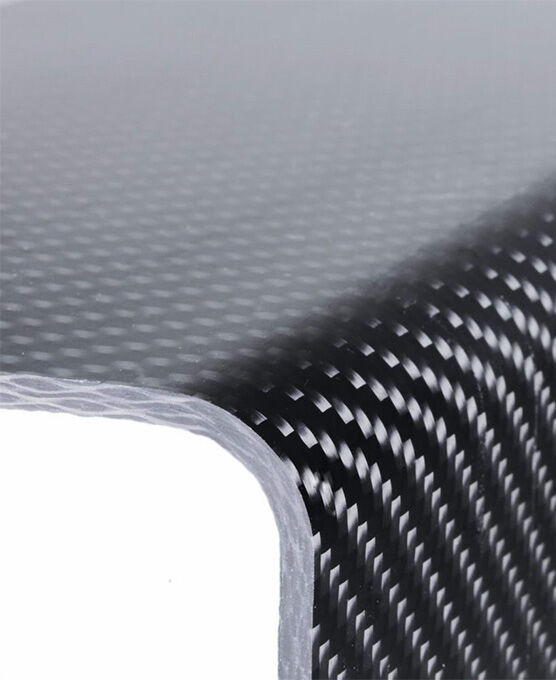

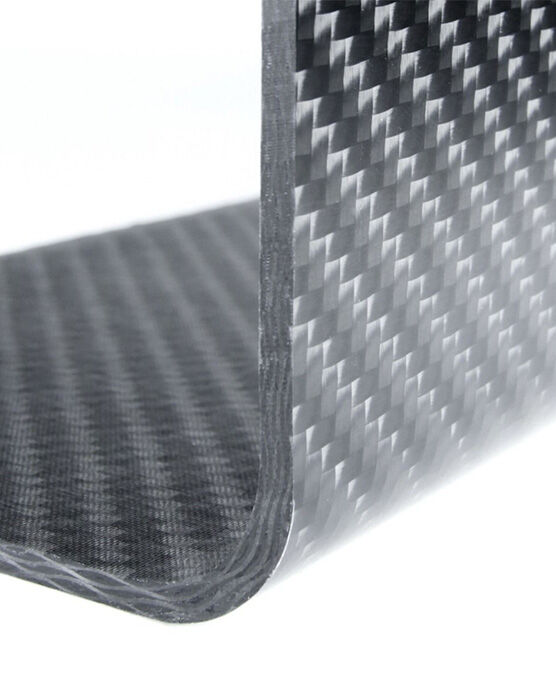

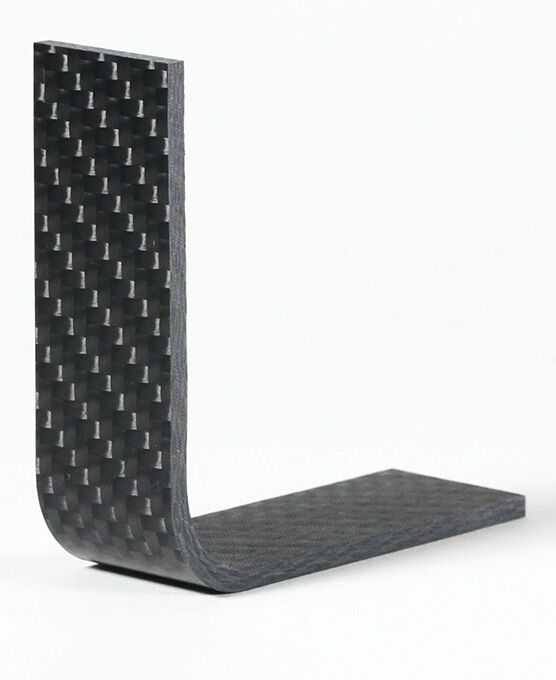

The twill weave throughout the entire angle provides a beautiful aesthetic and a better surface for machining. The outside features a matte smooth surface and the inside has a textured peel ply surface.

If you order a qty of 1, you will receive one 12" long angle that has 3" legs. The thickness is roughly ~0.13". To view our stock tolerances for angles please click the Technical Tab.

Additional Information

Materials Standard Modulus Carbon
Pattern 12k 2X2 Twill Weave
Angle Corner Style With Radius
Angle Degree 90
Angle Finish Smooth Matte Outside / Peel Ply Inside
Angle Leg Length 3.00
Angle Thickness 0.13" (3.3mm)
Thickness 0.13
Length 36
Length (max continuous) 36.0
Weight 1.34
Max Operating Temp- (Tg) 150F to 174F
HTS - Harmonized Tariff Code 6815.13.0000

Tolerances

STOCK ANGLE TOLERANCE SHEET

Download PDF
