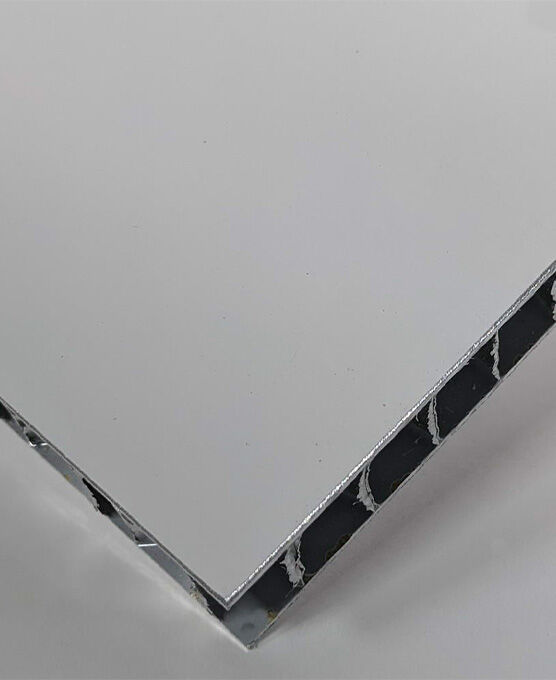

Sandwich Panel – Kynar® White Finish - Aluminum 3.6lb Honeycomb Core (3/8" cell) - Aluminum Skins (0.040") - 48" X 96" x 0.50" (1219 x 2438 x 12.7mm)

P/N: 74029-4896

1/2" Thick ◾ 48" x 96" ◾ Kynar® White

P/N: 74029-4896
1
$1,491.99
2 - 4
$1,425.79
5 - 9
$1,333.59
10 - 24
$1,269.39
25 +
$1,195.19

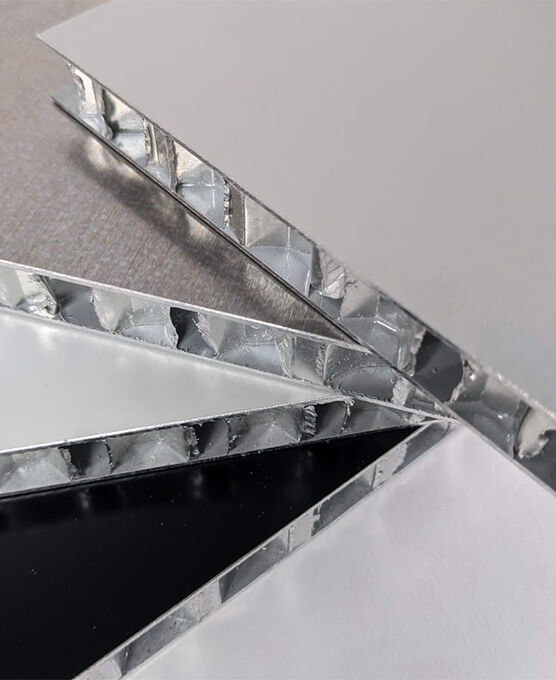

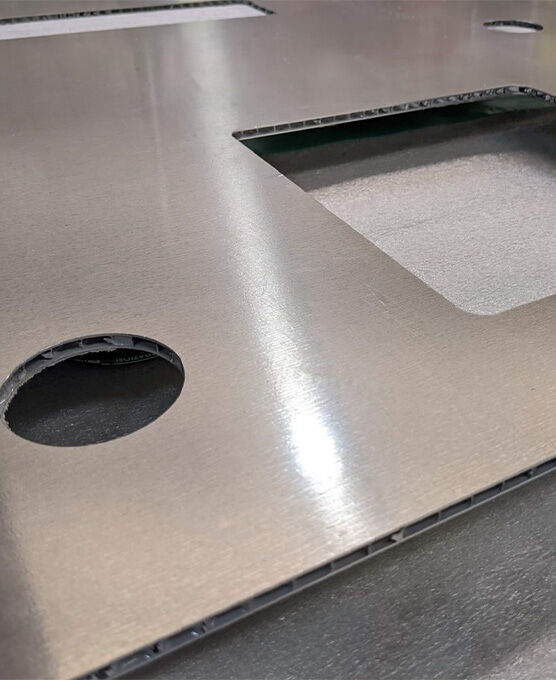

Aluminum honeycomb, Aluminum Skin rigid panel

Description

Stock Aluminum Honeycomb Panels are comprised of 5052-H32 Kynar® White Finish Face Sheets laminated to a 3/8” cell - 3003 alloy 3.6 lbs./FTᶟ Aluminum Honeycomb Core. A two-part commercial grade epoxy with a service temperature between -50°F and 250°F is used as the bonding agent. The average Lap Shear strength for our stock panels is 900-psi at 73°F and 1205-psi at -40°F.

Features & Benefits

These stock panels are A+ Fire Rated and are in accordance with ASTM test method E84 – 10a “Standard Test Method for Surface Burning Characteristics of Building Materials.” Report is available upon request. Rock West Composites takes no responsibility for actual performance in customer products.

We also offer panels with Kynar® Finish. Kynar® coating or PVDF coating (polyvinylidene fluoride) is a pure thermoplastic fluoropolymer that is non-reactive and possesses multiple coating benefits. Kynar® PVDF coating is a chemical resistant, thick film barrier coating primarily used on chemical processing equipment due to it's low weight and low thermal conductivity. This coating is unaffected by most chemicals and solvents, and has excellent wear and abrasion resistance. Kynar® PVDF coatings are especially resistant to solvents, acids and have a very low density compared to similar fluoropolymers. Kynar® PVDF coatings for steel, aluminum, and other metals also have a high dielectric strength, excellent resistance to weathering elements in harsh environments. Along with the ability to self extinguish, Kynar® PVDF coating material generates little smoke in the event of a fire.

Additional Information

P/N 74029-4896
Core Thickness 0.42
Finish Kynar® White (High Performance Coating)
Materials Aluminum
Panel Thickness 0.50
Plate / Panel Size 48" x 96" / 1219.2mm x 2438.4mm
Skin Thickness 0.04
Weight 40.0

Technical Data



5052-H32 Skins 3/8-3003 Alum Honeycomb
Hardness, Brinell 68 Density 3.6 lbs/ftᶟ
Ultimate Tensile Strength 38000 psi Stabilized Crush Resistance 150 psi
Tensile Strength 31000 psi Shear Strength 240 psi (L) 140 psi (W)*
Poisson’s Ratio 0.33 Shear Modulus 46 ksi (L) 23 ksi (W)*

*(L) – Longitudinal Direction, Parallel to core ribbon. (W) – Transverse Direction, Perpendicular to Core Ribbon



Panel Thickness Face Skin Thickness Panel Weight Deflection @500lbs*
1.0 inch 0.040 45 lbs 0.008 in
0.75 inch 0.040 44 lbs 0.014 in
0.50 inch 0.040 40 lbs 0.032 in
0.375 inch 0.040 39 lbs 0.059 in
0.25 inch 0.040 38 lbs 0.147 in
0.125 inch 0.040 22 lbs N/A

*Note – FEA Load Scenario: Fixed at all edges; Applied Load: Uniform

Tolerances

Flatness: +/- 0.008” Radial Feet

Thickness: +/- 0.015in

Length and Width: +/- 0.125in
