High-Modulus Carbon Flex Core, 2lb, 1/2" CRV Cell Shape - 30"L x 30"W x 0.50"T, Lot # 201909105

P/N: 800107-08-D
Availability: 4

0.50" x 30" x 30" ◾ 2.0 LB/ft^3

P/N: 800107-08-D
Availability: 4
$3,437.50

Description

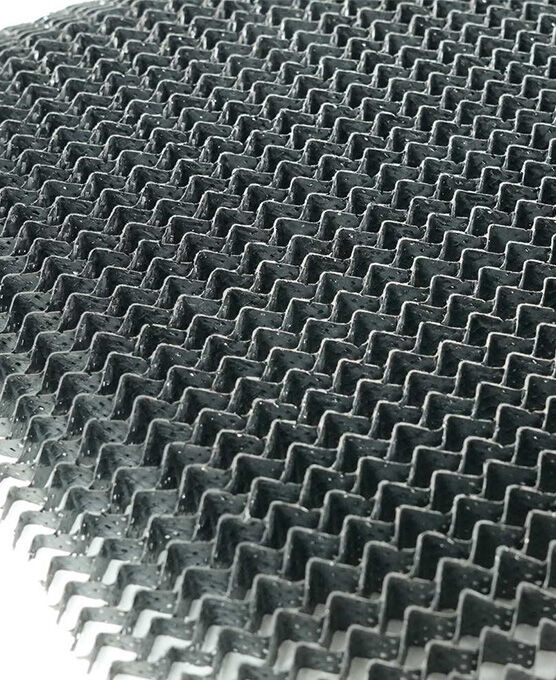

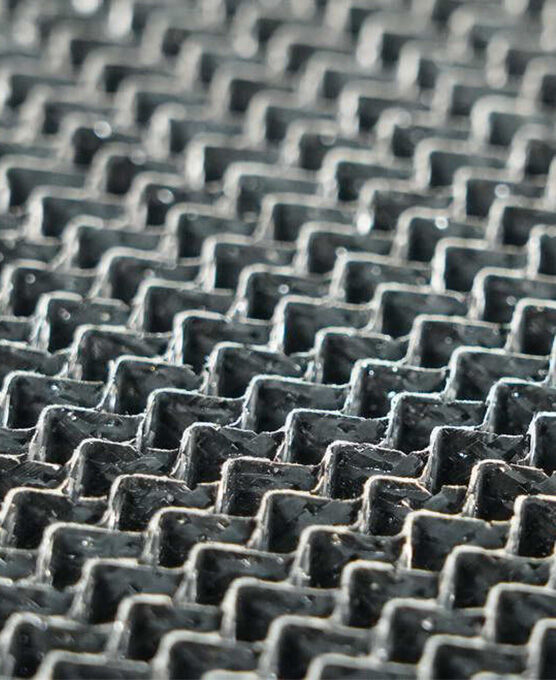

This core was designed & Manufactured by Patz Materials & Technologies for use in space-based reflectors, where mass, CTE, modulus, and temperature performance are all critical factors. It features gas-permeable cell-walls for applications that require venting or pressure-equalization. The unique geometry of the cells allows the material to conform to complex shapes with far less splicing. The interlocking design makes it possible to create seamless installations (NO potted seams) simply by bonding individual panels together node-to-node. With an impressive strength to weight ratio, low outgassing, and inherent gas-permeability, High Modulus Carbon Flex Core is an ideal solution for space-based structures of any shape.

Features & Benefits

This aerospace honeycomb uses include aircraft galleys, flooring, partitions, aircraft leading and trailing edges, missile wings, radomes, antennas, military shelters, fuel tanks, helicopter rotor blades and navy bulkhead joiner panels.

  • Fire resistant (self extinguishing)
  • High strength-to-weight ratio
  • Corrosion resistant
  • Excellent dielectric properties
  • Thermally insulating
  • High toughness
  • Excellent creep and fatigue performance
  • Good thermal stability
  • Compatible with most adhesives used in sandwich composites
  • Long shelf life. The mechanical properties referenced are maintained for 10 years minimum if not exposed to moisture, weather or any normal hazard.

Additional Information

P/N 800107-08-D
Application Space & Stable Structures
Brand Patz Materials
Exportable No
Materials High Modulus Carbon
REACH SCHV JUN-2022
RoHS 2015/863/EU
Thickness 0.5
Weight 0.085

Tolerances

  • Length: ± 0.5"
  • Width: ± 0.5"
  • Thickness: ± 0.006″ (under 2″ thick)
  • Density: ±10%
  • Cell Size: ±10%
