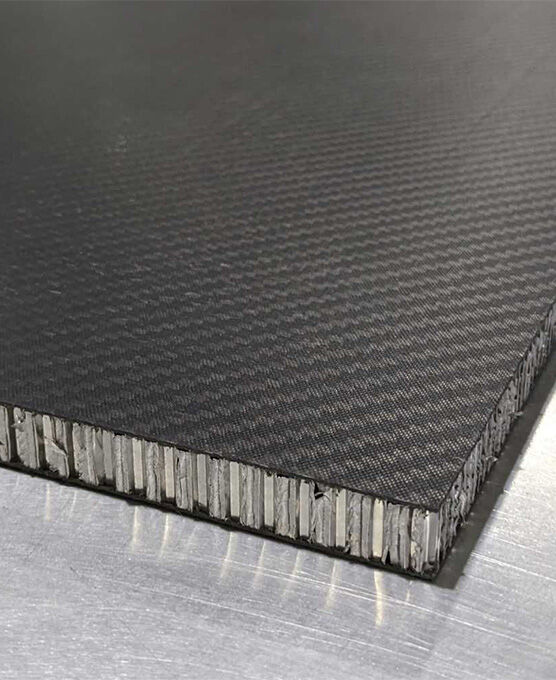

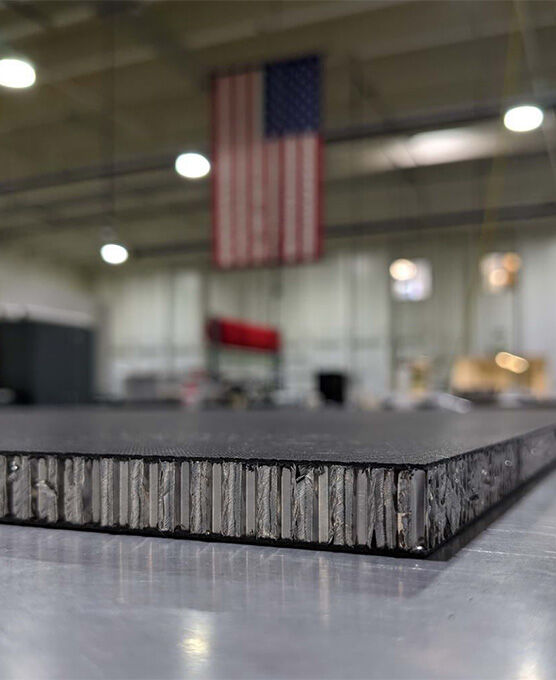

Sandwich Panel - Aluminum 3.1 Cubic ft Honeycomb Core (0.210") - Twill Carbon Fiber Skins (0.02") - Matte/Matte - 24 x 24 x 0.250 inch

P/N: 902-22

1/4" Thick ◾ 0.02" Skins ◾ 24" x 24" / 609mm x 609mm

P/N: 902-22
1 - 19
$517.99
20 +
$490.79
Estimated lead time for quantities greater than what is Available Now is expected to be at least 4 weeks.

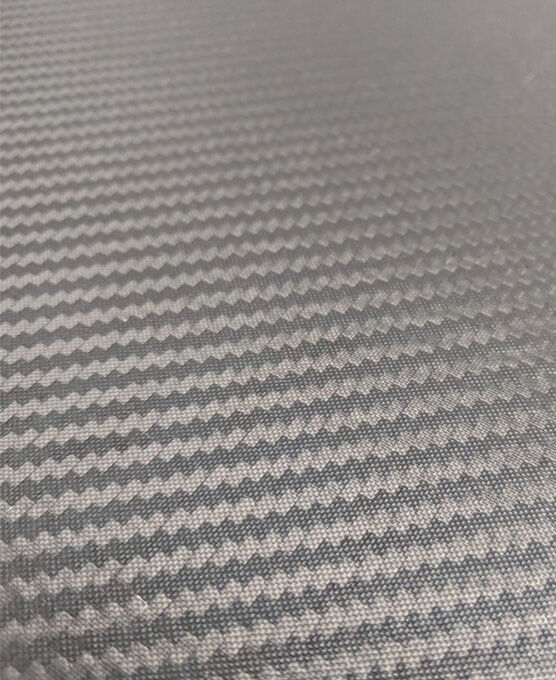

Lightweight, rigid structure with woven smooth matte finish
Sandwich Panel - Aluminum 3.1lb/ft^3 Honeycomb Core (0.210") - Twill Carbon Fiber Skins (0.02") - Matte/Matte - 24 x 24 x 0.250 inch

Additional Information

Materials Carbon Fiber Skins / Aluminum Honeycomb Core
Pattern 3k 2X2 Twill Weave
Color Black
Finish Matte / Matte
Panel Size 24" x 24"
Panel Thickness 0.250
Skin Thickness 0.02
Skin Thickness V2 0.02" (2 Plies)
Skin Material Standard Modulus Carbon
Core Material Aluminum Honeycomb
Core Thickness 0.21
Core Thickness V2 0.210"
Plate / Panel Size 24" x 24" / 609.6mm x 609.6mm
Length 0
Weight 1.63
