Sandwich Panel - Aluminum 3.1 Cubic ft Honeycomb Core (0.960") - Twill Carbon Fiber Skins (0.04") - Matte/Matte - 48 x 48 x 1.040 inch (Requires Shipping Crate + Freight)
1.04" Thick ◾ 0.04" Skins ◾ 48" x 48" / 1219mm x 1219mm
1
-
4
$3,007.99
5
+
$2,849.79
Estimated lead time for quantities greater than what is Available Now is expected to be between 2 and 4 weeks.
If there is an Available Now quantity listed above, it indicates our quantity in stock. Orders placed today for this quantity or less are expected to ship the next business day.

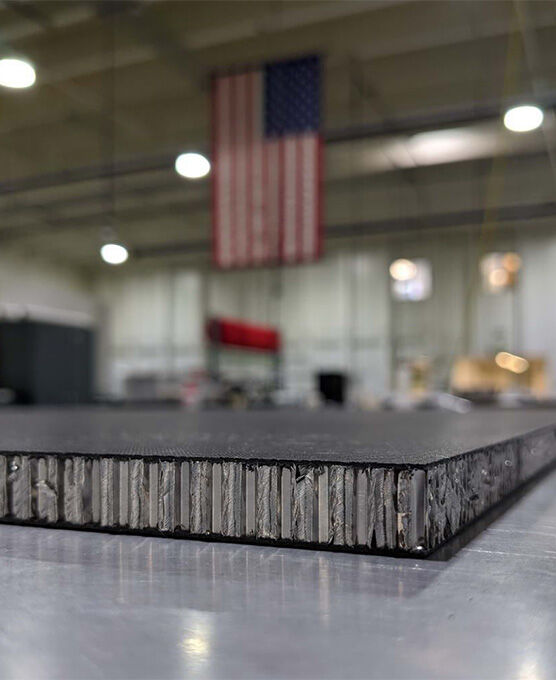

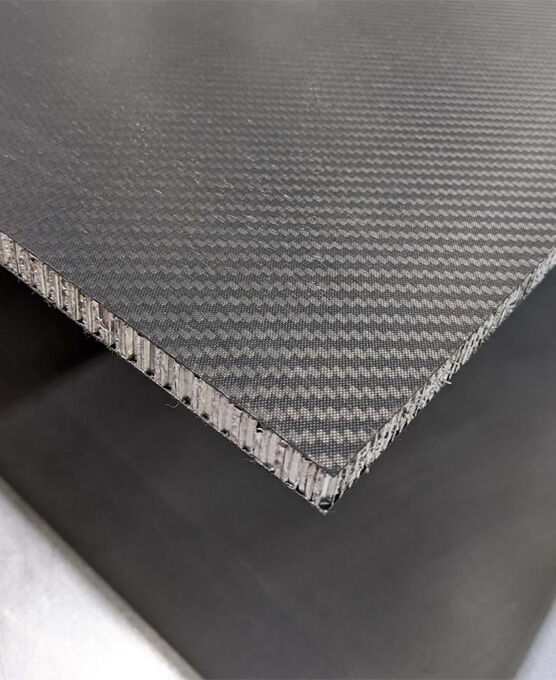

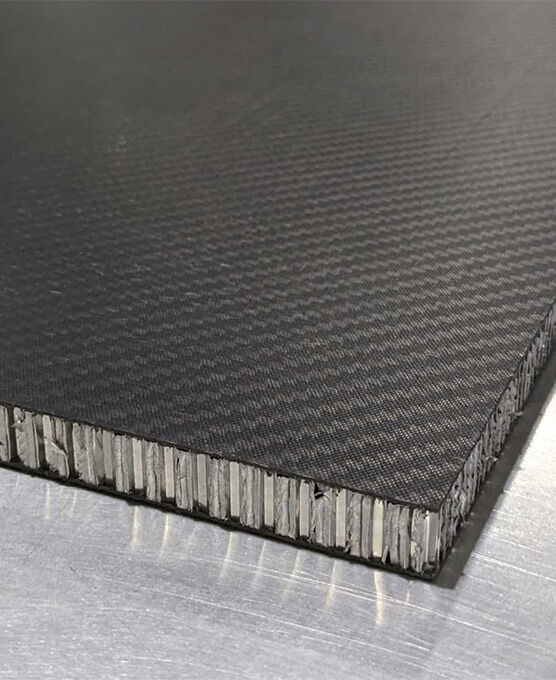

Lightweight, rigid structure with woven smooth matte finish
Sandwich Panel - Aluminum 3.1lb/ft^3 Honeycomb Core (0.960") - Twill Carbon Fiber Skins (0.04") - Matte/Matte - 48 x 48 x 1.040 inch (Requires Shipping Crate + Freight)
Additional Information
| Materials | Carbon Fiber Skins / Aluminum Honeycomb Core |
|---|---|

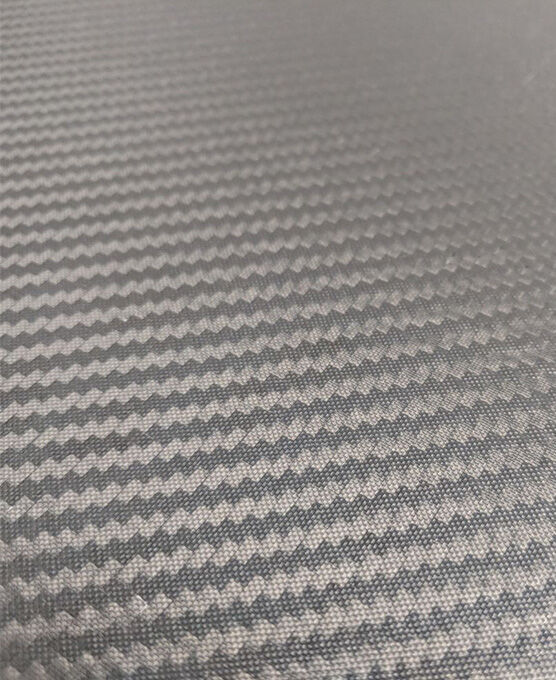

| Pattern | 3k 2X2 Twill Weave |
| Color | Black |
| Finish | Matte / Matte |
| Panel Size | 48" x 48" |
| Panel Thickness | 1.040 |
| Skin Thickness | 0.04 |
| Skin Thickness V2 | 0.04" (4 Plies) |
| Skin Material | Standard Modulus Carbon |
| Core Material | Aluminum Honeycomb |
| Core Thickness | 0.96 |
| Core Thickness V2 | 0.960" |
| Plate / Panel Size | 48" x 48" / 1219.2mm x 1219.2mm |
| Length | 0 |
| Weight | 14.39 |
