Quick Release Ball Lock Pin - Button Head - 0.25" x 1.25"
$26.64
The Available Quantity listed above is what we have in inventory for this item. Provided there has not been a prior sale, you can expect an order placed today, for this quantity or less, to ship the next business day. For quantities over the number available:
Generally available to ship in two to four weeks.
Quick Release Ball Lock Pin - Button Head - 0.25" x 1.25"

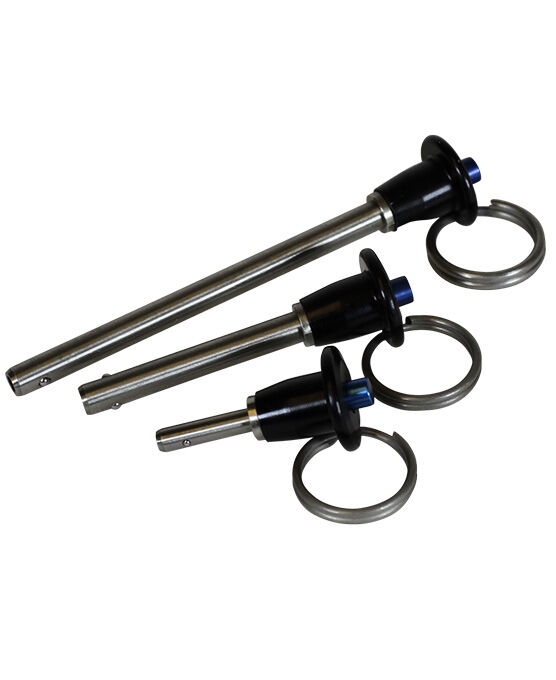

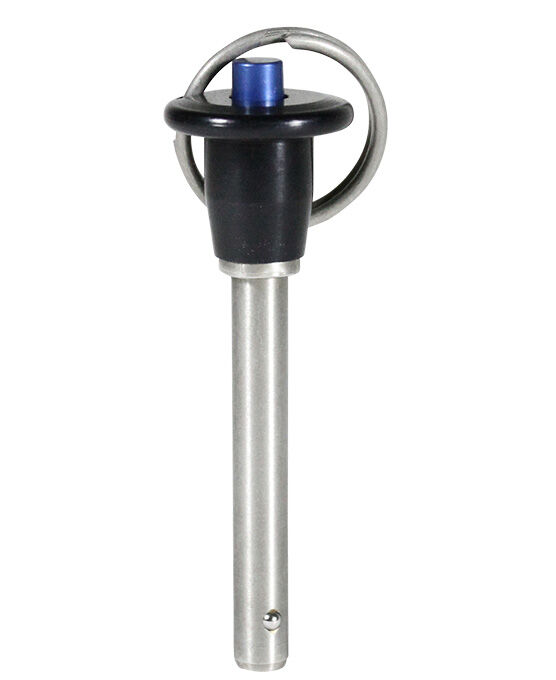

These pins will not release until the button on the handle is depressed. Once the button is depressed, the balls retract into the shank allowing the pin to be inserted into or out of a hole. Handles are made from 380 aluminum and anodized black, shank is made from 300 series stainless steel for superior corrosion resistance. All pins are supplied with a stainless steel split ring for attaching a cable/tether assembly (not included) if desired.
- Stainless steel shank / Anodized aluminum head
- Must use a 0.250" carbide drill bit
- Hand drilling possible though not recommended
- Rock West Composites will not perform the drilling
- Calculated double shear 2200 (lbs)
You may also need
Additional Information
| P/N | B-25-125 |
|---|---|
| Brand | Rock West Composites |
| Length | 1.25 |
| Weight | 0.04 |
