Quick Release Ball Lock Pin - Button Head - 0.25" Shank Diameter (+ length options)

productname image number 0
productname image number 1
productname image number 0
productname image number 1
P/N: B-25-100
$27.89
P/N: B-25-125
Available Now: 6
$26.64
BLOWOUT
P/N: B-25-150
Available Now: 8
$21.77
BLOWOUT
P/N: B-25-175
Available Now: 2
$20.75
P/N: B-25-250
$31.14
BLOWOUT
P/N: B-25-300
Available Now: 2
$22.85
P/N: B-25-350
Available Now: 3
1 - 99
$32.62
100 - 499
$23.19
500 - 699
$21.69
700 +
$21.46
BLOWOUT
P/N: B-25-400
Available Now: 7
$24.92
Estimated lead time for quantities greater than what is Available Now is expected to be at least 4 weeks.

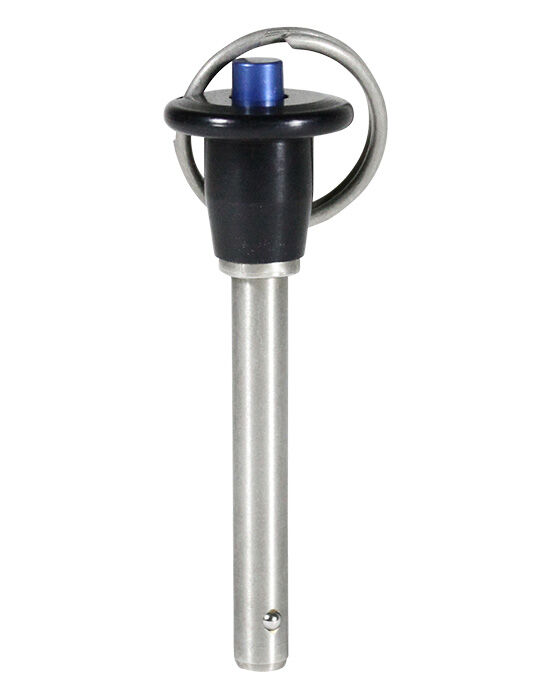

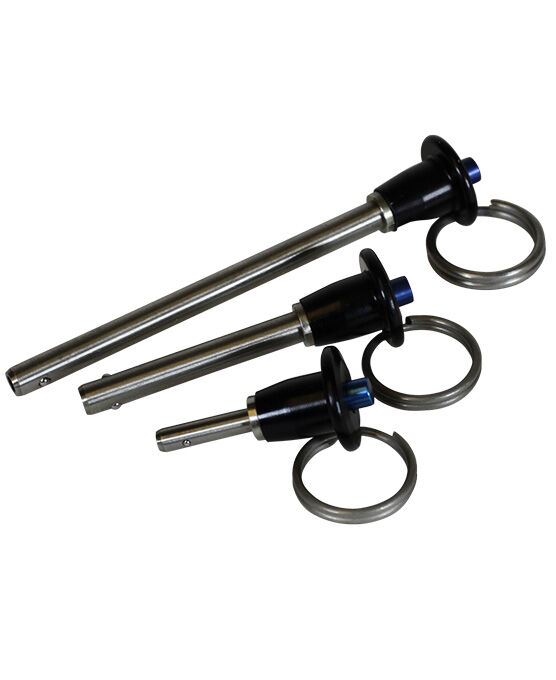

These pins will not release until the button on the handle is depressed. Once the button is depressed, the balls retract into the shank allowing the pin to be inserted into or out of a hole. Handles are made from 380 aluminum and anodized black, shank is made from 300 series stainless steel for superior corrosion resistance. All pins are supplied with a stainless steel split ring for attaching a cable/tether assembly (not included) if desired. Stainless steel shank / Anodized aluminum head Must use a 0.250" carbide drill bit Hand drilling possible though not recommended Rock West Composites will not perform the drilling Calculated double shear 2200 (lbs)

You may also need

Additional Information

P/N B-25-100 B-25-125 B-25-150 B-25-175 B-25-250 B-25-300 B-25-350 B-25-400
Panel Thickness 0.100000 0.100000 0.100000 0.100000 0.100000
Thickness 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1
Length 1 1.25 1.5 1.75 2.5 3 3.5 4
Length (max continuous) 1.0 1.25 1.5 1.75 2.5 3.0 3.5 4.0
Weight 0.04 0.04 0.05 0.05 0.06 0.07 0.08 0.08
