CARBONNect - Fixed Connector Kit - Aluminum - For 1.0-inch ID Round Tubing with .06-inch Wall
For 1.0-inch ID Round Tubing with .06-inch Wall
1
-
99
$56.99
100
+
$46.79
Don't forget the Drill Jig Kit if this is a first time order!
Description
Using this multi-part Fixed Connector set, you can add a 90° connection to any point on carbon tubes of 1", 1.5" and 2" ID. This is a lighter weight connection than the removable version. Requires tubes with 1/16” wall thickness.
- Form a “T” connection at any point along a tube
- Use to form handrails
- Use to form trusses

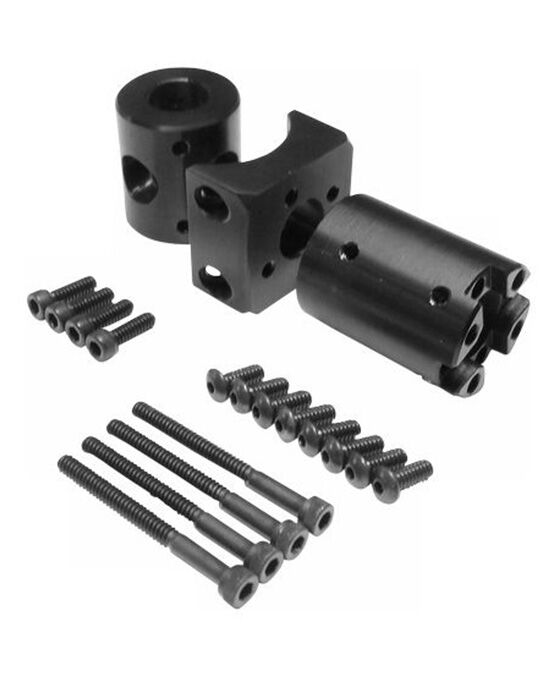

Connectors are made of CNC-machined, black anodized, aircraft-grade, 6061-T6 Aluminum.
Matching screws with 170,000 PSI tensile strength are provided in the kit.
Allen wrench not supplied.
Additional Information
| P/N | CE10-CL-05 |
|---|---|
| Brand | Rock West Composites |
| Length | 0 |
| Panel Thickness | 0.000000 |
| Weight | 0.181 |
