CARBONNect - Angle Connector Kit - Aluminum - For 1.5-inch ID Round Tubing with .06-inch Wall
1
-
4
$94.99
5
-
9
$88.79
10
-
24
$85.59
25
+
$81.39
Estimated lead time for quantities greater than what is Available Now is expected to be at least 4 weeks.
If there is an Available Now quantity listed above, it indicates our quantity in stock. Orders placed today for this quantity or less are expected to ship the next business day.
Don't forget the Drill Jig Kit if this is a first time order!

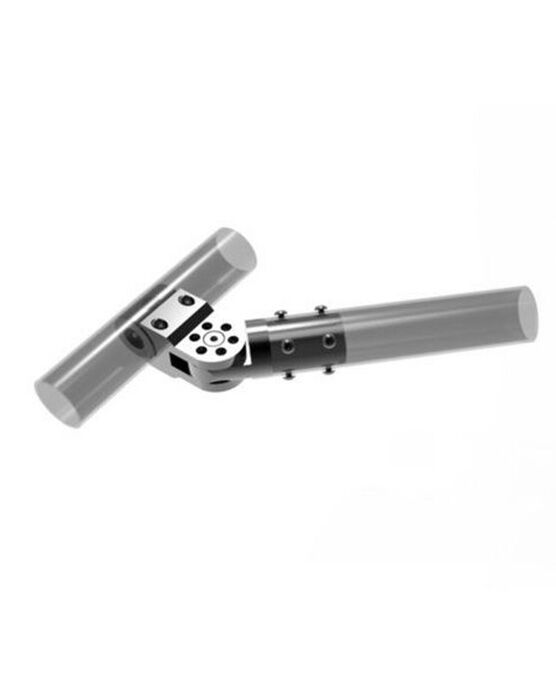

With this Angle Adapter Connector kit, you can add a 180° connection between two carbon tubes of 1", 1.5" or 2" ID. If set at 45° angles, bolts can be added to provide additional strength. Requires tubes with 1/16” wall thickness.
- Use to connect two tubes to form an adjustable joint
- Tighten in any position – 180° adjustability
- Use for truss structures or any structure requiring other than 90° angles
Connectors are made of CNC-machined, black anodized, aircraft-grade, 6061-T6 Aluminum.
Matching screws with 170,000 PSI tensile strength are provided in the kit.
Allen wrench not supplied.
Additional Information
| P/N | CE15-AA-05 |
|---|---|
| Brand | Rock West Composites |
| Length | 0 |
| Panel Thickness | 0.000000 |
| Weight | 0.462 |
CAD Models
1.0" SYSTEM
1.5" SYSTEM
