CARBONNect - Attach Bracket Kit - Aluminum - For 1.5-inch ID Round Tubing with .06-inch Wall

P/N: CE15-AB-05
Available Now: 23

P/N: CE15-AB-05
Available Now: 23
1 - 4
$20.99
5 - 9
$19.79
10 - 24
$19.59
25 - 49
$18.39
50 +
$17.19
Estimated lead time for quantities greater than what is Available Now is expected to be at least 4 weeks.
If there is an Available Now quantity listed above, it indicates our quantity in stock. Orders placed today for this quantity or less are expected to ship the next business day.

Don't forget the Drill Jig Kit if this is a first time order!

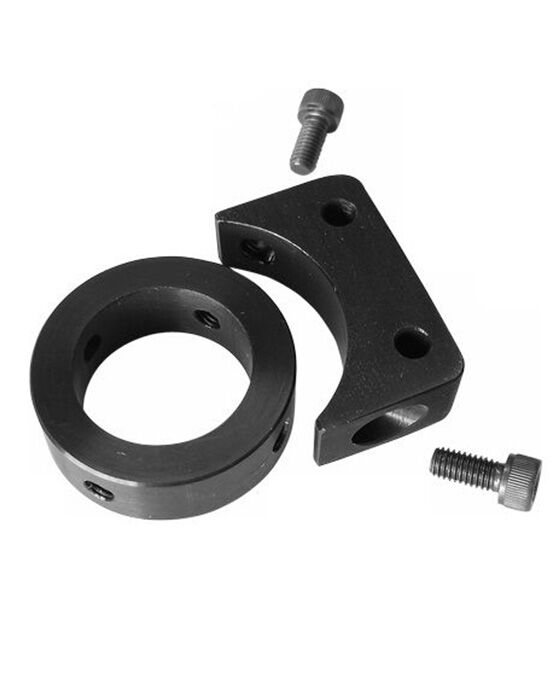

The Attach Bracket connects to 1.5" ID tubes. It has two through holes that can be attached to any combination of tubes or plates. Requires tubes with 1/16” wall thickness.

  • Attach a strong bracket at any point along a tube
  • Can drill the bracket to attach more specific hardware
  • Use to attach trays or shelves in an enclosure
Connectors are made of CNC-machined, black anodized, aircraft-grade, 6061-T6 Aluminum.


Matching screws with 170,000 PSI tensile strength are provided in the kit.

Allen wrenches not supplied. Don't forget the Drill Jig Kit if this is a first time order!

Additional Information

P/N CE15-AB-05
Brand Rock West Composites
Length 0
Panel Thickness 0.000000
Weight 0.156

CAD Models

1.0" SYSTEM

Download PDF

STP Download



1.5" SYSTEM

Download PDF

STP Download



2.0" SYSTEM

Download PDF

STP Download
