CARBONNect - Main Block with Six Adapter - Aluminum - For 1.5-inch ID Round Tubing
1
-
4
$193.99
5
-
9
$181.79
10
-
24
$176.59
25
-
49
$169.39
50
+
$165.19

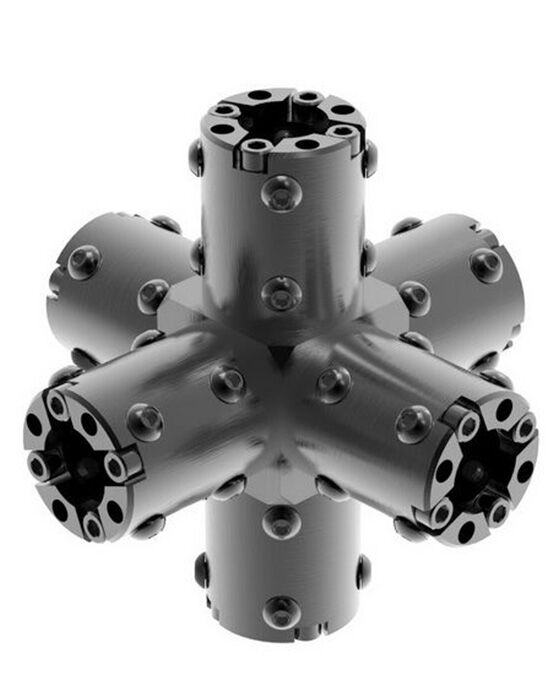

The image shows the possible configuration you can make with the (1) Main Block and (6) Adapters that you receive. Hardware is included.
Description
These components connect 1.5". You can form almost any connection configuration using a combination of Main Blocks and Adapters. This kit includes the following:
- (1) Main Block (CE15-MB-01)
- (6) Adapter (CE15-AD-01)
- (24) 10-32 X 1 7/8 Socket Head Cap Screw, Steel Black Oxide
- (48) 10-32 X 7/16 Button Head Cap Screw, Steel Black Oxide
Connectors are made of CNC-machined, black anodized, aircraft-grade, 6061-T6 Aluminum.
Matching screws with 170,000 PSI tensile strength are provided in the kit.
Allen wrench not supplied.
Additional Information
| P/N | CE15-MB6-05 |
|---|---|
| Brand | Rock West Composites |
| Length | 0 |
| Panel Thickness | 0.000000 |
| Weight | 1.912 |
