Fiberglass Plate - G-10/FR-4 - Semi-Gloss - 24" x 24" x 1/4"

P/N: G10-250-2424
Available Now: 1

G-10/FR-4 ◾ 1/4"" Thick ◾ 24" x 24"

P/N: G10-250-2424
Available Now: 1
1 - 5
$156.99
6 - 9
$138.79
10 +
$133.59
Estimated lead time for quantities greater than what is Available Now is expected to be between 2 and 4 weeks.
If there is an Available Now quantity listed above, it indicates our quantity in stock. Orders placed today for this quantity or less are expected to ship the next business day.

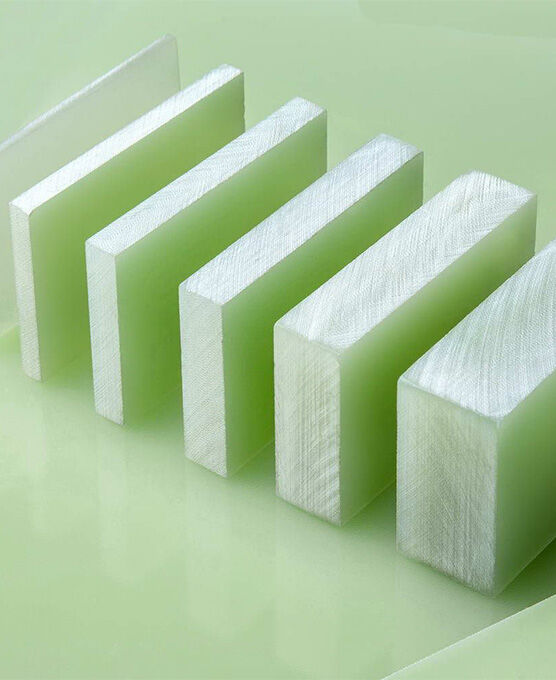

Plate - Fiberglass - G-10/FR-4 - Press Cured - 24" (610mm) x 24" (610mm) x 0.25" (6.4mm)

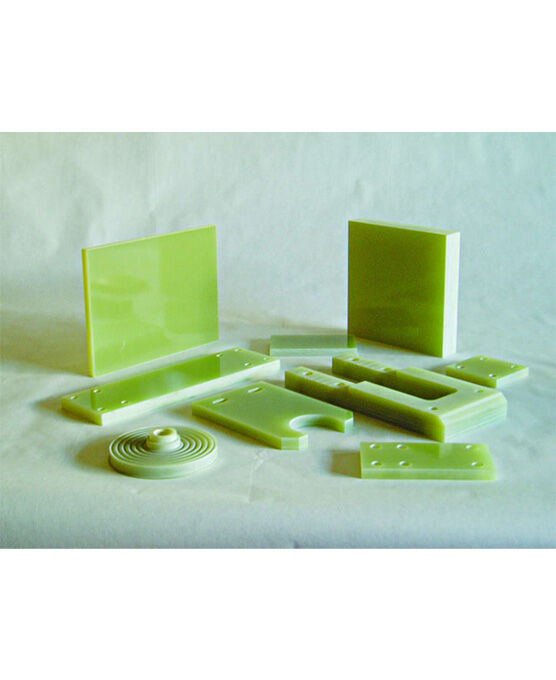

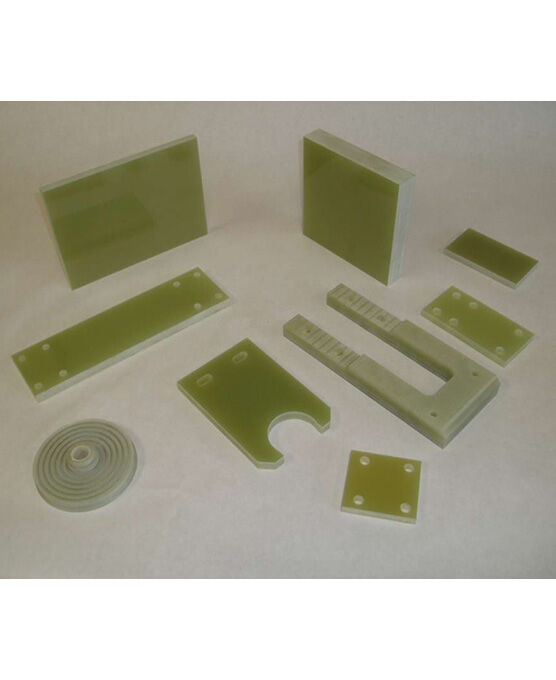

G-10/FR-4

An industry standard material for use in many different industries, it has excellent machinibility and electrical insulative properties. This glass/epoxy laminate offers a superior strength/size ratio and self-extinguishing properties. In addition to its high mechanical strength, it exhibits good dielectric loss and electrical properties under a range of dry and humid conditions. The flame resistance is Class I in accordance with NEMA test method 7.11.

G-10 / FR-4 plates are rated at 140 degrees C (284 degrees F) continuous operating temperature. Being thermosets, no melting will occur with these grades; however, charring will be observed after extended periods above the temperature rating. It also has a flammability rating of 94V-0.

G-10 is also one of the most widely used non-metallics in cryogenic applications. This material should be noted as G-10CR and component specification should be reviewed before calling out.

Features & Benefits

  • Radiation resistant
  • High tensile strength
  • Low cold flow or creep
  • Chemically resistant
  • High flexural strength
  • Dimensional stability
  • Low moisture absorption
  • Low dissipation factor
  • Thermal shock resistant
  • High Impact Strength
  • Cryogenic serviceability

  • Applications

  • Electrical equipment
  • Test Boards
  • Rocket cases
  • Medical diagnosis
  • Standoffs
  • Composite Panel Insert hardpoints
  • Additional Information

    P/N G10-250-2424
    Application General Purpose
    ECCN 1A002
    Finish Semi-Gloss / Semi-Gloss
    HTS - Harmonized Tariff Code 6815.13.0000
    Materials Fiberglass
    Plate / Panel Size 24" x 24" / 609.6mm x 609.6mm
    Thickness 0.25
    USMCA Criterion B
    Weight 9.4
    Width 24.0

    Tolerances

    STOCK TOLERANCE SHEET

    Download PDF
