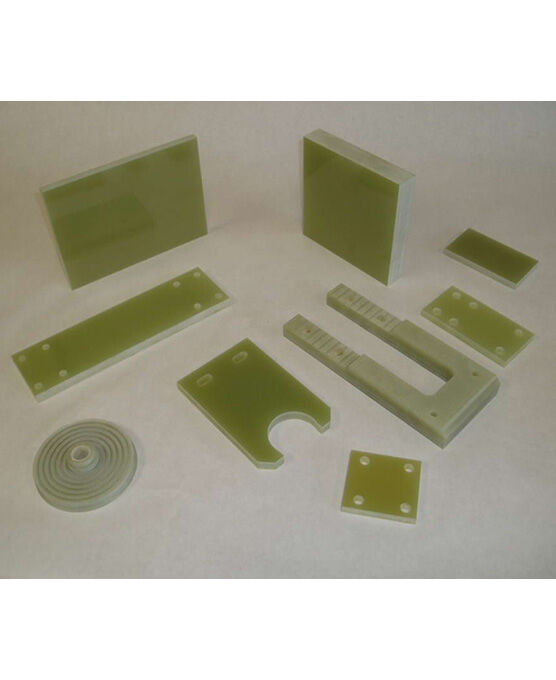

An industry standard material for use in many different industries, it has excellent machinibility and electrical insulative properties. This glass/epoxy laminate offers a superior strength/size ratio and self-extinguishing properties. In addition to its high mechanical strength, it exhibits good dielectric loss and electrical properties under a range of dry and humid conditions. The flame resistance is Class I in accordance with NEMA test method 7.11.

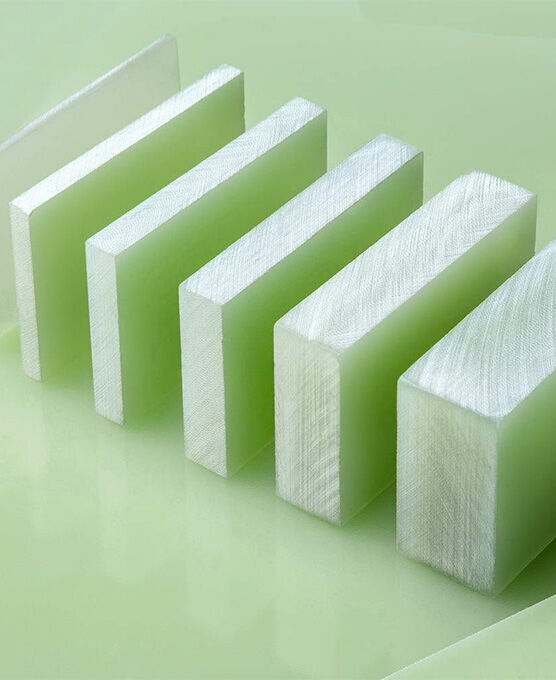

G-10 / FR-4 plates are rated at 140 degrees C (284 degrees F) continuous operating temperature. Being thermosets, no melting will occur with these grades; however, charring will be observed after extended periods above the temperature rating. It also has a flammability rating of 94V-0.
G-10 is also one of the most widely used non-metallics in cryogenic applications. This material should be noted as G-10CR and component specification should be reviewed before calling out.
Applications
P/N | G10-500-2448 |
---|---|
Application | General Purpose |
ECCN | 1A002 |
Finish | Semi-Gloss / Semi-Gloss |
HTS - Harmonized Tariff Code | 6815.13.0000 |
Materials | Fiberglass |
Plate / Panel Size | 24" x 48" / 609.6mm x 1219.2mm |
Thickness | 0.5 |
USMCA Criterion | B |
Weight | 37.4 |
Width | 24.0 |
