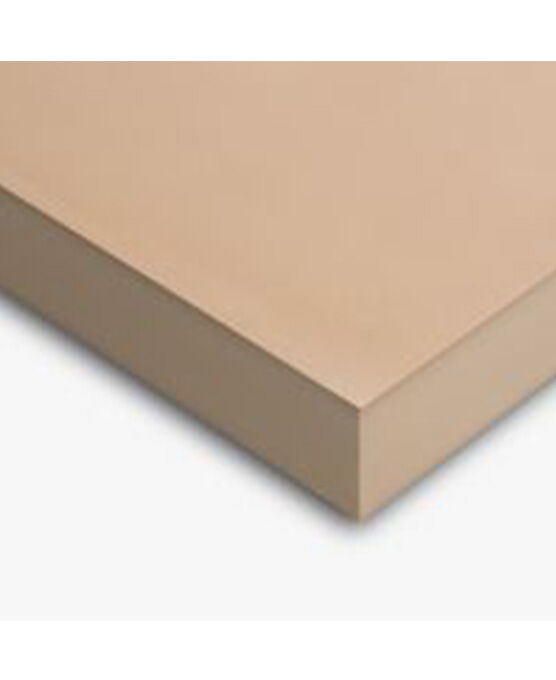

Necuron 620 (38.7 Cubic ft) Tooling Board

Necuron 620 (38.7 lb/ft^3) 1" x 24" x 60"
P/N: 75153
1 - 9
$315.99
10 +
$299.89
Necuron 620 (38.7 lb/ft^3) 2" x 24" x 60"
P/N: 75154
1 - 9
$489.99
10 +
$464.89
Necuron 620 (38.7 lb/ft^3) 3" x 24" x 60"
P/N: 75155
1 - 9
$679.99
10 +
$644.89
Necuron 620 (38.7 lb/ft^3) 4" x 24" x 60"
P/N: 75156
1 - 9
$949.99
10 +
$898.89
Estimated lead time for quantities greater than what is Available Now is expected to be at least 4 weeks.

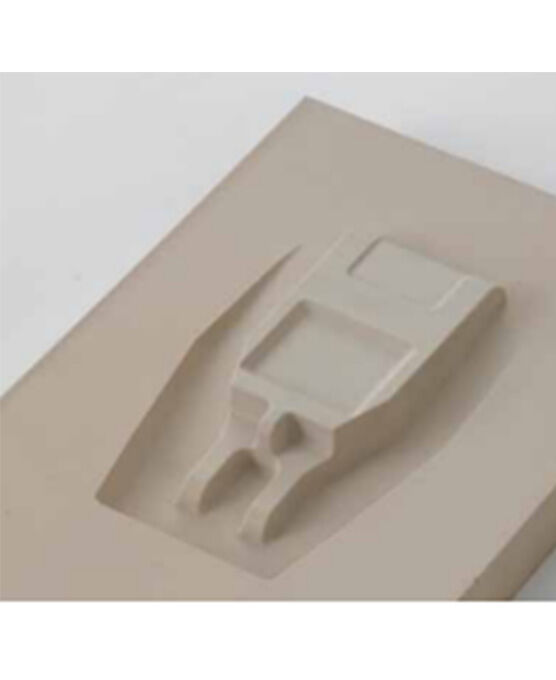

This Polyurethane Tooling Board material boasts a very dense structure with particularly good machining properties. Used for original and copy models, and great for cubing.

NECURON®-boards should be stored on a flat surface and in a dry space at a temperature between 64.4°F and 77°F. Variations in temperature should be avoided during the transport and storage.

Additional Information

P/N 75153 75154 75155 75156
Color Brown Brown Brown Brown
Width 24.0 24.0 24.0 24.0
Thickness 1.0 2.0 3.0 4.0
Length 0 0 0 0
Weight 32.25 64.5 96.75 129.0

Technical Specifications

Color: light brown
Coefficient of thermal expansion: approx. 33.88 x 10^-6 F-1
Temp. resistance: approx. 140°F
Shore D: approx. 57
Compressive strength: approx. 3,480 psi
Flexural strength: approx. 3,916 psi
Density: approx. 38.7lb/Ft^3


Necuron 620
