Aramid - Honeycomb Core - 3.0 Cubic ft - 24 x 24 x 0.210 inch

productname image number 0
productname image number 1
productname image number 2
productname image number 3
productname image number 0
productname image number 1
productname image number 2
productname image number 3
P/N: NOM-0210-22-D
Available Now: 5

0.210" x 24" x 24" ◾ 3.0 LB/ft^3

P/N: NOM-0210-22-D
Available Now: 5
$76.99
Estimated lead time for quantities greater than what is Available Now is expected to be at least 4 weeks.
If there is an Available Now quantity listed above, it indicates our quantity in stock. Orders placed today for this quantity or less are expected to ship the next business day.

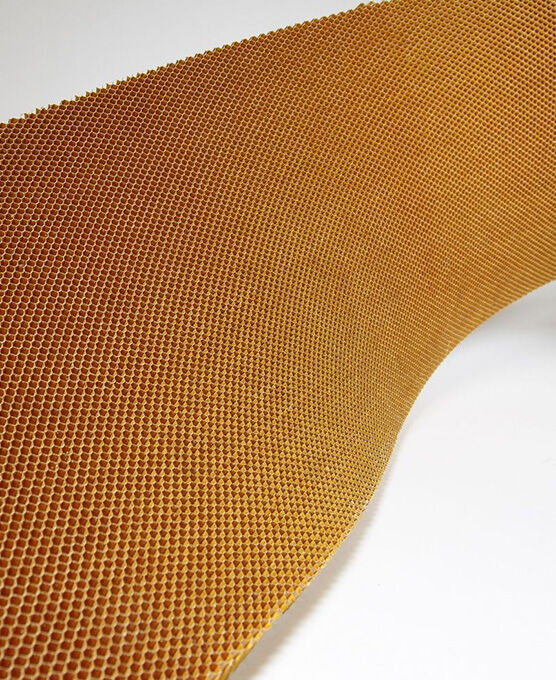

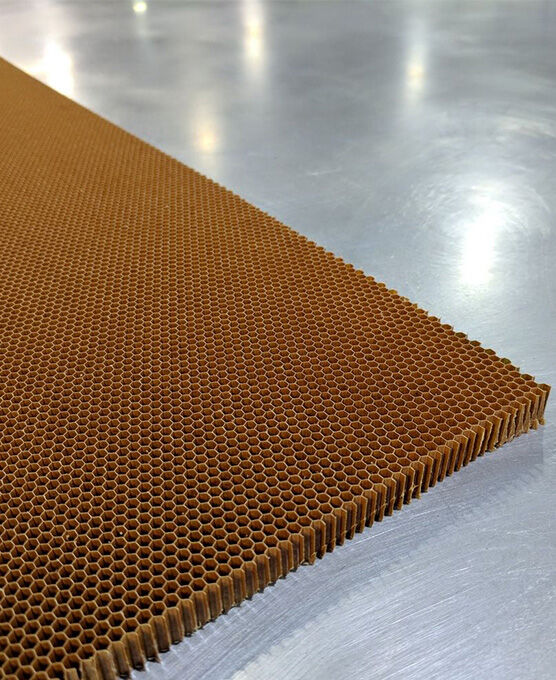

Aerospace grade aramid fiber honeycomb exhibits outstanding flammability properties. It is manufactured from Meta-Aramid paper and coated with a heat resistant phenolic resin.

Features & Benefits

This aerospace honeycomb uses include aircraft galleys, flooring, partitions, aircraft leading and trailing edges, missile wings, radomes, antennas, military shelters, fuel tanks, helicopter rotor blades and navy bulkhead joiner panels.

  • Fire resistant (self extinguishing)
  • High strength-to-weight ratio
  • Corrosion resistant
  • Excellent dielectric properties
  • Thermally insulating
  • High toughness
  • Excellent creep and fatigue performance
  • Good thermal stability

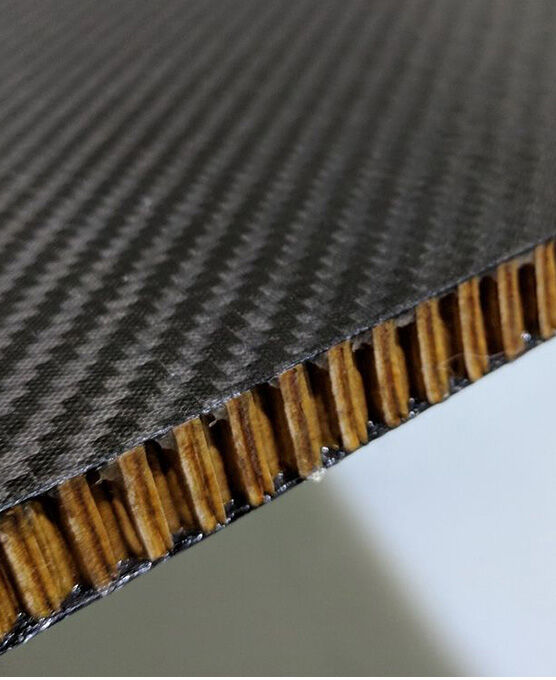

  • Compatible with most adhesives used in sandwich composites
  • Long shelf life. The mechanical properties referenced are maintained for 10 years minimum if not exposed to moisture, weather or any normal hazard.

Additional Information

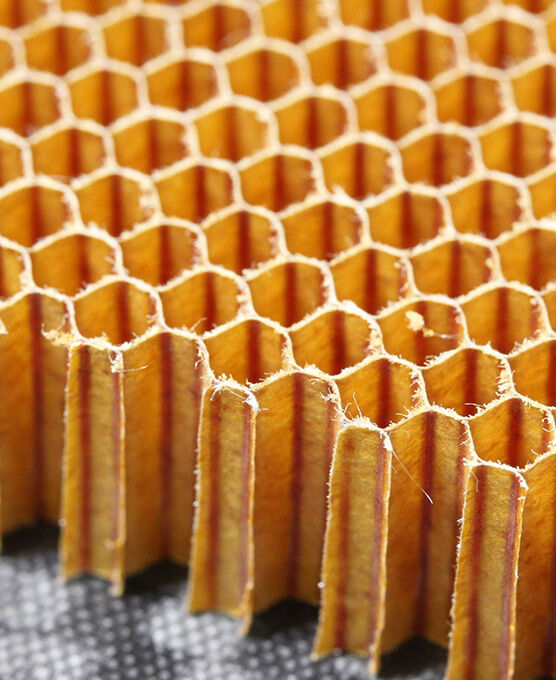

Cell Size 0.125
Width 24.0
Thickness 0.21
Length 24
Length (max continuous) 24.0
Areal Density 0.052
Volumetric Density 0.00174
Weight 0.21

Technical Specifications

Aramid Honeycomb Core Data

Download PDF

Tolerances

  • Length: ± 0.5"
  • Width: ± 0.5"
  • Thickness: ± 0.006″ (under 2″ thick)
  • Density: ±10%
  • Cell Size: ±10%
