P/N: NOM-0335-11-D

0.335" x 12" x 12" ◾ 3.0 LB/ft^3

P/N: NOM-0335-11-D
$27.99

Description

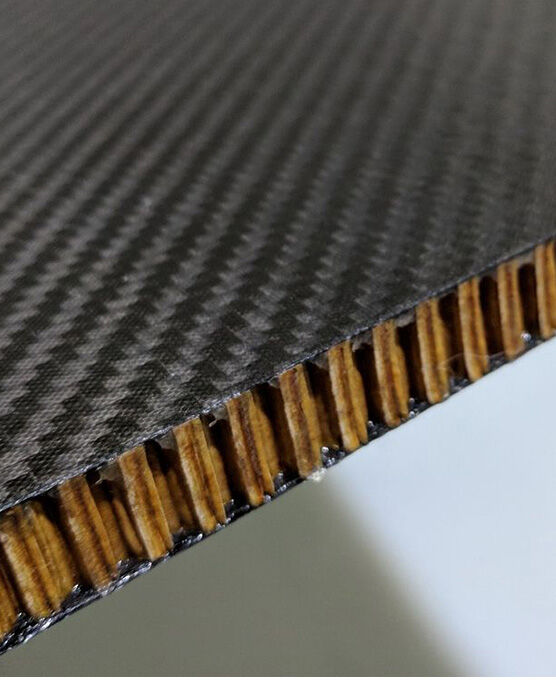

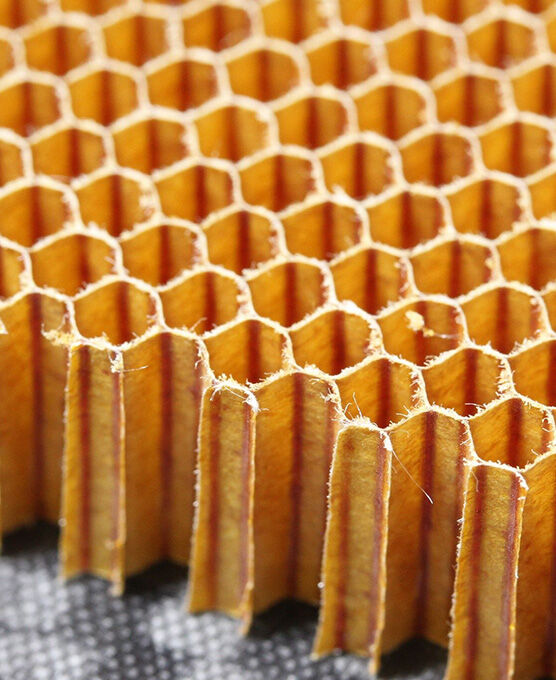

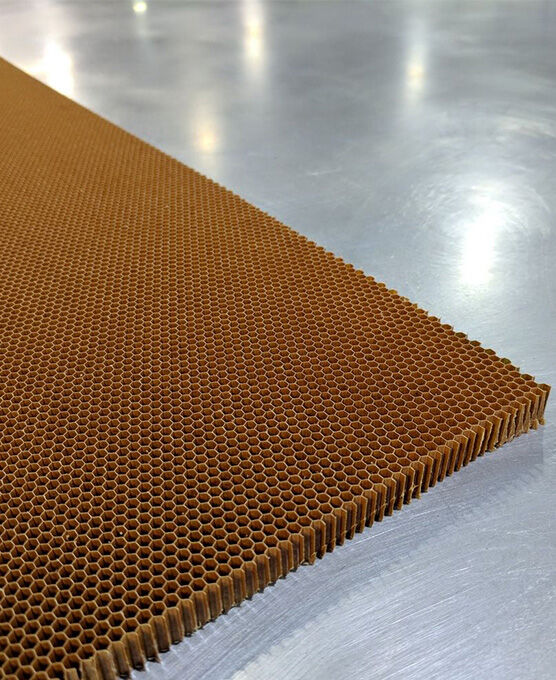

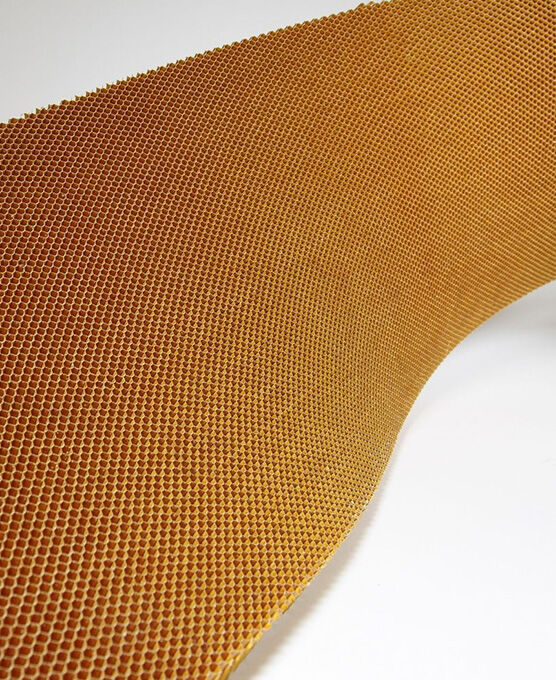

Aerospace grade aramid fiber honeycomb exhibits outstanding flammability properties. It is manufactured from Meta-Aramid paper and coated with a heat resistant phenolic resin.

Features & Benefits

This aerospace honeycomb uses include aircraft galleys, flooring, partitions, aircraft leading and trailing edges, missile wings, radomes, antennas, military shelters, fuel tanks, helicopter rotor blades and navy bulkhead joiner panels.

  • Fire resistant (self extinguishing)
  • High strength-to-weight ratio
  • Corrosion resistant
  • Excellent dielectric properties
  • Thermally insulating
  • High toughness
  • Excellent creep and fatigue performance
  • Good thermal stability
  • Compatible with most adhesives used in sandwich composites
  • Long shelf life. The mechanical properties referenced are maintained for 10 years minimum if not exposed to moisture, weather or any normal hazard.

Additional Information

P/N NOM-0335-11-D
Brand Rock West Composites
Exportable No
Materials Aramid
Thickness 0.335
Weight 0.084

Technical Data

Aramid Honeycomb Core Data

Download PDF

Tolerances

  • Length: ± 0.5"
  • Width: ± 0.5"
  • Thickness: ± 0.006″ (under 2″ thick)
  • Density: ±10%
  • Cell Size: ±10%
