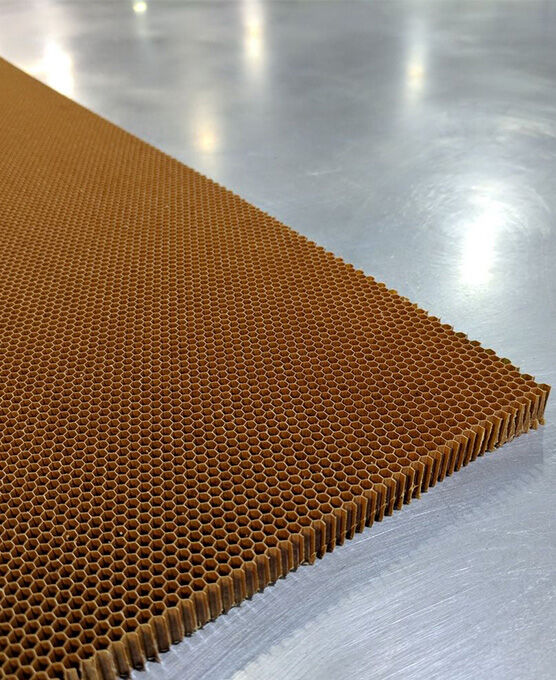

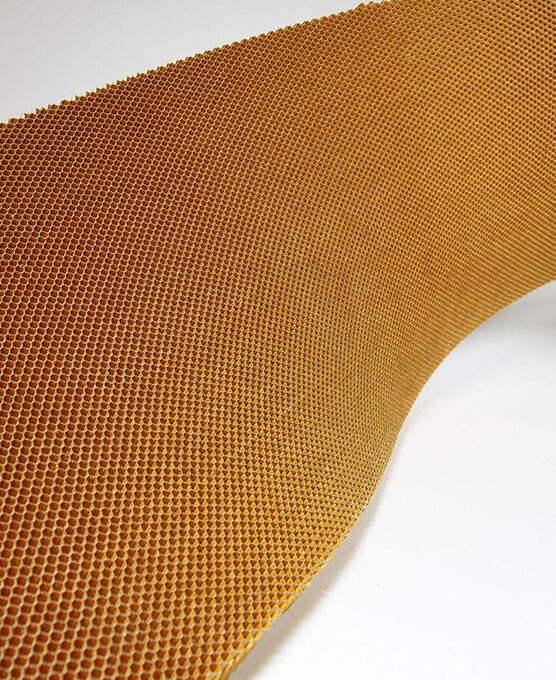

Aramid - Honeycomb Core - 3.0 Cubic ft - 48 x 48 x 0.460 inch
$547.99
Aramid - Honeycomb Core - 3.0 Cubic ft - 48 x 48 x 0.460 inch
0.460" x 48" x 48" ◾ 3.0 LB/ft^3
$547.99
Estimated lead time for quantities greater than what is Available Now is expected to be at least 4 weeks.

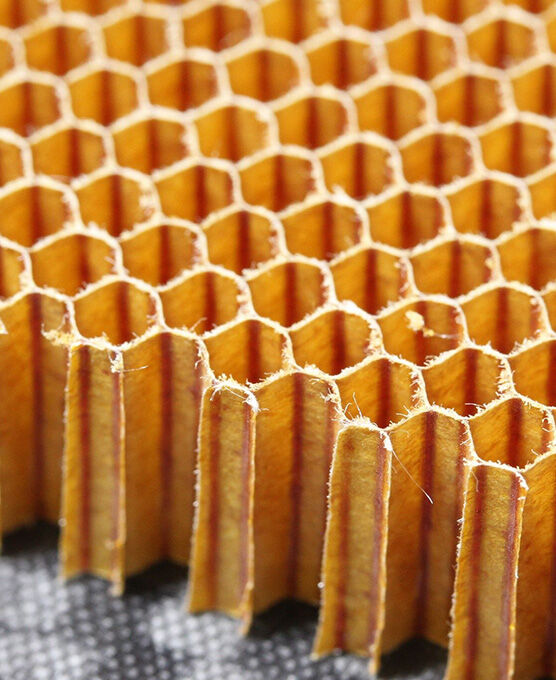

Aerospace grade aramid fiber honeycomb exhibits outstanding flammability properties. It is manufactured from Meta-Aramid paper and coated with a heat resistant phenolic resin.
Features & Benefits
This aerospace honeycomb uses include aircraft galleys, flooring, partitions, aircraft leading and trailing edges, missile wings, radomes, antennas, military shelters, fuel tanks, helicopter rotor blades and navy bulkhead joiner panels.
- Fire resistant (self extinguishing)
- High strength-to-weight ratio
- Corrosion resistant
- Excellent dielectric properties
- Thermally insulating
- High toughness
- Excellent creep and fatigue performance
- Good thermal stability

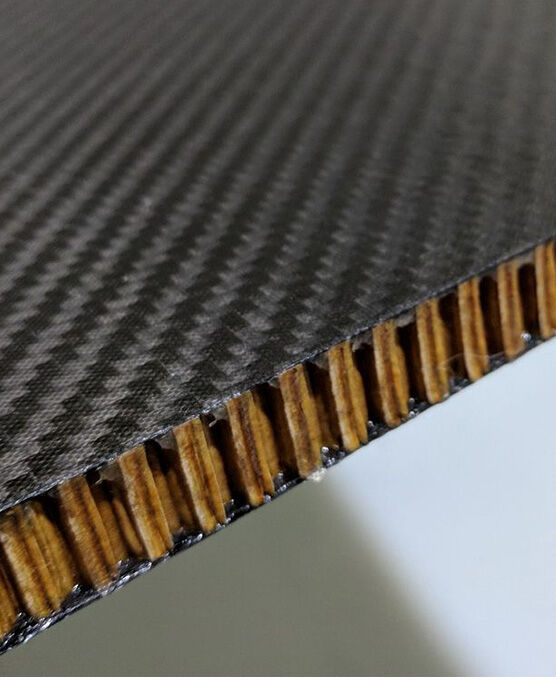

- Compatible with most adhesives used in sandwich composites
- Long shelf life. The mechanical properties referenced are maintained for 10 years minimum if not exposed to moisture, weather or any normal hazard.
Additional Information
| Cell Size | 0.125 |
|---|---|
| Width | 48.0 |
| Thickness | 0.46 |
| Length | 48 |
| Length (max continuous) | 48.0 |
| Areal Density | 0.115 |
| Volumetric Density | 0.00174 |
| Weight | 1.84 |
Engineering Properties
All laminate properties and mechanical calculations are based on Classical Lamination Theory and should be used as a reference only. Rock West Composites does not guarantee these properties or calculations.
| Avg EX Young's Modulus | 20000.0 |
|---|---|
| GXY Shear Modulus | 6700.0 |
| X Tensile Yield Strength | 180.0 |
| X Compressive Yield Strength | 180.0 |
| XY Shear Strength | 85.0 |
Note:
- "X" is along the length of a tube, rod, plate, or panel.
- "Y" is around the perimeter of a tube, perpendicular to the length of pultruded parts, or along the width of a plate or panel.
Tolerances
- Length: ± 0.5"
- Width: ± 0.5"
- Thickness: ± 0.006″ (under 2″ thick)
- Density: ±10%
- Cell Size: ±10%
