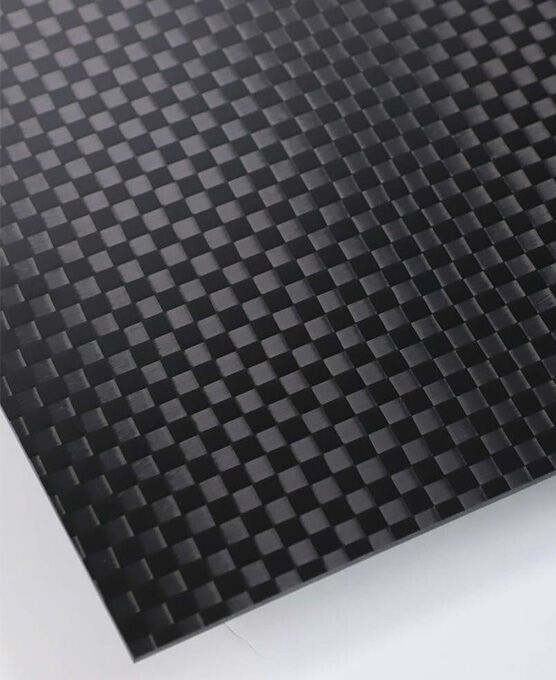

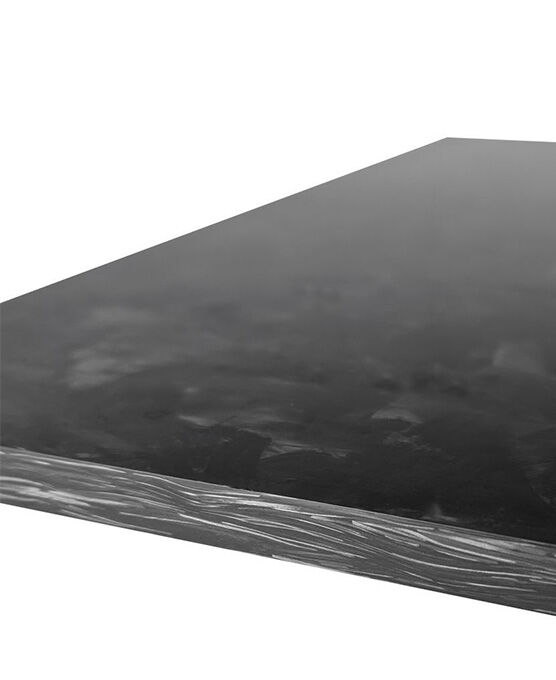

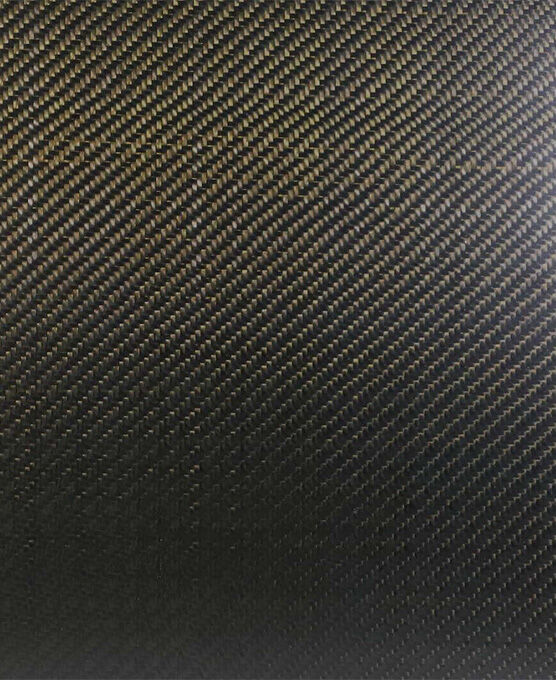

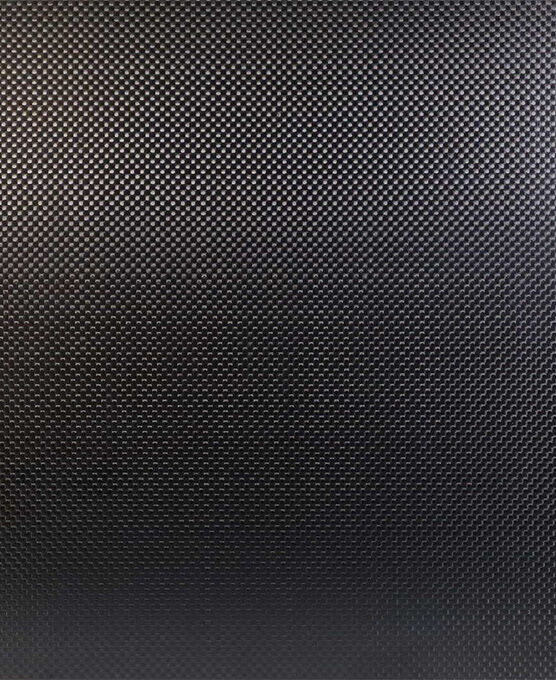

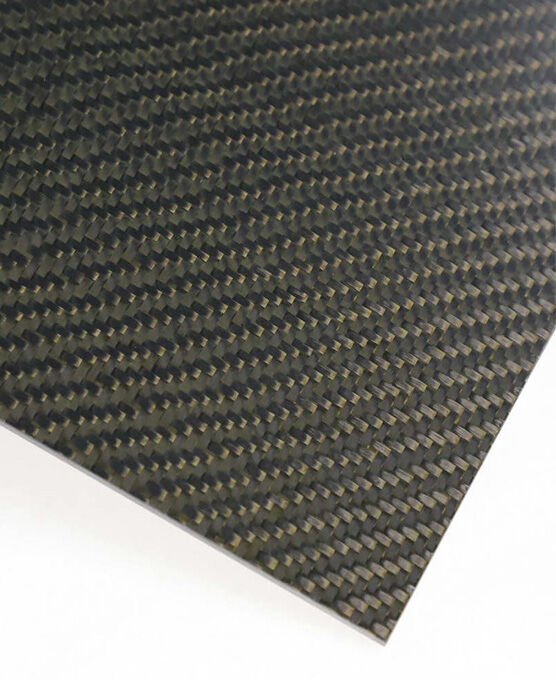

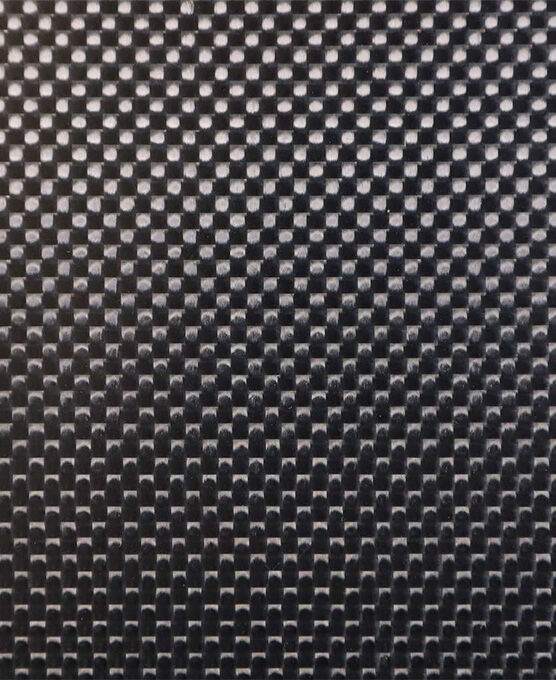

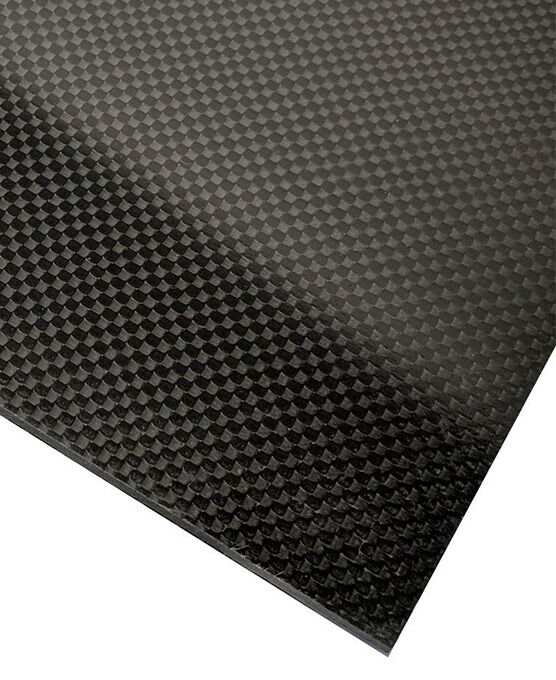

Carbon Fiber Plate - Standard Modulus - Satin - 12" x 12" x 1/16"

These press molded plates are manufactured using remnant prepregs collected from the commercial aviation manufacturing industry. Rather than discard these remnants in the landfill, the materials are used to manufacture these advanced composite plates made of the highest quality materials. The remnants are too small for the aerospace application that they were purchased for, but large enough to make high quality, high grade carbon fiber plates in a variety of sizes and thicknesses. The result is a cost effective, high performance, and more environmentally friendly solution for plate manufacturing.

Product Details

• Standard Modulus Fiber Plate (Fiber: 34 msi | 700 ksi, resin 250F Tg or greater



Benefits & Features

• Upcycled materials from the aerospace industry
• Consistent material supply and high volume production possible
• 250F Tg (or greater)


• Common resin systems used are:
• MTM45-1 (cured @ 250F but with post cure Tg of 350F is possible)


• TC275-1 (cured @ 250F but with post cure Tg of 350F is possible)


• 3900 (Cured @ 350F with a max service temperature of 400F

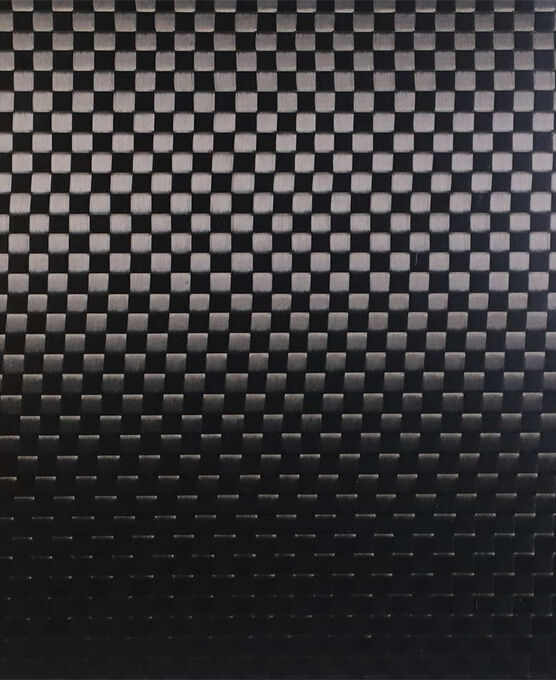

• Smooth satin finish
• Multi-axial layup, core plies may be a mixture of uni & woven plies & skin plies will be as listed
