1/4" THICK PLATE - CARBON FIBER - HIGH TEMP (402F Tg) BALANCED - PEEL PLY / PEEL PLY - 0.25 INCH

productname image number 0
productname image number 1
productname image number 2
productname image number 3
productname image number 4
productname image number 5
productname image number 6
productname image number 7
productname image number 8
productname image number 0
productname image number 1
productname image number 2
productname image number 3
productname image number 4
productname image number 5
productname image number 6
productname image number 7
productname image number 8
0.25" x 6" x 6"
P/N: PLATE-HT025-66
Available Now: 32
1 - 10
$53.99
11 - 49
$45.79
50 +
$41.59
0.25" x 12" x 12"
P/N: PLATE-HT025-11
Available Now: 1
1 - 10
$125.99
11 - 49
$105.79
50 +
$96.59
0.25" x 24" x 24"
P/N: PLATE-HT025-22
Available Now: 5
1 - 10
$412.99
11 - 49
$348.79
50 +
$317.59
0.25" x 24" x 48"
P/N: PLATE-HT025-24
Available Now: 3
1 - 10
$804.99
11 - 49
$679.79
50 +
$620.59
0.25" x 48" x 48"
P/N: PLATE-HT025-44
Available Now: 1
1 - 10
$1,559.99
11 - 49
$1,318.79
50 +
$1,203.59
0.25" x 48" x 96" ◾ Requires Shipping Crate + Freight
P/N: PLATE-HT025-4896
$3,060.99
0.25" x 6" x 12"
P/N: PLATE-HT025-612
Available Now: 1
1 - 10
$69.99
11 - 49
$64.79
50 +
$59.59
0.25" x 12" x 24"
P/N: PLATE-HT025-12
Available Now: 2
1 - 10
$240.99
11 - 49
$222.79
50 +
$204.59
0.25" x 6" x 24"
P/N: PLATE-HT025-624
1 - 10
$133.99
11 - 49
$123.79
50 +
$112.59
0.25" x 6" x 48"
P/N: PLATE-HT025-648
1 - 10
$248.99
11 - 49
$230.79
50 +
$212.99
0.25" x 11.75" x 11.75"
P/N: PLATE-HT025-11.75
Available Now: 4
$124.99
Estimated lead time for quantities greater than what is Available Now is expected to be between 2 and 4 weeks.

*Please Note - Due to blade kerf, length & width tolerance may vary by +/- 0.375"

Minimal Void Content - Low Cost - High Temperature Plate

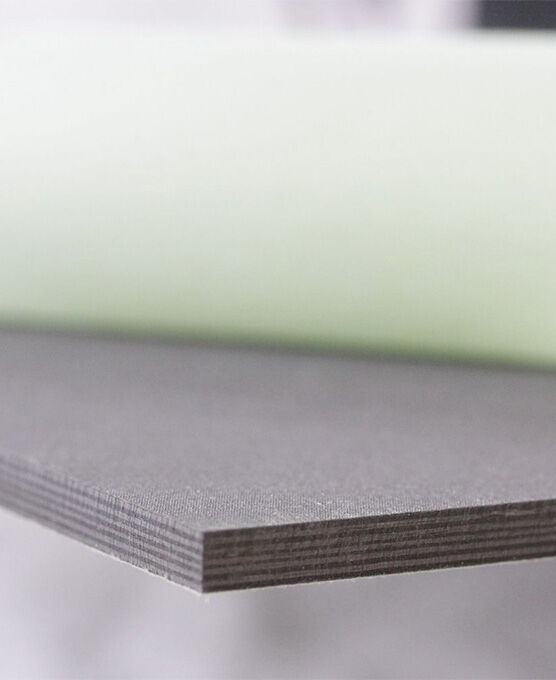

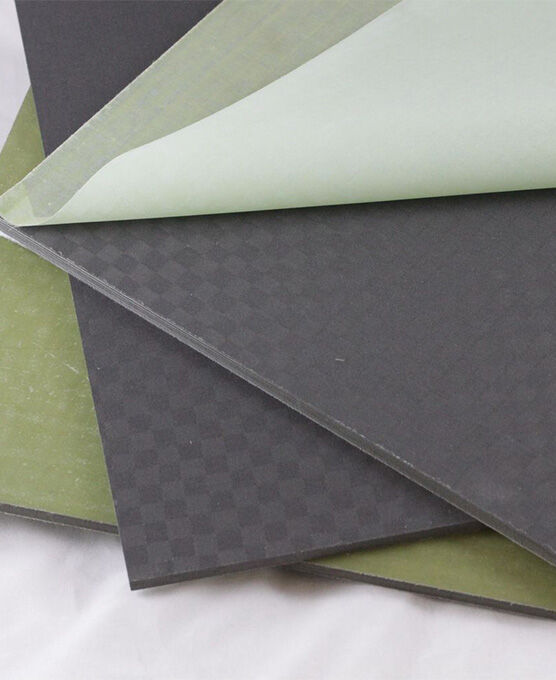

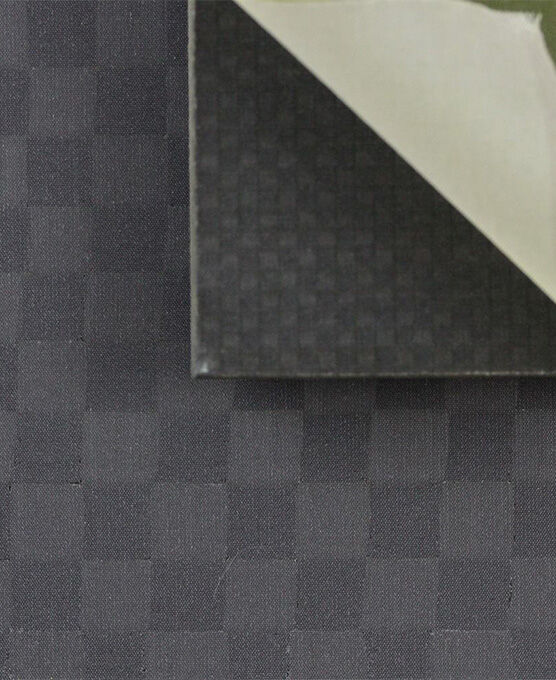

Press cured, balanced carbon fiber & epoxy resin prepreg laminates. These laminate plates (panels) are made with a nylon peel ply co-cured on both outer surfaces of the laminate which may be removed by the user. This plate was originally designed for use in tooling applications as backing structures although its use expands far beyond.

You may also need

Additional Information

P/N PLATE-HT025-66 PLATE-HT025-11 PLATE-HT025-22 PLATE-HT025-24 PLATE-HT025-44 PLATE-HT025-4896 PLATE-HT025-612 PLATE-HT025-12 PLATE-HT025-624 PLATE-HT025-648 PLATE-HT025-11.75
Materials High Temperature Carbon High Temperature Carbon High Temperature Carbon High Temperature Carbon High Temperature Carbon High Temperature Carbon High Temperature Carbon High Temperature Carbon High Temperature Carbon High Temperature Carbon High Temperature Carbon
Pattern 3k Plain Weave 3k Plain Weave 3k Plain Weave 3k Plain Weave 3k Plain Weave 3k Plain Weave 3k Plain Weave 3k Plain Weave 3k Plain Weave 3k Plain Weave 3k Plain Weave
Color Black Black Black Black Black Black Black Black Black Black Black
Finish Matte / Matte Matte / Matte Matte / Matte Matte / Matte Matte / Matte Matte / Matte Matte / Matte Matte / Matte Matte / Matte Matte / Matte Matte / Matte
Panel Thickness 0.250000 0.250000 0.250000 0.250000 0.250000 0.250000 0.250000 0.250000 0.250000 0.250000 0.250000
Plate / Panel Size 6" x 6" / 152.4mm x 152.4mm 12" x 12" / 304.8mm x 304.8 mm 24" x 24" / 609.6mm x 609.6mm 24" x 48" / 609.6mm x 1219.2mm 48" x 48" / 1219.2mm x 1219.2mm 48" x 96" / 1219.2mm x 2438.4mm 6" x 12" / 152.4mm x 304.8mm 12" x 24" / 304.8mm x 609.6mm 6" x 24" / 152.4mm x 609.6mm 6" x 48" / 152.4mm x 1219.2mm 11.75" x 11.75" / 298.45mm x 298.45mm
Width 6.0 12.0 24.0 24.0 48.0 48.0 6.0 12.0 6.0 6.0 11.75
Thickness 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25
Length 6 12 24 48 48 96 12 24 24 48 11.75
Weight 0.54 2.16 8.64 17.29 35.58 69.16 1.08 4.32 2.16 4.32 2.16
Max Operating Temp- (Tg) 350F+ 350F+ 350F+ 350F+ 350F+ 350F+ 350F+ 350F+ 350F+ 350F+ 350F+
HTS - Harmonized Tariff Code 6815.13.0000 6815.13.0000 6815.13.0000 6815.13.0000 6815.13.0000 6815.13.0000 6815.13.0000 6815.13.0000 6815.13.0000 6815.13.0000 6815.13.0000

Technical Specifications

Standard Modulus carbon fiber and epoxy laminate with a 0/90 orientation throughout. and a plain weave on the outside.

  • Glass Transition Temp (Tg): 402 F
  • Coefficient of thermal expansion, X-Y: 2.34 to 2.91

Structural Properties

  • @ Room Temperature
    • Flexural Strength: 121.9 ksi
    • Flexural Modulus: 8.9 Msi
  • @ 350 F
    • Flexural Strength: 49.8 ksi
    • Flexural Modulus: 7.4 Msi

Structural Properties after 100 cycles



  • @ Room Temperature
    • Flexural Strength: 122.8 ksi
    • Flexural Modulus: 9.1 Msi
  • @ 350 F
    • Flexural Strength: 58.7 ksi
    • Flexural Modulus: 8.1 Msi

*No warranty of fitness for a particular purpose are made. Values supplied here should be validated by testing in your specific application.

Tolerances

STOCK TOLERANCE SHEET

Download PDF

Contact Info
1/4" THICK PLATE - CARBON FIBER - HIGH TEMP (402F Tg) BALANCED - PEEL PLY / PEEL PLY - 0.25 INCH
P/N PLATE-HT025-GROUP
