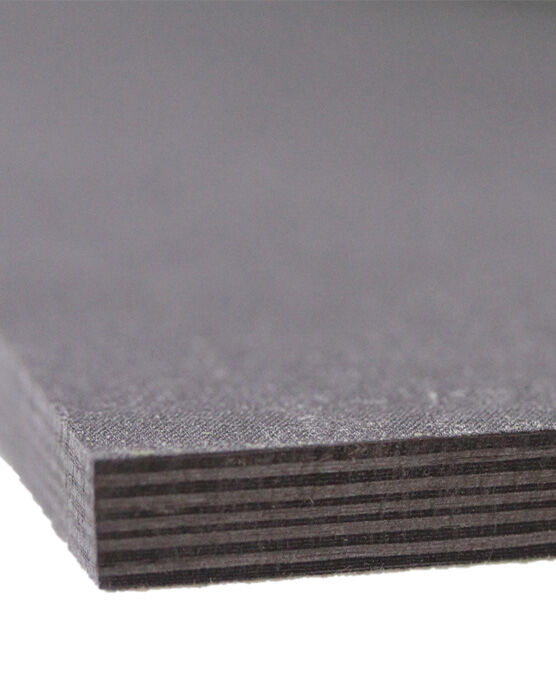

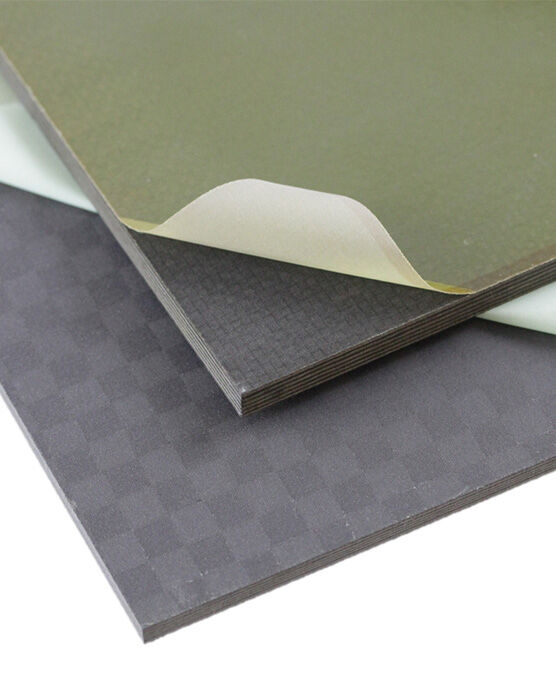

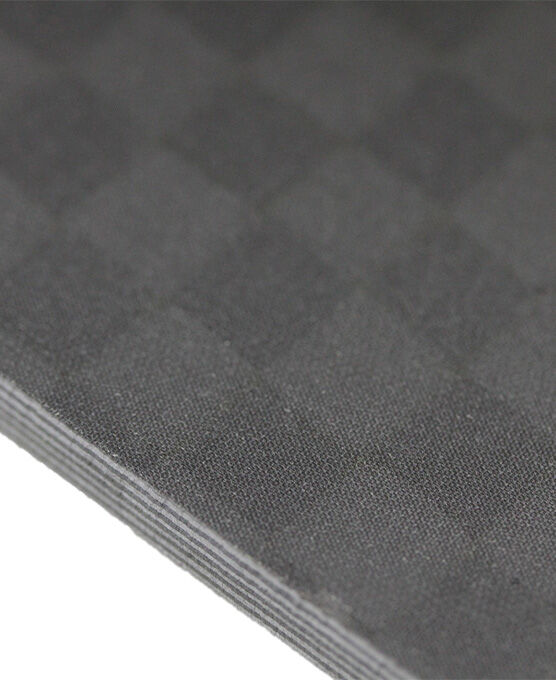

1/2" THICK PLATE - CARBON FIBER - HIGH TEMP (402F Tg) BALANCED - PLAIN WEAVE OUTER PLIES - PEEL PLY / PEEL PLY FINISH - 0.50 INCH

productname image number 0
productname image number 1
productname image number 2
productname image number 3
productname image number 4
productname image number 0
productname image number 1
productname image number 2
productname image number 3
productname image number 4
Carbon Fiber Plate - High Temperature - Peel Ply - 6" x 6" x 1/2"
P/N: PLATE-HT050-66
Available Now: 2
1 - 10
$78.99
11 - 49
$66.79
50 +
$60.59
Carbon Fiber Plate - High Temperature - Peel Ply - 12" x 12" x 1/2"
P/N: PLATE-HT050-11
Available Now: 1
1 - 10
$227.99
11 - 49
$192.79
50 +
$175.59
Carbon Fiber Plate - High Temperature - Peel Ply - 24" x 12" x 1/2"
P/N: PLATE-HT050-12
1 - 10
$425.99
11 - 49
$359.79
50 +
$328.59
Carbon Fiber Plate - High Temperature - Peel Ply - 24" x 24" x 1/2"
P/N: PLATE-HT050-22
Available Now: 1
1 - 10
$821.99
11 - 49
$694.79
50 +
$634.59
Carbon Fiber Plate - High Temperature - Peel Ply - 48" x 24" x 1/2"
P/N: PLATE-HT050-24
Available Now: 3
1 - 10
$1,623.99
11 - 49
$1,372.79
50 +
$1,253.59
Carbon Fiber Plate - High Temperature - Peel Ply - 48" x 48" x 1/2"
P/N: PLATE-HT050-44
1 - 4
$3,199.99
5 - 9
$2,862.79
10 +
$2,722.59
0.50" x 48" x 96" ◾ Requires Shipping Crate + Freight
P/N: PLATE-HT050-4896
Available Now: 2
$6,340.99
Estimated lead time for quantities greater than what is Available Now is expected to be between 2 and 4 weeks.

*Please Note - Due to blade kerf, length & width tolerance may vary by +/- 0.375"

PLATE - CARBON FIBER - HIGH TEMP (402F Tg) BALANCED - PEEL PLY / PEEL PLY - 0.50 INCH

You may also need

Additional Information

P/N PLATE-HT050-66 PLATE-HT050-11 PLATE-HT050-12 PLATE-HT050-22 PLATE-HT050-24 PLATE-HT050-44 PLATE-HT050-4896
Application Tooling Plates / Support Structures Tooling Plates / Support Structures
Built To Order
Clearance
Color
ECCN
Finish Matte / Matte Matte / Matte Matte / Matte Matte / Matte Matte / Matte Matte / Matte Matte / Matte
Flexural Strength (ksi)
Height
HTS - Harmonized Tariff Code 6815.13.0000 6815.13.0000 6815.13.0000 6815.13.0000 6815.13.0000 6815.13.0000 6815.13.0000
Major ID
Major OD
Materials High Temperature Carbon High Temperature Carbon High Temperature Carbon High Temperature Carbon High Temperature Carbon High Temperature Carbon High Temperature Carbon
Temperature Rating (F)
Minor ID
Minor OD
Plate / Panel Size 6" x 6" / 152.4mm x 152.4mm 12" x 12" / 304.8mm x 304.8 mm 12" x 24" / 304.8mm x 609.6mm 24" x 24" / 609.6mm x 609.6mm 24" x 48" / 609.6mm x 1219.2mm 48" x 48" / 1219.2mm x 1219.2mm 48" x 96" / 1219.2mm x 2438.4mm
REACH
RoHS
Schedule B
Space Flight Ready
Tensile Modulus, msi
Tensile Strength (ksi)
Thickness 0.5 0.5 0.5 0.5 0.5 0.5 0.5
Traceability Included
USMCA Criterion
Weight 1.08 4.32 8.65 17.29 34.58 69.17 138.33
Width 6.0 12.0 12.0 24.0 24.0 48.0 48.0

Technical Data

Standard Modulus carbon fiber and epoxy laminate with a 0/90 orientation throughout. and a plain weave on the outside.

  • Glass Transition Temp (Tg): 402 F
  • Coefficient of thermal expansion, X-Y: 2.34 to 2.91

Structural Properties

  • @ Room Temperature
    • Flexural Strength: 121.9 ksi
    • Flexural Modulus: 8.9 Msi
  • @ 350 F
    • Flexural Strength: 49.8 ksi
    • Flexural Modulus: 7.4 Msi

Structural Properties after 100 cycles



  • @ Room Temperature
    • Flexural Strength: 122.8 ksi
    • Flexural Modulus: 9.1 Msi
  • @ 350 F
    • Flexural Strength: 58.7 ksi
    • Flexural Modulus: 8.1 Msi

*No warranty of fitness for a particular purpose are made. Values supplied here should be validated by testing in your specific application.

Tolerances

STOCK TOLERANCE SHEET

Download PDF

Contact Info
1/2" THICK PLATE - CARBON FIBER - HIGH TEMP (402F Tg) BALANCED - PLAIN WEAVE OUTER PLIES - PEEL PLY / PEEL PLY FINISH - 0.50 INCH
P/N PLATE-HT050-GROUP
