Rod - Rectangle/Strip - Pultruded Unidirectional - 0.019 x 0.118 x 96 Inches - BLOWOUT

Rod - Rectangle/Strip - Pultruded Unidirectional - 0.019 x 0.118 x 96 Inches - BLOWOUT image number 0
Rod - Rectangle/Strip - Pultruded Unidirectional - 0.019 x 0.118 x 96 Inches - BLOWOUT image number 0
P/N: R-REC-118-L96
Availability: 28

P/N: R-REC-118-L96
Availability: 28
1 - 6
$9.99
7 +
$5.99
Contact Info
Project Details
Quantity must be greater than 1.
or
Please select a valid length.
Precision of Measurement
Please select a tolerance option.
    • ~0.005 reduction on outer diameter (OD)."
    • This removes the outer cello wrap gloss finish.
    • Sand outer diameter to specified thickness.
    • Patterns will likely distort in appearance
    Please select a value within the allowed range.
    Sanding Tolerance Options:
    Please select a tolerance option.

If you are requesting bulk discounts, cutting, or standard sanding services only, we will send you a cart with your product selections. You may enter your shipping information and purchase directly at that time. Please note, the cart will not allow edits to the quote. Any changes will have to be completed by our team. If we do not have enough information to complete your quote we will reach out to you directly. If you are requesting additional services or custom sanding, a team member will reach out to you to finalize a quote.

If you request a custom length you will be charged for a full length item (or items if more than 1 is needed to meet your request) plus a cutting fee. You will then be shipped the item sized to your specification and any remaining length of the orginal item (drops). Sanding also incurs a fee which will be included in the quote. All items that have been sanded or cut may not be returned.

Description

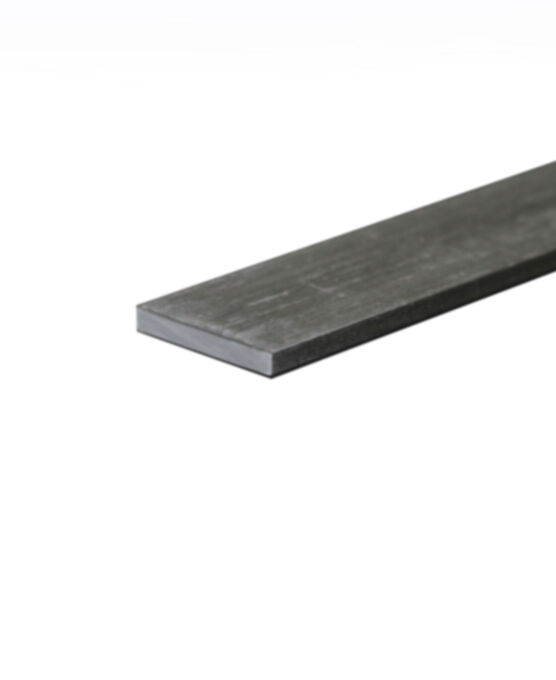

R-REC-118 Pultruded Solid Unidirectional Strip

Solid pultruded strips are great for reinforcing and strengthening small structures due to their flat surfaces. Like all other pultruded items Rock West offers, they perform incredibly well in bending and tension (pulling) applications since all the fibers are oriented along the length of the strip.

This strips features are:

  • 0.019" Thick
  • 0.118" Wide
  • 96" Long
  • smooth surface.

For detailed specifications please review the individual products technical tab.

Additional Information

P/N R-REC-118-L96
Application Bending / Tension
Finish Sanded Smooth Matte
Length 96
Materials Standard Modulus Carbon
Outside Dimension 0.019
Thickness 0.019
Weight 0.011
Width 0.118

Technical Data

Minimum Properties Solid Strip (Rectangle):

  • Tensile Strength: 320 ksi / 2.34 GPa
  • Compressive Strength: 270 ksi / 1.90 GPa
  • Fiber Volume: 65%
  • Matrix Material: Bisphenol Epoxy Vinyl Ester

Tolerances

Diameter Tolerance: +/- 0.007"

Contact Info
Rod - Rectangle/Strip - Pultruded Unidirectional - 0.019 x 0.118 x 96 Inches - BLOWOUT
P/N R-REC-118-L96
