Rod - Round - Pultruded Uni - 0.028 (0.7mm) x 78 inch (2m)

Rod - Round - Pultruded Uni - 0.028 (0.7mm) x 78 inch (2m) image number 0
Rod - Round - Pultruded Uni - 0.028 (0.7mm) x 78 inch (2m) image number 1
Rod - Round - Pultruded Uni - 0.028 (0.7mm) x 78 inch (2m) image number 0
Rod - Round - Pultruded Uni - 0.028 (0.7mm) x 78 inch (2m) image number 1
P/N: R-RND-028
Availability: 71

P/N: R-RND-028
Availability: 71
1 - 36
$9.99
37 - 97
$7.79
98 - 249
$6.59
250 - 499
$6.39
500 +
$6.19
Contact Info
Project Details
Quantity must be greater than 1.
or
Please select a valid length.
Precision of Measurement
Please select a tolerance option.
    • ~0.005 reduction on outer diameter (OD)."
    • This removes the outer cello wrap gloss finish.
    • Sand outer diameter to specified thickness.
    • Patterns will likely distort in appearance
    Please select a value within the allowed range.
    Sanding Tolerance Options:
    Please select a tolerance option.

If you are requesting bulk discounts, cutting, or standard sanding services only, we will send you a cart with your product selections. You may enter your shipping information and purchase directly at that time. Please note, the cart will not allow edits to the quote. Any changes will have to be completed by our team. If we do not have enough information to complete your quote we will reach out to you directly. If you are requesting additional services or custom sanding, a team member will reach out to you to finalize a quote.

If you request a custom length you will be charged for a full length item (or items if more than 1 is needed to meet your request) plus a cutting fee. You will then be shipped the item sized to your specification and any remaining length of the orginal item (drops). Sanding also incurs a fee which will be included in the quote. All items that have been sanded or cut may not be returned.

Description

This rod provides strength and rigidity along the long axis. This pultruded rod is great for reinforcing structures. The pultrusion process guarantees an accurate design and measurement control, perfectly aligned fibers and a smooth surface. Carbon fiber pultrusion is similar to the extrusion of aluminum and thermoplastics. However, instead of injection molding the plastic material, the pultrusion process continuously pulls fibers from rolls, which are then wetted with a matrix material (usually a thermosetting resin like epoxy resin). Subsequently, they are pulled through a heated die, which determines the shape of the profile. Polymerisation of the resin takes place in the die, forming a rigid profile with a diameter corresponding to that of the die and a length that is endless, in theory.


 Quick Facts For Pultruded Unidirectional Rods

Values provided here may vary slightly:

Resin: <40% High performance bisphenol A epoxy resin. Fiber: >60% Torayca T700 or equivalent Standard Tg: 248 °F Tensile strength (virgin fiber): 4900 Mpa Tensile modulus (virgin fiber): 230 Gpa Ultimate elongation: 2 %< Tensile strength at RT is ~2500 MPa. /p>

Additional Information

P/N R-RND-028
Application Bending / Tension
Finish Sanded Smooth Matte

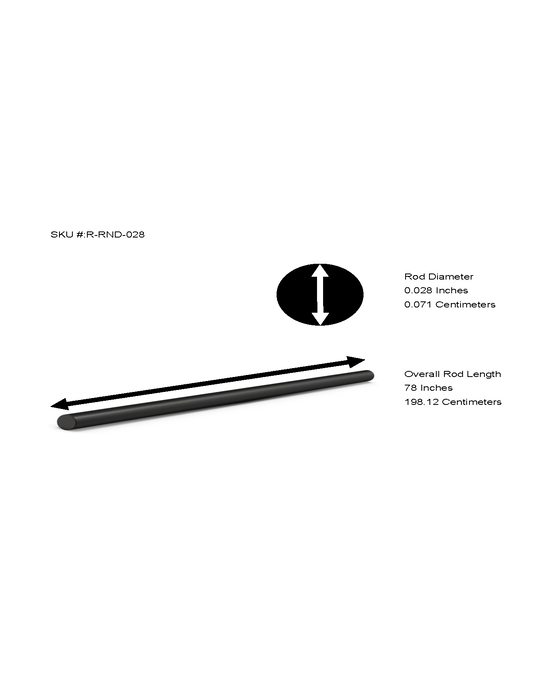

Length 78
Materials Standard Modulus Carbon
OD 0.028
Outside Dimension 0.028
Shape Round Rod
Weight 0.0026

Technical Data

We cannot supply test or strength data for this product.

Material Data Sheet

Download PDF



Tolerances

Diameter Tolerance: +/- 0.007"
