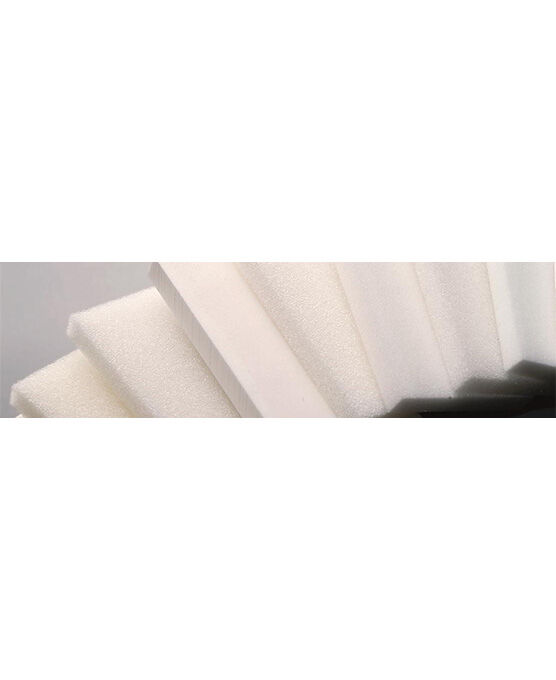

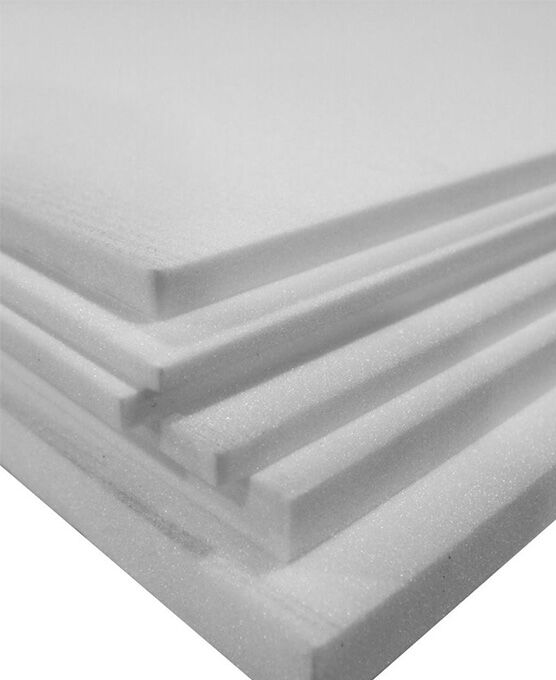

Rohacell - Foam Core - IGF 31kg/m^3 - 24 x 48 x 0.210 inch

Name: Rohacell - Foam Core - IGF 31kg/m^3 - 24 x 48 x 0.210 inch
SKU: roh-igf31-0210-24-d
Price: 119.99 USD
Availability: InStock

P/N: ROH-IGF31-0210-24-D

0.210" x 24" x 48" ◾ IGF 31kg/m^3

P/N: ROH-IGF31-0210-24-D

1 - 2

$119.99

3 - 7

$114.79

8 +

$109.79

Estimated lead time for quantities greater than what is Available Now is expected to be at least 4 weeks.

Please Call for availability

Rohacell - Foam Core - IGF 31kg/m^3 - 24 x 48 x 0.210 inch

Additional Information

Units:

Cell Size	0.01
Width	24.0
Thickness	0.21
Length	48
Length (max continuous)	48.0
Areal Density	0.034
Volumetric Density	0.00112
Weight	0.271

Engineering Properties

All laminate properties and mechanical calculations are based on Classical Lamination Theory and should be used as a reference only. Rock West Composites does not guarantee these properties or calculations.

Units:

Avg EX Young's Modulus	5220.0
Avg EY Young's Modulus	5220.0
GXY Shear Modulus	1885.0
X Tensile Yield Strength	58.0
X Compressive Yield Strength	58.0
XY Shear Strength	58.0

Note:

"X" is along the length of a tube, rod, plate, or panel.
"Y" is around the perimeter of a tube, perpendicular to the length of pultruded parts, or along the width of a plate or panel.

Rohacell - Foam Core - IGF 31kg/m^3 - 24 x 48 x 0.210 inch

0.210" x 24" x 48" ◾ IGF 31kg/m^3

Additional Information

Engineering Properties

Technical Data

IG/IGF Product Information

Safe Use Guidesheet

Dielectric Properties

Download PDF
